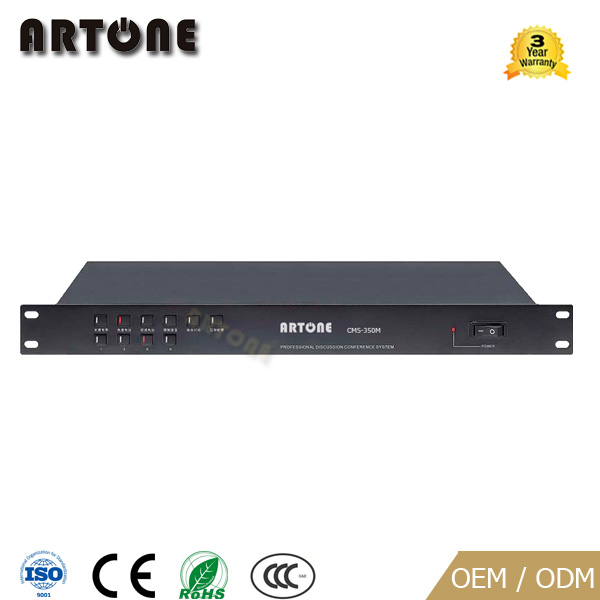

Conference Microphone System CMS-350M

Date: 2015-08-31   Clicked: 6112


Features

*The panel adopts buttons to control speaking mode and the number of speakers, breaking the traditional dial control.
*LED displays working mode and allowed speaking number.
*The number of speakers: 1, 3,6 and full opening( 4 forms can be chosen)
*6 meeting work modes:
chairman mode first in first out mode last in first out mode LIMIT mode FREE mode responder mode
*The host can connect 60 microphone units, it divide into 4 parallel outputs, each channel can connect 20 units.

*Equipped with audio parallel output and a 6.3 jack output, conference recording outputs and background music inputs interface.

Frequency response: AC 220V±10% 50Hz

Rated voltage: 100Hz-12.5Hz

Output impedance:

REC:200Ω LINE:200Ω

BALANCE: 300Ω

UNBALANCE: 400Ω

Input impedance: LINE:50KΩ PBIN:50KΩ

S /N Ratio: 100dB (1KHz THD1%)

Size: 480*44*220 mm

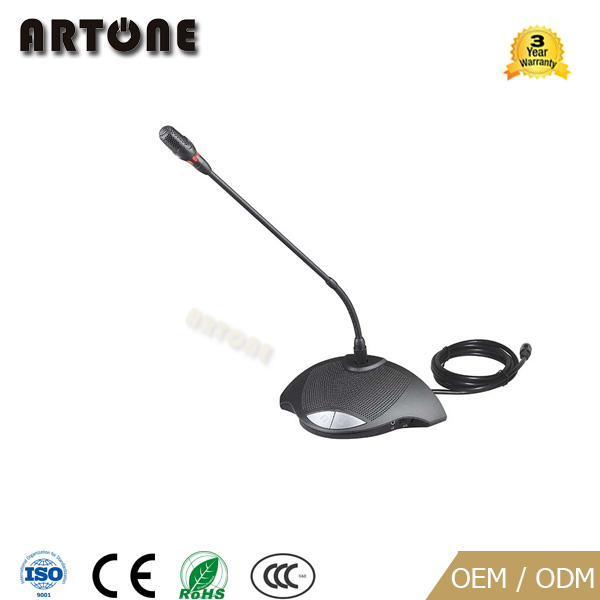

*Latest digital design.
*With microphone ,speaking button and indicator lamp that can show and control the state of speech.
*Whole plastic microphone shell.
*With a microphone unit connecting cable.
*Single projection; With Anti-gas sonic boom and wind shield.
*With Chairman priority key;could shut all the delegate unit.
*The chairman unit can be placed in any position in loop.
*The chairman unit is unrestricted by the limiting function.
*The chairman unit quantity is unrestricted in the loop.
*High sensitivity microphone.
*The power for units is supplied by the master controller at 9 safe voltage.
*Hand-in-hand connection method.
*With a microphone unit connecting cable 2.1m, 8P core line, convenient installation can increase efficiency.

Type: capacitance
Polar pattern: one direction
Frequency response: 30Hz-18KHz
Sensitivity:
-45±2dB@1KHz
Input voltage: DC 9V(powered by host)
Min input impedance: 1KΩ
S /N Ratio: 68dB
Output connector: 8P terminal
Input and output wire: 2.1M 8P shielded line
Mic length:425mm
Size:132*150*58mm
Weight:500g

Specification

Model No.

CMS-350M

Connection

60 Units

Output Impedance

REC:200Ω LINE:200Ω

BALANCE: 300Ω

UNBALANCE: 400Ω

S/N Ratio

100dB

Power Supply

AC 220V±10% 50Hz

Dimension

480*44*220 mm



Model No.

CMS-3504C/D

Frequency Response

30Hz~18KHz

Mic Type

capacitance

Polar Pattern

Uni-direction

Input Impedance

1KΩ (Min)

S/N Ratio

68dB

Power Supply

DC9V (powered by CMS-350M)

Dimension

132*150*58mm
