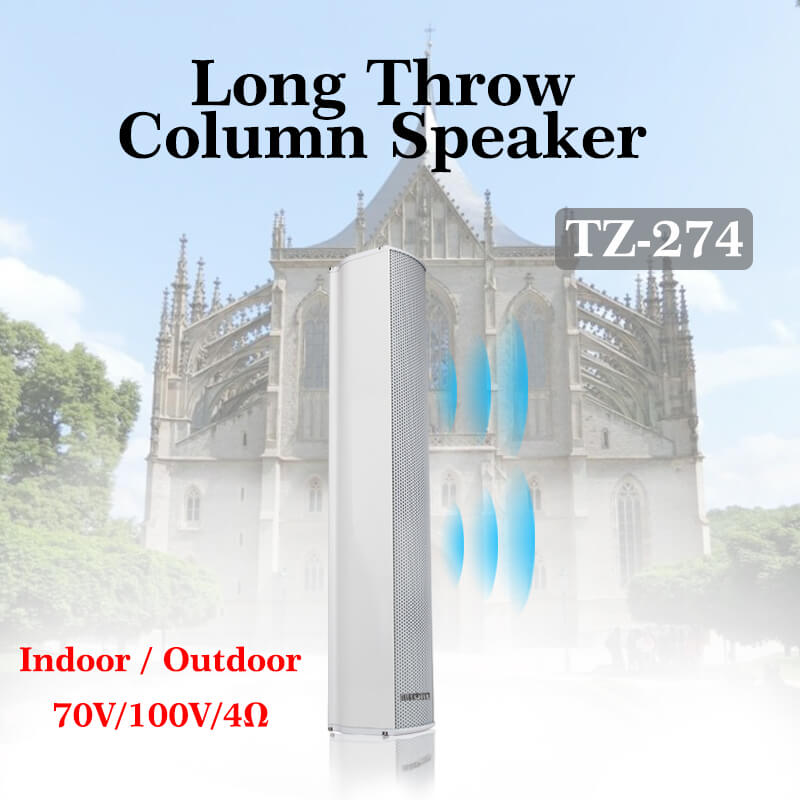

Pro 70V Outdoor Column Speaker PA for Church Sound System TZ-274

TZ-274 is a slimline professional audio column speaker for church sound system,it has adopt 3-inch full range speaker and add 1'' tweeter for best commercial and installed audio. ARTONE loudspeaker TZ-274 and TZ-278 produce high quality sound to both indoor and outdoor,compatible with 70V/100V/4ohm(8 ohm) audio, and apply to worship area (churches, mosques, temples,etc.).It not only give clear and bright sound to audience, also deliver long throw function to farther places. The column speaker TZ-274 is an essential item for set up high quality sound system, the angle is adjustable to change and lead sound directional to desired listening area.
  • Model:3-inch Column Speaker Sound system for church TZ-274
  • Power:30W/15W/7.5W/4Ω
  • Function:Slim line column speaker pa, 70v/100v/4Ω pro audio, weather-proof sound system, church sound
Details

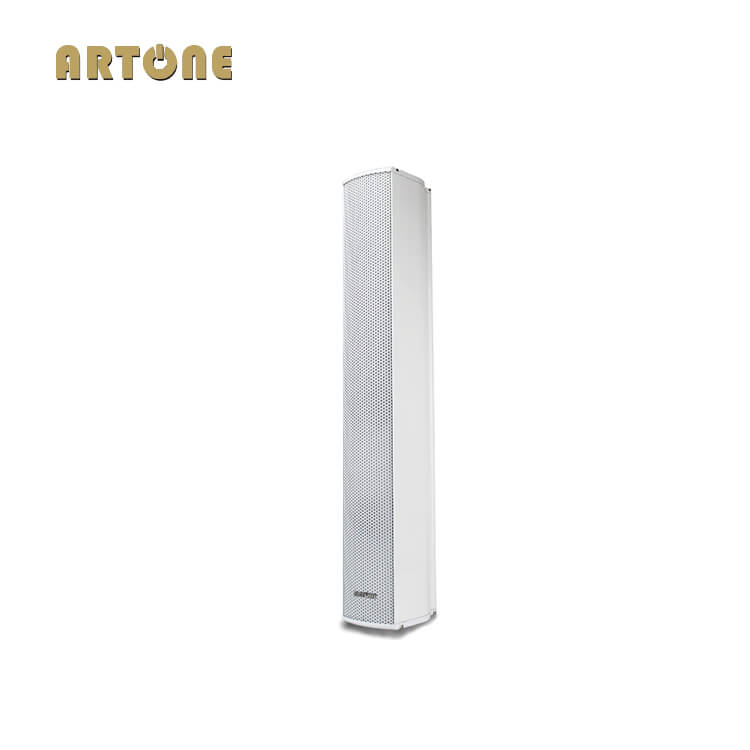

Professional Audio 70/100V Outdoor Slim Column Speaker PA System for Church Sound TZ-274 / TZ-278

Passive column speaker TZ-274 is a premium pro audio PA system for church sound, conference, hotel lobby, railway station indoor and outdoor applications.

The ARTONE public address loudspeaker TZ-274 consists of 4 full range speaker transducer and 1 tweeter, array assembled in durable aluminium cabinet, the sound reflex enhanced proper bass to sound system, balance music reproduction and outstanding voice both at high grade performance.


Features:

- Slim and compact design array-line proaudio column speaker;

- Full range 2.7-inch speaker transducer and 1-inch tweeter;

- Strong and durable aluminium alloy cabinet for indoor and outdoor sound system;

- High level professional audio system deliver clear sound and long throw distance;

- 70V and 100V high impedance allows PA speaker connects a numbers of loudspeaker for acoustic system;

- Power tapping switch to set the speaker into 30W, 15W, 7.5W and 4Ω power;

- Adjustable mounting kit to lead and direct sound to listening area.


Specification

Model No.

TZ-274

TZ-278

Line Voltage

70V/100V

Power Tapping

30W/15W/7.5W/4Ω

60W/30W/15W/8Ω

Handling Power

60W (max 200W)

120W (max 400W)

Speaker Driver

4 x 2.7’’ woofer + 1 x 1’’ tweeter

8 x 2.7’’ woofer + 2 x 1’’ tweeter

Frequency Response

100~20K Hz

90~20K Hz

Sensitivity (1w / 1m)

90 ± 3 dB

93 ± 3 dB

Max SPL

108 dB

114 dB

Material

Aluminium cabinet

Finish

Power Coated Black / White

Dimension

120 x 91 x 594 mm

120 x 91 x 1170 mm

Weight

3.95 kg

7.22 kg
