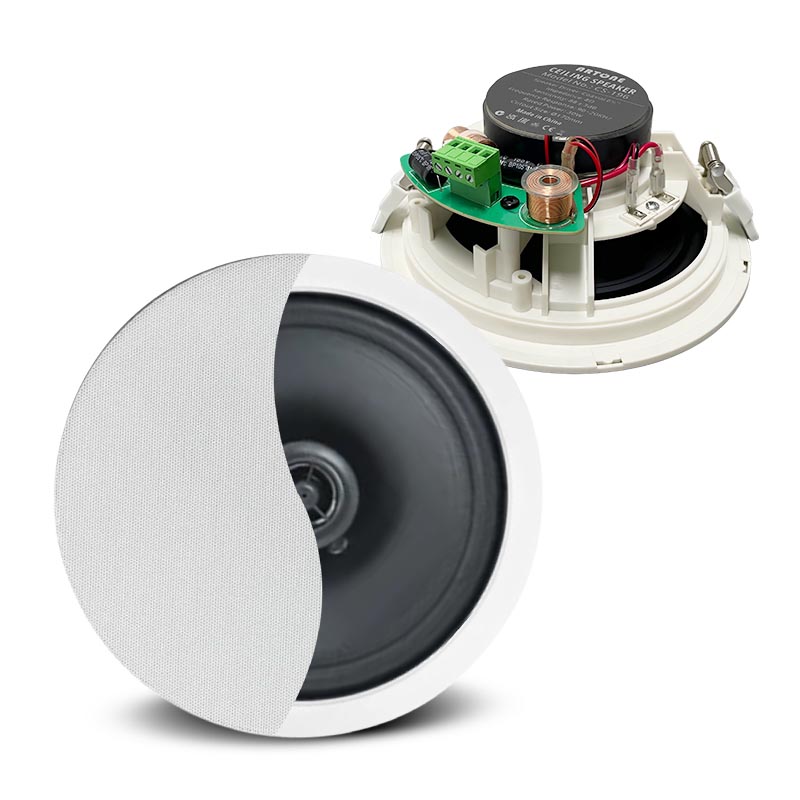

Frameless 2-way Coaxial 6.5'' Low Impedance 30W Ceiling Speaker CS-196

Frameless ceiling speaker CS-196 is a 2-way commercial audio and background music system. High power of 30W from 6.5-inch speaker is ideal for meeting room, conference, beauty salon, cafe store. It features of wide coverage, easy installation.
  • Model:Frameless 2-way Coaxial 6.5'' Low Impedance 30W Ceiling Speaker CS-196
  • Power:30W 8-ohm
  • Function:Frameless grille ceiling speaker, low impedance 8-ohm, coaxial 2-way 6.5'' ceiling speaker, easy wiring, crossover ceiling speaker
Details

Frameless 6.5'' Ceiling Speaker for Low Impedance Meeting Room & Background Music Audio System CS-196

The frameless ceiling speaker CS-196 is cost-effective 2-way sound system with low impedance 8-ohm to apply as many commercial and home audio environment as possible.
Fashion look of frameless grille, clean and simplify design allows background ceiling speaker CS-196 cut the budget while maintain high quality of performance.

6.5'' full range speaker and 1'' tweeter produces nominal power at 30W. Its handling power goes to max 50W. Sophiscated design crossover makes sound reproduction more accurate and stable. Easy wiring connection and installation-friendly can be achieved by the euroblock connector for series and parallel connect.


Features:

  • - Excellent sound quality with 2-way speaker for background music system and commercial audio;
  • - 6.5-inch full range woofer and 1-inch tweeter gives perfect audio reproduction and good for background music or speech;
  • - SPL (sound pressure level) 88dB;
  • - High power 30W with handling power up to 50W;
  • - Hi-fidelity low impedance 8 ohm input;
  • - Frameless speaker grille;
  • - 4-pin speaker cable connector of euroblock, easy for parallel and loop connection;
  • - Average coverage of dispersion, and balance sound given to high and low frequency;
  • - Ideal for home audio, beauty salon, cafe store, school and classroom, restaurants and shops, fitness or gym, etc.


Specification

Model Frameless Ceiling Speaker CS-196
RMS Power / Max Power 30W / 50W
Impedance
Speaker Driver 6.5'' + 1'' tweeter
Frequency Response 90Hz~20KHz
Sensitiviity (1W/1M)
88 dB
Connector
4-Pin euroblock
Cutout Size ⌀ 170 mm
Measurement ⌀ 188 x 80 mm
Weight 1.25 kg
