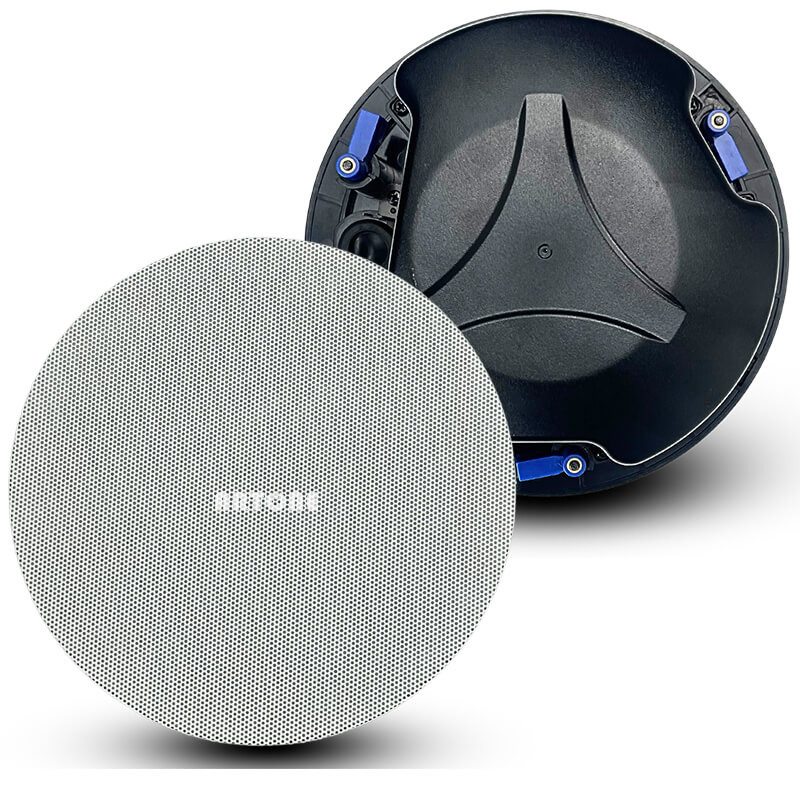

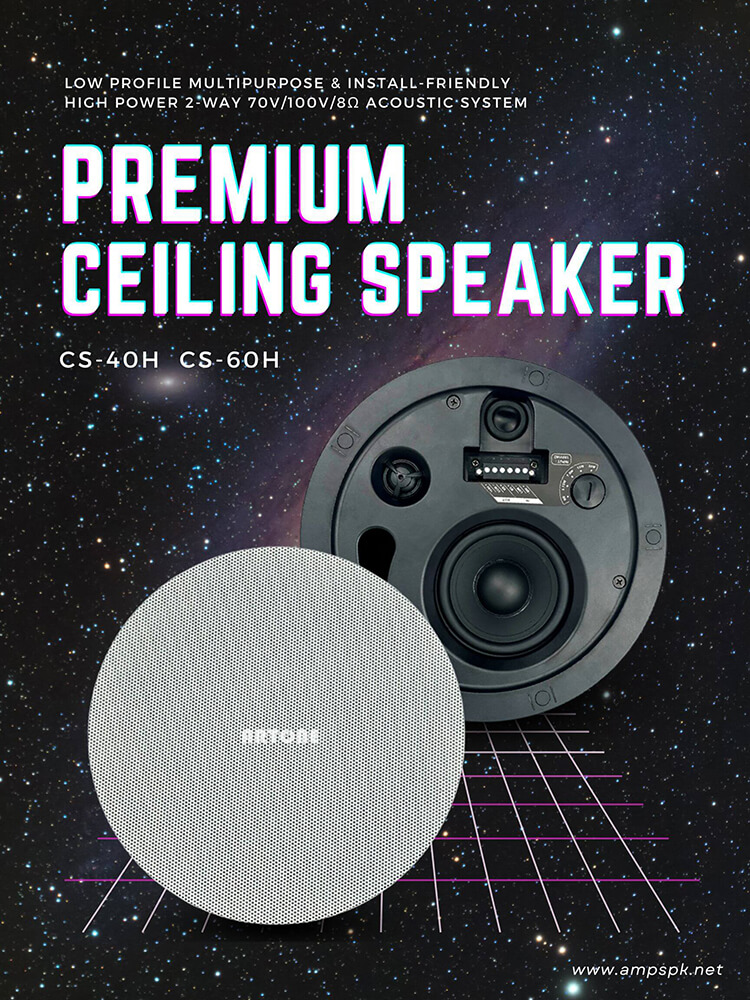

Large Power Low Profile Frameless Ceiling Speaker for Public Address and Meeting Conference CS-40H / CS-60H

60W ceiling speaker CS-60H is high quality 2-way PA system with low profile design to apply as many commercial audio environment as possible. It is compatible with 70V/100V public address needs and low impedance 8 ohm for multimedia, meeting room, conference or classroom applications.

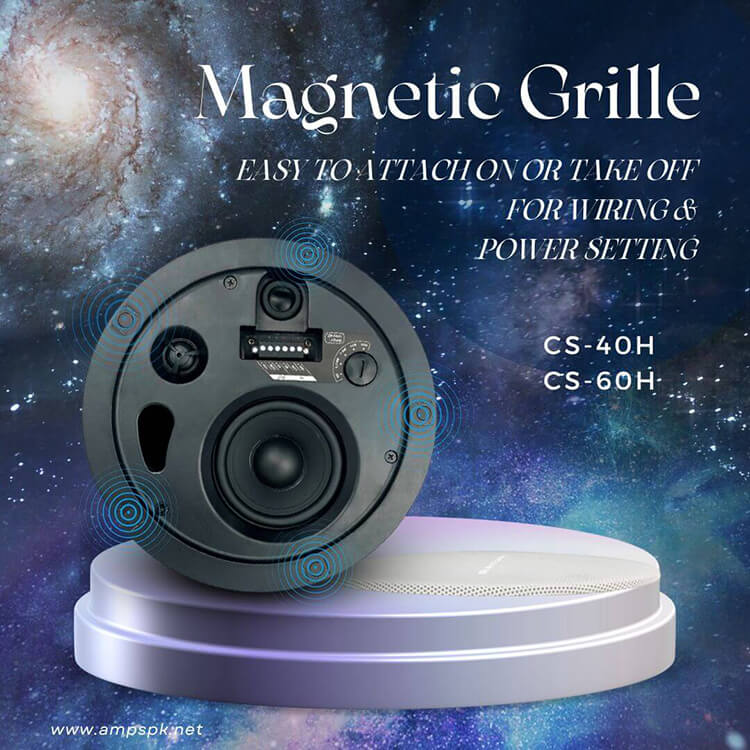

Fashion look of frameless grille, and magnetic attach to speaker makes CS-60H elegant ambient to entire decoration, and allows installer having convenient wiring or power/impedance adjustment work.

Adopting high quality 6.5'' LF speaker and 1'' HF tweeter produces nominal power at 60W, 30W/15W/7.5W is selectable from front of CS-60H's power tapping switch. Its handling power goes up to 160W. Special design scheme can prevent or avoid damage to speaker when connected incorrect, friendly to people DIY or amatuer in installation of sound system.

Features:

• - Large power with 2-way speaker for meeting room, conference, public address system or commercial audio;
• - 6.5-inch full range woofer and HF 1-inch tweeter gives perfect audio reproduction and good for background music or speech;
• - Wide sound coverage 100°~110° and high SPL (sound pressure level) 90~118 dB;
• - High power 60W with handling power up to 180W, power tapping 60w/30w/15w/7.5w;
• - Compatible with 70v/100v and low impedance 8 ohm system;
• - Frameless magnetic speaker grille attach to surface;
• - 6-pin speaker cable connector at front side, easy for parallel and loop connection;
• - Special scheme design for protection of speaker wiring;
• - Plastic rear cover of ceiling speaker prevent damaged in long use, and increase bass with sound reflex;
• - Ideal for school and classroom, lecture hall, restaurants and shops, building emergency EVAC system, fitness or gym stores, etc.
