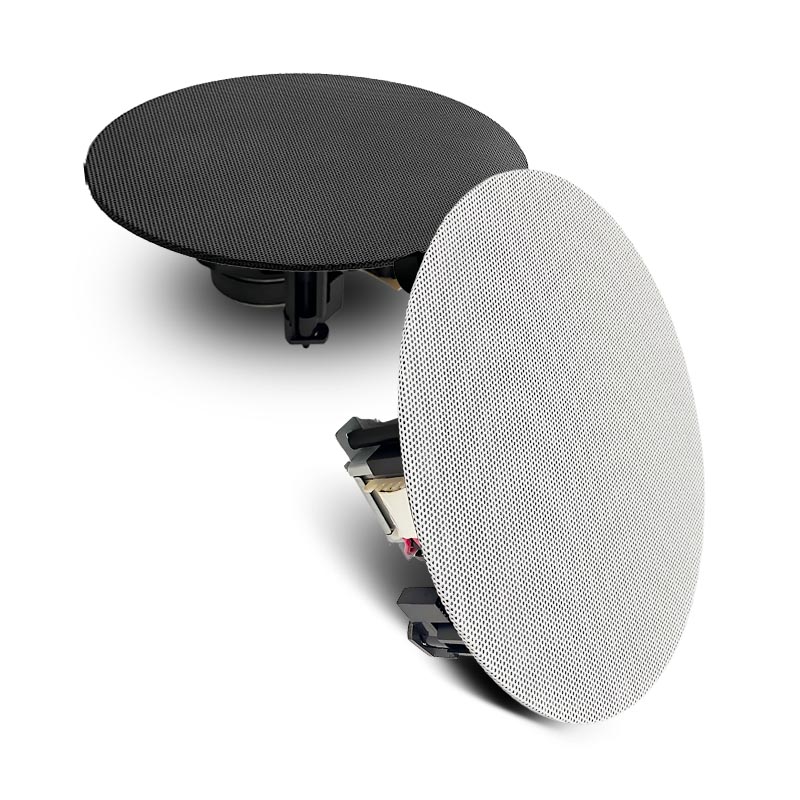

100V/8Ohm Commercial Audio 5-inch 6-inch 8-inch Frameless Grill 2-way Ceiling Speaker CS-25Z CS-26Z CS-28Z

The frameless ceiling speaker CS-25Z, CS-26Z and CS-28Z is wide dispersion sound system, designed in ABS material, with 5.25 inch, 6.5 inch and 8 inch woofer and 1'' tweeter, rated power 30W, 40W and 50 Watts, use for commercial audio system or public address system (pa system) of input voltage 100 volt and 8 ohm. Fast installation with 3 dog ear clamps. It is durable and practical and very competitive to satisfy sound system, cater for pro and amateur installers.

Features

- 2-way speaker 5.25’’ (CS-25Z) / 6.5’’ speaker (CS-26Z) / 8’’ speaker (CS-28Z);

- Rated power 30 Watts (CS-25Z), 40 Watts (CS-26Z), 50 Watts (CS-28Z);

- Input voltage 100 Volt and 8 ohm;

- Sensitivity 88dB  (CS-25Z) / 89dB (CS-26Z) / 90dB (CS-28Z);

- Frequency Response 100~20KHz  (CS-25Z) / 70~20KHz (CS-26Z) / 50~20KHz (CS-28Z)

- Ceiling mount speaker, dog ear clamp mounting;

- ABS material with magnetic frameless surface;

- Cutout size 200mm  (CS-25Z) / 245mm (CS-26Z) / 280mm (CS-28Z)

- Dimension 240 x 85mm (CS-25Z) / 282 x 90mm (CS-26Z) / 320 x 110mm (CS-28Z)

Specification
