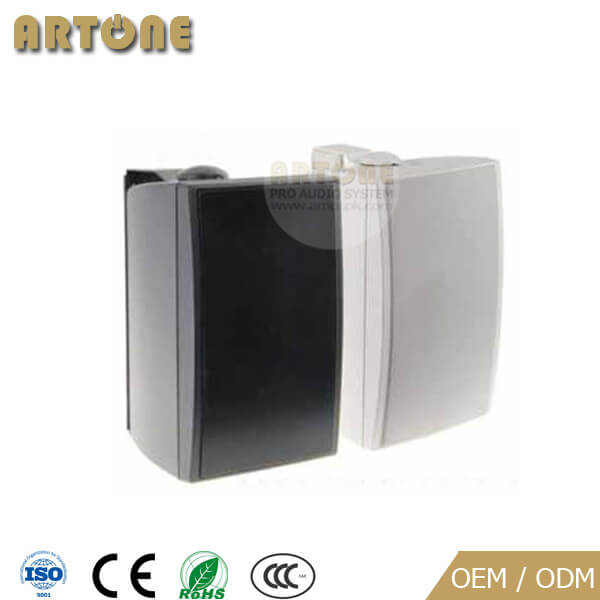

Outdoor PA Wall Speaker 20W Power Taps for Waterproof School Public Address System BS-544

Outdoor 2-way wall mount pa speaker BS-544 for indoor or exterior sound system, designed in durable ABS body, with 4 inch woofer and 1 inch tweeter, rated power 20 Watts, use for commercial audio system or school public address system (pa system) of input voltage 100 volt and power tabs at 1/2, 1/4 power or 8Ω. Fast installation wall mounting bracket and angle adjustable. Black and white color for option. It is durable and practical and very competitive to satisfy medium or high level architectural sound system.
  • Model:Outdoor Wall Speaker for Exterior Waterproof PA System BS-544
  • Power:Power Taps 100V 20W, 10W, / 8 ohm
  • Function:Outdoor and waterproof PA speaker, power taps 100V/8ohm
Details

Outdoor 2-way wall mount pa speaker BS-544 for indoor or exterior sound system, designed in durable ABS body, with 4 inch woofer and 1 inch tweeter, rated power 20 Watts, use for commercial audio system or school public address system (pa system) of input voltage 100 volt and power tabs at 1/2, 1/4 power or 8Ω. Fast installation wall mounting bracket and angle adjustable. Black and white color for option. It is durable and practical and very competitive to satisfy medium or high level architectural sound system.


Features

  • 4’’ woofer and 1’’ tweeter;
  • Rated power 20 Watts, max power 40 Watts;
  • Input voltage 100 Volt, power tabs at 1/2, 1/4 power or 8Ω;
  • Sensitivity 86±3 dB;
  • Frequency Response 100~18KHz
  • Wall mount speaker with strong bracket;
  • Strong ABS material body;
  • Dimension 133x135x215mm
  • Weight:2.3kg


Specification

Model No.

BS-544

Rated Power / Max Power

20W / 40W

Speaker

4’’ woofer + 1’’ tweeter

Input Voltage

100V Line and power tabs at 1/2, 1/4 power or 8Ω

Sensitivity

87±3dB

Frequency Response

90-19KHz

Mounting Method

Outdoor wall mounting speaker for background music

Colour

Black / White

Dimension

133 x 135 x 215 mm

Weight

2.3 kg
