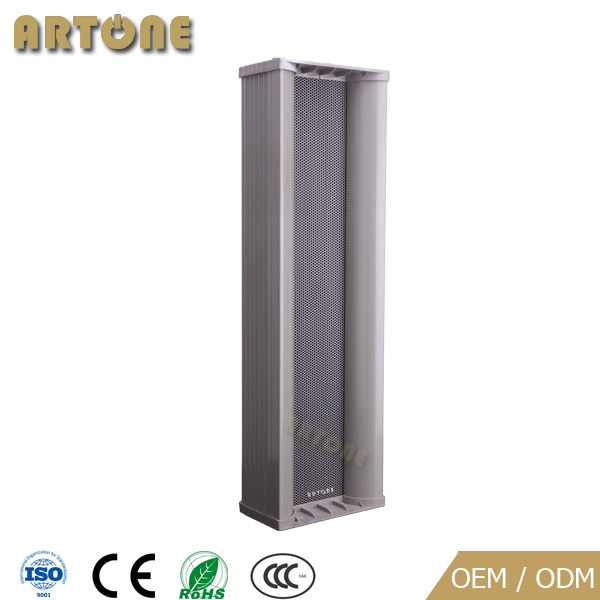

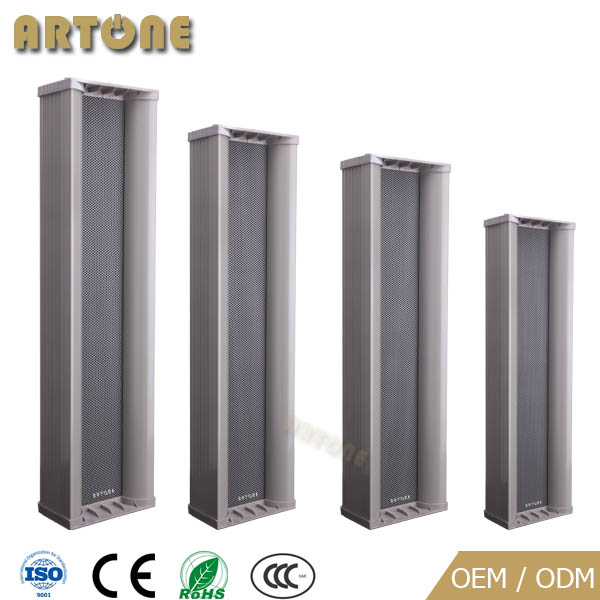

Column speaker, designed in fashion style and made of aluminium material for outdoor/indoor use, built-in 70V/100V transformer. The column speakers use with 4-inch woofer x 1/2/3/4 pieces and one 1-inch tweeter speaker, rated power 15W, 25W, 35W and 45 Watts, use for commercial audio system or public address system (pa system) of input voltage 70/100 volt. Fast installation with strong mounting bracket. It is durable and practical and very competitive to satisfy various application of sound system.
Features
l 4’’x1+1’’ (TZ-415) / 4’’x2+1’’ speaker (TZ-425) / 4’’x3+1’’ speaker (TZ-435) / 4’’x4+1’’ speaker (TZ-445);
l Rated power 15 Watts (TZ-415), 25 Watts (TZ-425), 35 Watts (TZ-435) , 45 Watts (TZ-445);
l Input voltage 70/100 Volt;
l Sensitivity 85dB (TZ-415) / 86dB (TZ-425) / 87dB (TZ-435) / 88dB (TZ-445);
l Frequency Response 140~18KHz (TZ-415) / 130~18KHz (TZ-425) / 120~18KHz (TZ-435) / 100~18KHz (TZ-445)
l Mounting speaker, strong mounting bracket;
l Aluminium material body, grey color;
l Dimension 295x151x125mm (TZ-415) / 370x151x125mm (TZ-425) / 500x151x125mm (TZ-435) / 610x151x125mm (TZ-445)
Specification
Model No. |
TZ-415 |
TZ-425 |
TZ-435 |
TZ-445 |
|||
Rated Power |
15W |
25W |
35W |
45W |
|||
Speaker |
4’’wooferx1+1’’tweeter |
4’’wooferx2+1’’tweeter |
4’’wooferx3+1’’tweeter |
4’’wooferx4+1’’tweeter |
|||
Input Voltage |
70V/100V Line |
||||||
Sensitivity |
86 dB |
87 dB |
88 dB |
89 dB |
|||
Frequency Response |
140-20KHz |
130-20KHz |
120-20KHz |
100-20KHz |
|||
Mounting Method |
Mounting bracket |
||||||
Color |
Grey |
||||||
Dimension |
295x151x125mm |
370x151x125mm |
500x151x125mm |
610x151x125mm |
|||
Weight |
1.8 kg |
2.6 kg |
3.8 kg |
5 kg |
