Features:

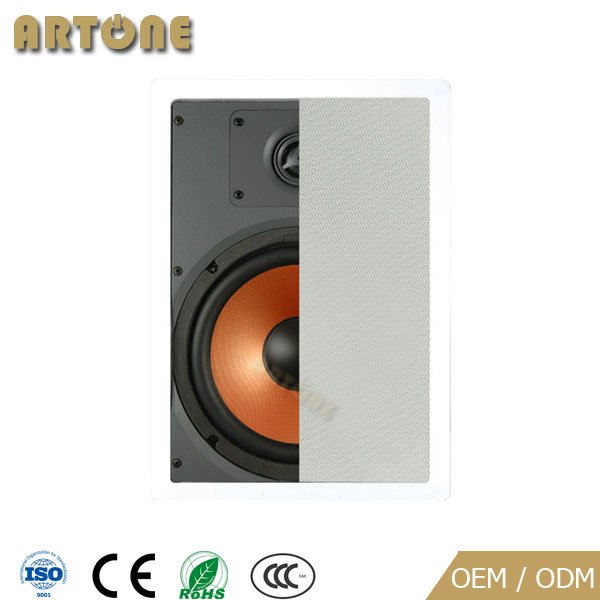

Ceiling speaker HW-550C & HW-650C & HW-850C is a rectangular high quality 2-way hifi inceiling speaker, designed in 5-1/4'' & 6-1/2’’ & 8’’ woofer with 1’’ tweeter, use top selected material of polypropylene woofer and silk tweeter is able to take strong power from amplifier and express original sound. The state-of-art crossover makes perfect frequency separation to woofer and tweeter. The speaker power at 25W & 35W & 45W @ 8Ω, and handling power max to 80W & 100W & 125W, frequency response 60-20KHz & 50-20KHz & 40-20KHz, sensitivity 89dB & 90dB & 91dB (1W/1M), cutout size 244 & 274 & 323 mm, it is ideal speaker for use in background music application, multiroom audio system, inceiling/inwall decoration, home cinema, home av integration, meeting room/conference room audio purpose, etc.
Specification
Item No. |
HW-550C |
HW-650C |
HW-850C |
Woofer |
5.25’’ Polypropylene Woofer |
6.5’’ Polypropylene Woofer |
8’’ Polypropylene Woofer |
Tweeter |
1’’ silk Tweeter |
1’’ silk Tweeter |
1’’ silk Tweeter |
Impedance |
8Ω |
8Ω |
8Ω |
Handing Power |
25W |
35W |
45W |
Frequency Response |
60Hz~20KHz |
50Hz~20KHz |
40Hz~20KHz |
Sensitivity (1W/1m) |
89 dB |
90 dB |
91 dB |
Cutout Size |
244 mm |
274 mm |
323 mm |
