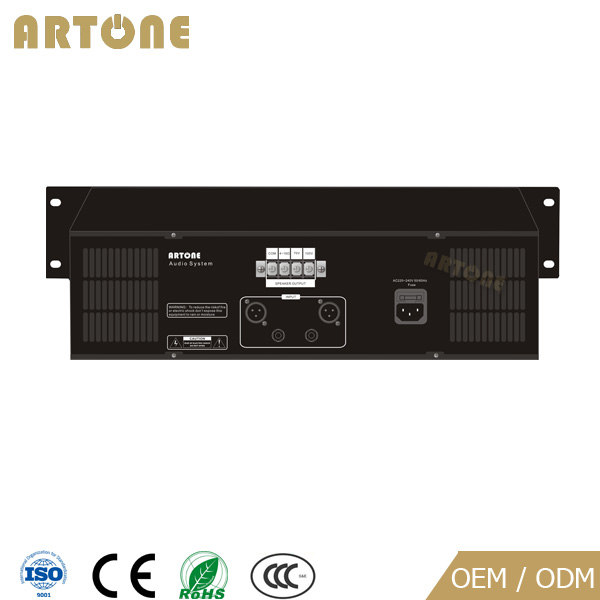

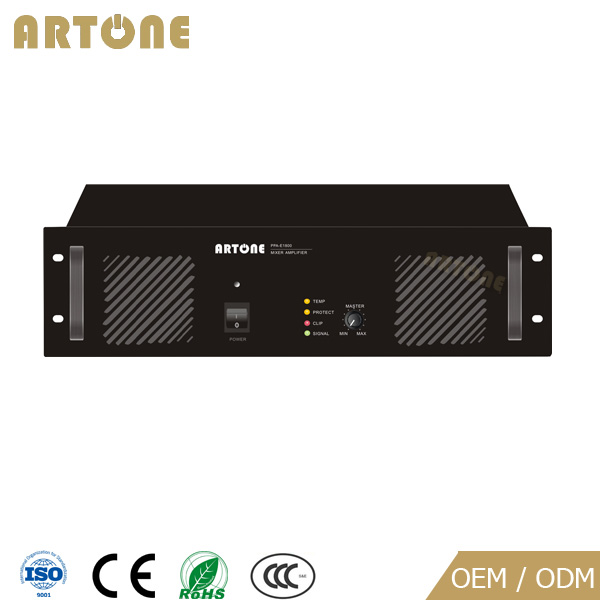

PPA-E1012 public address 1200w power amplifier

1200w power amplifier
  • Model:PPA-E1012
  • Power:1200w
  • Function:power amplifier
Details

PPA-E1240 PPA-E1360 PPA-E1500 PPA-E1650 PPA-E1800 PPA-E1010 PPA-E1012 PPA-E1015 PPA-E1020

PA Power Amplifier 240W~2000W is the most cost-effective choice for sound system. It is 19’’ rack mountable design with hand holder. Volume control for audio output in 4-16 ohm, 70V and 100V with full protection of shortcircuit, overload, overheat.

Features

l  Reliable pa power amplifier power range from 240W~2000W;

l  Volume control for power output;

l  RCA, XLR audio input;

l  4~16 ohm, 70V, 100V speaker output;

l  Aluminium front panel, metal case;

l  19’’ rack mount design with hand holder;

l  LED indicator, Shortcircuit, over heat, over load protection;

Specification

Model No.

PPA-E1240

PPA-E1360

PPA-E1500

PPA-E1650

PPA-E1800

PPA-E1010

PPA-E1012

PPA-E1015

PPA-E1020

Power

240W

360W

500W

650W

800W

1000W

1200W

1500W

2000W

Speaker Output

4-16Ω, 70V100V

AUX Output

600 ohms  (Ω)/1V(0dBV)

Mic Input

600 ohms  (Ω),10mV(-54dBV), Unbalance

Line Input

10K ohms(Ω), 250(-10dBV), Unbalance

Frequency Response

60Hz~18KHz

Distortion

0.1% at 1KHz,1/3 power output

S/N

Line70dB, Mic66dB

Tone Adjustment

BASS:±10dB (100Hz),TREBLE:±10dB (10KHz)

Protection

AC FUSE ; DC VOLTAGE, OVERLOAD AND SHORT CIRCUIT

Power

AC 220~240V/50~60Hz

Fuse

7A

8A

10A

10A

12A

15A

16A

20A

40A

Size

485×400×88mm

485×464×132mm

Weight

14 Kg

16 Kg

18 Kg

19.5 Kg

24.5 Kg

25.5 Kg

30.5 Kg

31.5 Kg

33 Kg
