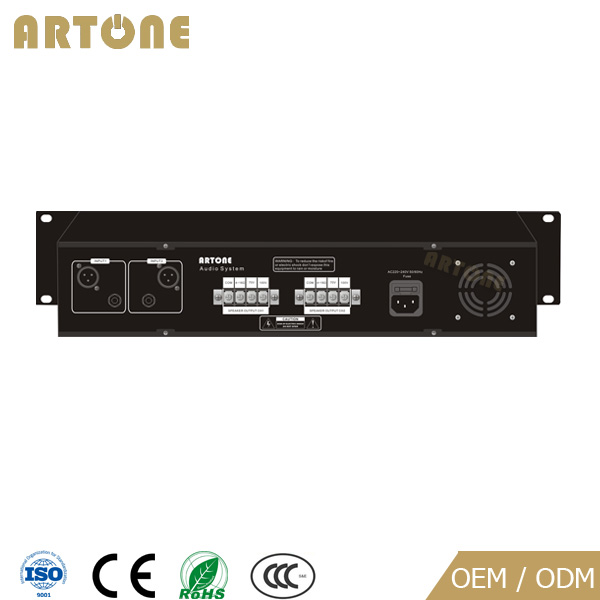

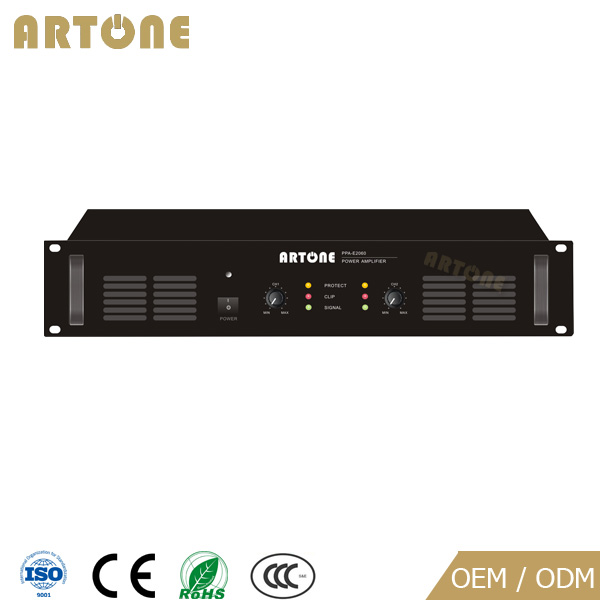

PPA-E2360 public address 360w two channel power amplifier

360w two channel power amplifier
  • Model:PPA-E2360
  • Power:360w
  • Function: two channel power amplifier
Details

PPA-E2060 PPA-E2120 PPA-E2180 PPA-E2240 PPA-E2300 PPA-E2360

 PA 2 Channel Power Amplifier is the most cost-effective choice for commercial sound system. It is 19’’ rack mountable design with hand holder. 2 channel volume independent control for power output. The output in 4-16 ohm, 70V and 100V with full protection of shortcircuit, overload, overheat and clip limiter.

Features

l  Reliable 2 channel power amplifier power range from 60W x 2 ~360W x 2;

l  Volume control for 2 separated channel power output;

l  2 channel RCA / XLR audio input;

l  4~16 ohm, 70V, 100V speaker output;

l  Aluminium front panel, metal case;

l  19’’ rack mount design with hand holder;

l  LED indicator, Shortcircuit, over heat, over load protection and clip limiter;

Specification

Model No.

PPA-E2060

PPA-E2120

PPA-E2180

PPA-E2240

PPA-E2300

PPA-E2360

Power

60W X 2

120W X 2

180W X 2

240W X 2

300W X 2

360W X 2

Speaker Output

4-16Ω, 70V100V

AUX Output

600 ohms  (Ω)/1V(0dBV)

Mic Input

600 ohms  (Ω),10mV(-54dBV), Unbalance

Line Input

10K ohms(Ω), 250(-10dBV), Unbalance

Frequency Response

60Hz~18KHz

Distortion

0.1% at 1KHz,1/3 power output

S/N

Line70dB, Mic66dB

Tone Adjustment

BASS:±10dB (100Hz),TREBLE:±10dB (10KHz)

Protection

AC FUSE ; DC VOLTAGE, OVERLOAD AND SHORT CIRCUIT

Power

AC 220~240V/50~60Hz

Fuse

5A

7A

10A

10A

12A

15A

Weight

11 Kg

13 Kg

15 Kg

18 Kg

25 Kg

28 Kg

Size

485×400×88mm
