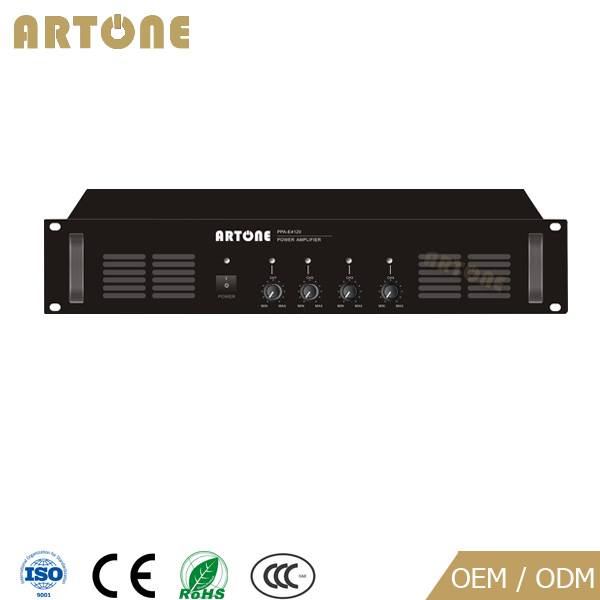

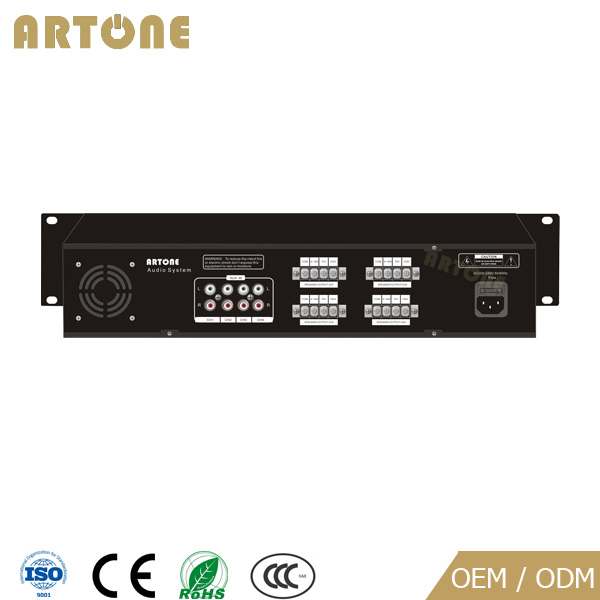

PPA-E4180 public address 180w four channel power amplifier

180w four channel power amplifier
  • Model:PPA-E4180
  • Power:180wx4
  • Function: four channel power amplifier
Details

PPA-E4060 PPA-E4120 PPA-E4180 PPA-E4240

 PA 4 Channel Power Amplifier is the most cost-effective choice for commercial sound system. It is 19’’ rack mountable design with hand holder. 4 channel volume independent control for power output. The output in 4-16 ohm, 70V and 100V with full protection of shortcircuit, overload, overheat and clip limiter.

Features

l  Reliable 4 channel power amplifier power range from 60W x 4 ~240W x 4;

l  Volume control for 4 separated channel power output;

l  4 channel RCA audio input;

l  4~16 ohm, 70V, 100V speaker output;

l  Aluminium front panel, metal case;

l  19’’ rack mount design with hand holder;

l  LED indicator, Shortcircuit, over heat, over load protection and clip limiter;

Specification

Model No.

PPA-E4060

PPA-E4120

PPA-E4180

PPA-E4240

Power

60W X 4

120W X 4

180W X 4

240W X 4

Speaker Output

4-16Ω, 70V100V

AUX Output

600 ohms  (Ω)/1V(0dBV)

Mic Input

600 ohms  (Ω),10mV(-54dBV), Unbalance

Line Input

10K ohms(Ω), 250(-10dBV), Unbalance

Frequency Response

60Hz~18KHz

Distortion

0.1% at 1KHz,1/3 power output

S/N

Line70dB, Mic66dB

Tone Adjustment

BASS:±10dB (100Hz),TREBLE:±10dB (10KHz)

Protection

AC FUSE ; DC VOLTAGE, OVERLOAD AND SHORT CIRCUIT

Power

AC 220~240V/50~60Hz

Fuse

7A

10A

12A

16A

Weight

13 Kg

18 Kg

19.5 Kg

22 Kg

Size

485×400×88mm
