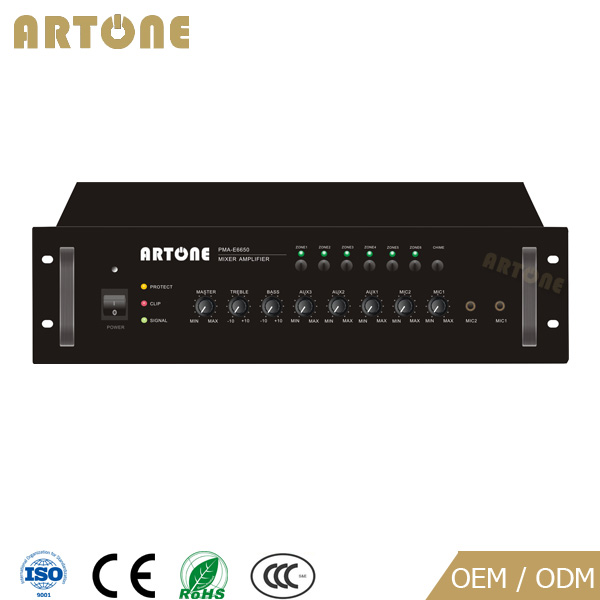

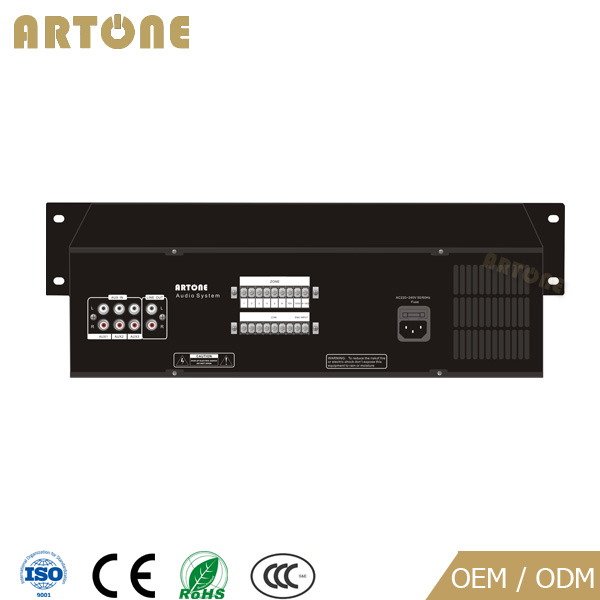

PMA-E6500 public address 500w 6 zone amplifier

500w 6 zone amplifier
  • Model:PMA-E6500
  • Power:500w
  • Function: 6 zone amplifier
Details

PMA-E6060 PMA-E6120 PMA-E6180 PMA-E6240 PMA-E6300 PMA-E6360 PMA-E6500 PMA-E6650

 PA Mixer Amplifier is the most cost-effective choice for 6 zone sound system. It is 19’’ rack mountable design with hand holder. 2 MIC inputs, 3 AUX inputs and 1 line output. Volume control for MIC inputs, AUX inputs, bass, treble and main volume. MIC1 prior to other audio inputs. 6 zone switches control on/off. The output in 4-16 ohm, 70V and 100V with fully protection of shortcircuit, overload, overheat.

Features

l  Reliable 6 zones pa mixer amplifier power range from 60W~650W;

l  Treble, bass, microphone volume control;

l  6 zone switches to control on/off;

l  2 Microphone inputs (6.3 jack), 3 RCA AUX inputs, 1 Line out;

l  MIC1 has top priority to mute other audio inputs;

l  4~16 ohm, 70V, 100V speaker output;

l  Aluminium front panel, metal case;

l  19’’ rack mount design with hand holder;

l  LED indicator, Shortcircuit, over heat, over load protection;

Specification

Model No.

PMA-E6060

PMA-E6120

PMA-E6180

PMA-E6240

PMA-E6300

PMA-E6360

PMA-E6500

PMA-E6650

Power

60W

120W

180W

240W

300W

360W

500W

650W

Speaker Output

4-16Ω, 70V100V

AUX Output

600 ohms  (Ω)/1V(0dBV)

Mic Input

600 ohms  (Ω),10mV(-54dBV), Unbalance

Line Input

10K ohms(Ω), 250(-10dBV), Unbalance

Frequency Response

60Hz~18KHz

Distortion

0.1% at 1KHz,1/3 power output

S/N

Line70dB, Mic66dB

Tone Adjustment

BASS:±10dB (100Hz),TREBLE:±10dB (10KHz)

Protection

AC FUSE ; DC VOLTAGE, OVERLOAD AND SHORT CIRCUIT

Power

AC 220~240V/50~60Hz

Fuse

5A

5A

8A

8A

10A

10A

12A

15A

Size

485×340×88mm

485×400×88mm

Weight

8 Kg

8.5 Kg

10 Kg

12 Kg

15 Kg

16 Kg

17.5 Kg

19.5 Kg
