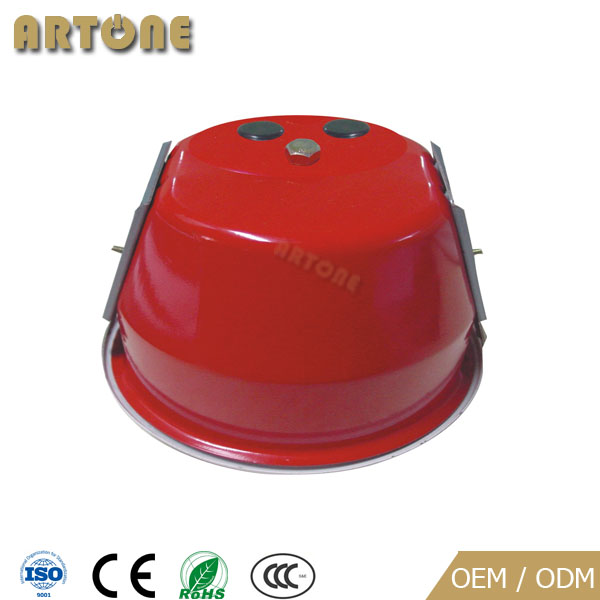

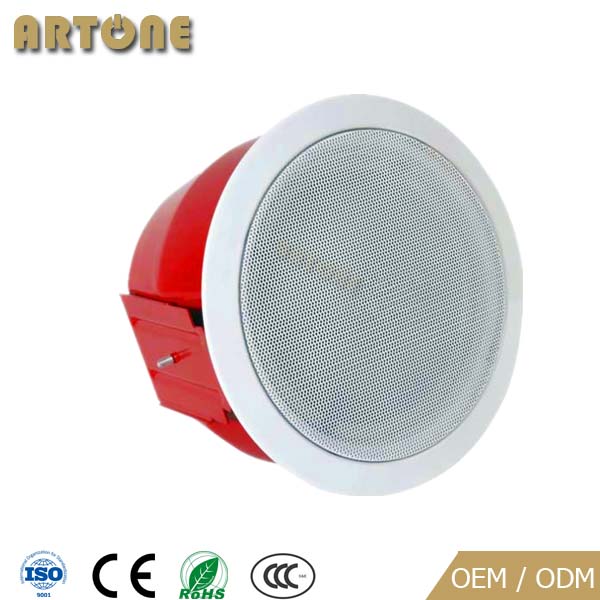

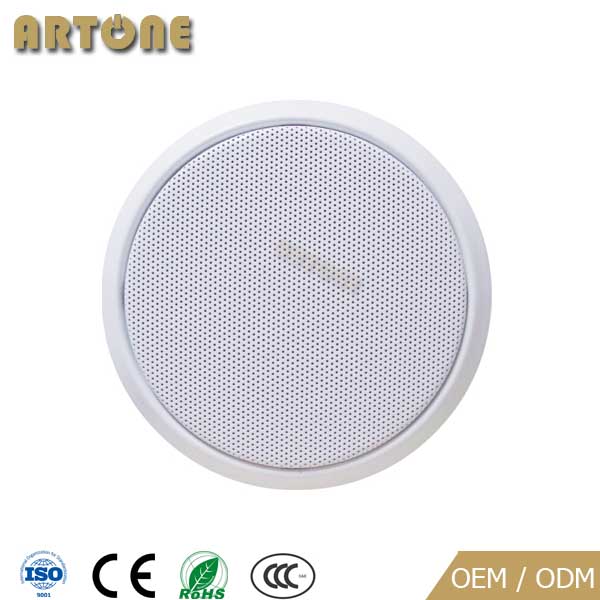

Fireproof ceiling speaker, designed in metal body and rear enclosure, with full range 5 inch, 6 inch and 8 inch speaker, rated power 6-10 Watts, use for commercial audio system or public address system (pa system) of input voltage 100 volt. Fast installation with 2 clamps. It is durable and practical and very competitive to satisfy small or medium sound system at low budget.

Features

Full range 5’’ (CS-EN545) / 6’’ speaker (CS-EN546) / 8’’ speaker (CS-EN548);

Rated power 6 Watts (power tabs 1/2, 1/4), max power 10 Watts;

Input voltage 100 Volt;

Sensitivity 92dB;

Frequency Response 130~15KHz  (CS-EN545) / 120~18KHz (CS-EN546) / 110~18KHz (CS-EN548)

Ceiling mount speaker, clamps fixture;

Metal material body and metal fireproof dome;

Cutout size 160mm  (CS-EN545) / 204mm (CS-EN546) / 230mm (CS-EN548)

Dimension 180 x 133mm (CS-EN545) / 230 x 133mm (CS-EN546) / 270 x 133mm (CS-EN548)

Specification
