Features
*8 channels. Fixed frequency;
Quartz crystal
* VHF Frequency 190MHz~280MHz
* Support 2 groups or 16 Mics use simultaneously

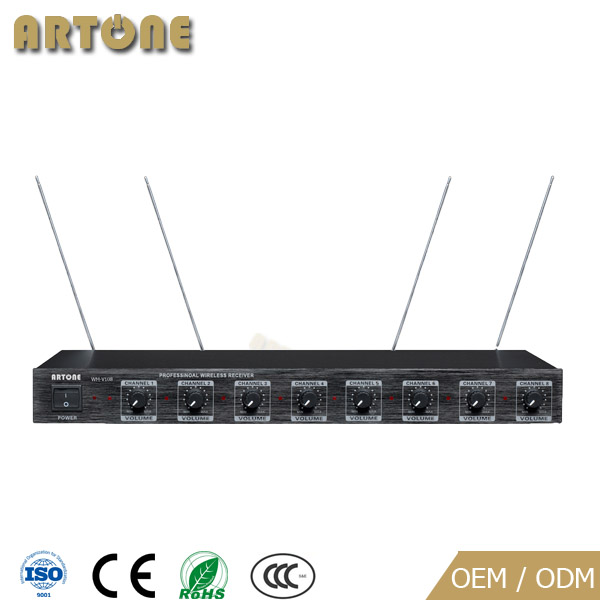

*Front panel ：each channel has a
red RF lamp to indicate the signal.
*Back panel ：4 pull rod antennas
for signal receiving.
*Back-panel ：2 balanced output and
1 mixed unbalanced output.
*Microphone power consumption is 60mA. With a 9V
battery power supply,work constantly for 5 hours.
*Light ring on the mic head display working
status.
*Working distance: 30-70meter.
* It's suitable for various kinds of conference
and performance occasion.
Specification
|
Model No. |
WM-V108 |
|
Channel |
8 Channel |
|
Mode |
Quartz Crystal |
|
Frequency FM |
VHF 190~280 MHz (2 groups) |
|
Audio Output |
2 balanced output and 1 mixed unbalanced output |
|
Frequency Stability |
Receiver ±0.001% / Mic: ±25KHz |
|
S/N Ratio |
>105dB |
|
THD |
<0.5%@1KHz |
|
Power Supply |
Receiver DC12~17V / Transmitter Mic 9V |
|
Mic Type |
Capacitance |
|
Mic Polar Pattern |
Uni-directivity |
|
Power Consumption |
Receiver 3W / Transmitter Mic 30mA |
|
Mic Output |
10mW |
|
Mic Battery |
5 hours |
|
Cover Distance |
30 ~ 70 meter |
|
Frequency Response |
40~20KHz |
|
Dimension |
Receiver 420 x180x44 / 480x180x44mm (w rackmount kit) |
|
Weight |
Receiver 1.9 KG / Mic 390g |
