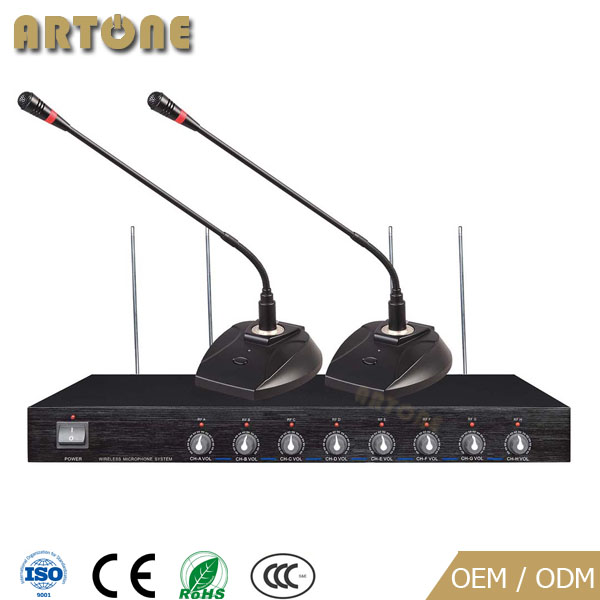

Conference System 8 Channel VHF Wireless Microphone CMS-V108

  • Model:CMS-V108
Details

Features

*8 channels. Fixed frequency.

*2 controllers can used simultaneously.

*Front panel each channel has a red RF lamp to indicate the signal.

*Back panel 4 pull rod antennas for signal receiving.

*Back-panel 2 balanced output and 1 mixed unbalanced output.

*Microphone power consumption is 30mA. With a 9V battery power supply, work constantly for 6 hours.

*Light ring on the mic head display working status.

*Working distance: 30-70meter.

* It's suitable for various kinds of conference and performance occasion.

Specification

Model No.

CMS-V108

Channel

8 Channel

Mode

Quartz Crystal

Frequency FM

VHF 190~280 MHz (2 groups)

Audio Output

2 balanced output and 1 mixed unbalanced output

Frequency Stability

Receiver ±0.001% / Mic: ±25KHz

S/N Ratio

>105dB

THD

<0.5%@1KHz

Power Supply

Receiver DC12~17V / Transmitter Mic 9V

Mic Type

Capacitance

Mic Polar Pattern

Uni-directivity

Power Consumption

Receiver 8W / Transmitter Mic 30mA

Mic Output

10mW

Mic Battery

6 hours

Cover Distance

30 ~ 50 meter

Frequency Response

40~20KHz

Dimension

Receiver 420 x180x44 / 480x180x44mm (w rackmount kit) / Transmitter 150x123x43mm

Weight

Receiver 2 KG / Mic 495g
