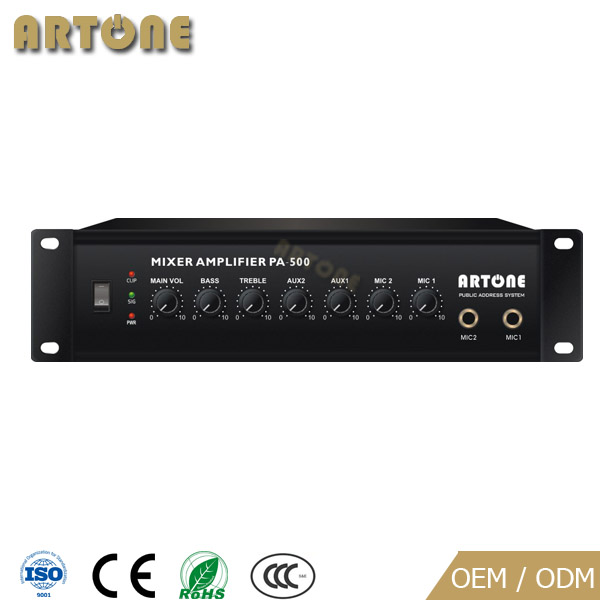

Mini Mixer Amplifier PA-500

Mini mixer amplifier PA-500, is a commercial amplifier with 2 AUX inputs and 2 MIC 6.3 Jacks. It has independent volume control and main volume control. With Auto muting function MIC1,it is easy to insert into priority broadcast.
  • Model:PA-500
  • Power:50w
  • Function:Mini Mixer Amplifier
Details

Mini mixer amplifier PA-500, is a commercial amplifier with 2 AUX inputs and 2 MIC 6.3 Jacks. It has independent volume control and main volume control. With Auto muting function MIC1,it is easy to insert into priority broadcast.

Features

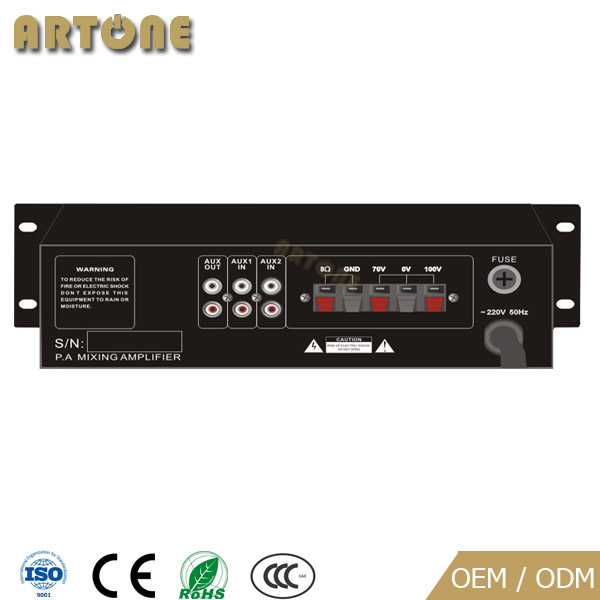

l  2 MIC inputs, 2 AUX inputs, 1 AUX output;

l  Tansforner isolated 70V,100V and 8 ohm speaker outputs;

l  Auto muting function(only available for MIC1), easy to insert into priority broadcast;

l  LED indicators for power, signal and clip;

l  Individual volume conrol and main volume control;

l  Tone control for both treble and bass;

l  Protections include power on (delay protection by relay), electronic protection for short-circuit;

l  Power output:50W;

Specification

Model No.

PA-500

Rated Power

50W

Speaker Outputs

4-16Ω, 70V, 100V

Line Out

600Ω/300mV

Input

Mic1,2/600Ω, 2.0mV, unbalanced    AUX1,2/10KΩ,100mV, unbalanced

Frequency Response

100Hz-16KHz

THD

< 0.1% at 1KHz

S/N Ratio

Mic1,2: 66dB     AUX1,2: 70dB

Tone Ajustment

Bass:±10dB at 100Hz     Treble: ±10dB at 10KHz

Protection

Power, DC & short circuit Protection

Mute

MIC1

Voltage

AC220/50Hz

Dimension

250mmx 210mmx 72mm

Power Consumption

70W

Weight

3.0kg
