Model No.

PRA-A2350

PRA-A2400

PRA-A2450

PRA-A2700

PRA-A2800

Output (8Ω Stereo Power)

2x350W

2x400W

2x450W

2x700W

2x800W

Output (4ΩStereo Power)

2x475W

2x600W

2x675W

2x1000W

2x1200W

Frequency Response

 20Hz~20kHz(±0.5dB)

THD+N

<0.02%@8Ω 1kHz

S/N Rate

>100dB(A Weight)

Slew Rate

35V/µ S

Damping Factor

>300 @ 8Ω

Crosstalk

>60dB @ 8Ω 1kHz

Input Impedance

20kΩ(Balance)/ 10kΩ(Unalance)

Input Sensitivity

0.775V/1V/1.4V

Protect

DC, Short Circuit, Over Heat and Soft-Start Protection

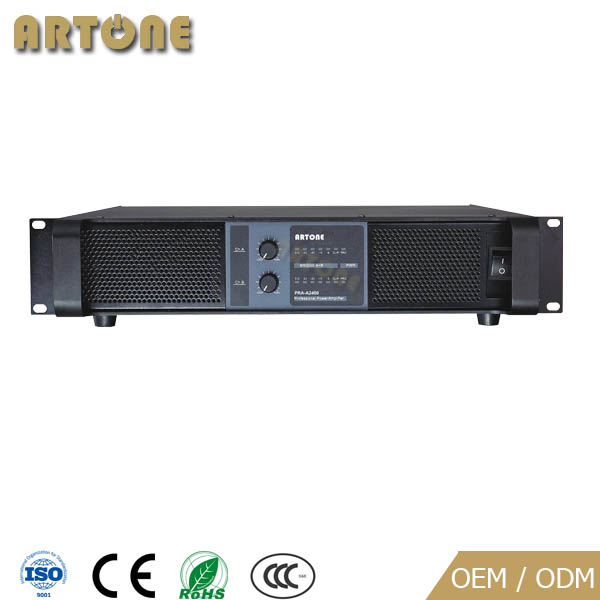

Front Panel CNT

Power Switch, CHA, CHB Volume

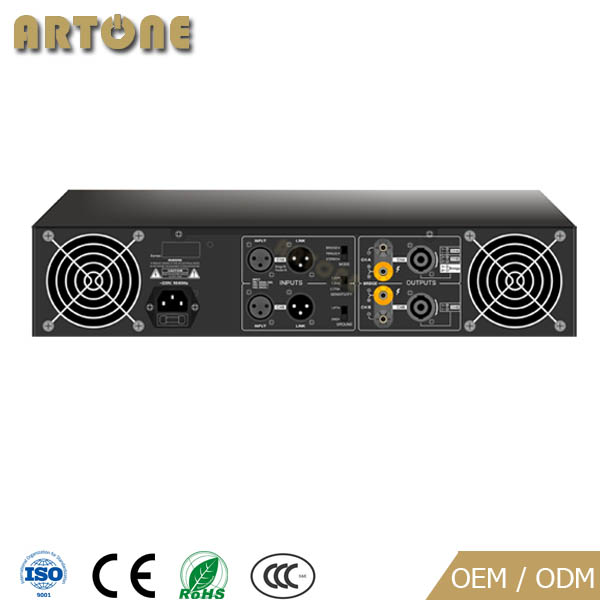

Rear Panel CNT

Mode, Sensitivity

Size

2U(48.2cm/Lx46.5cm/Dx8.8cm/H)

Packing Dimension

570mmx550mmx145mm

Weight

18.00 Kg

19.00 Kg

22.00 Kg

24.00 Kg

27.00 Kg
