Features
l Small and compact design, built-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs (front 6.3 jack and rear RCA) as audio sources, audio sources switchable from each other;
l Strong power RMS 30W, max power at 60W;

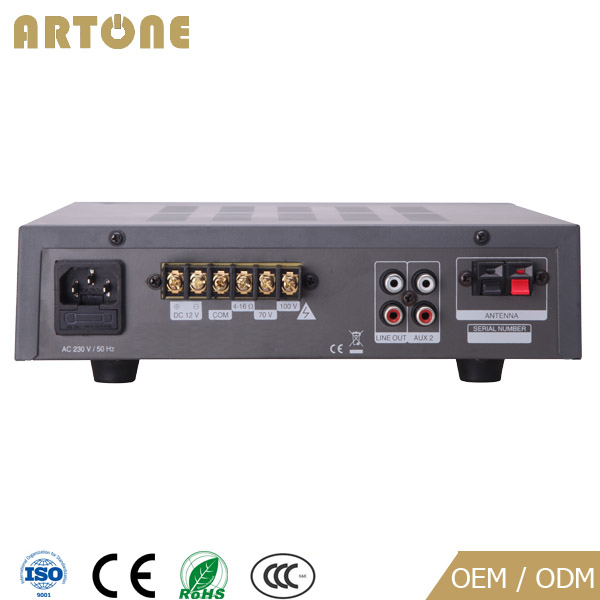

l 4-16 ohm, 70V, 100V speaker output;
l Treble, bass, mic and master volume control
l High quality copper transformer ensures best sound performance;
l Reminder melody chime button;
l LED indicator, Shortcircuit, over heat, over load protection;
l AC 220-240V and DC12V input power supply;

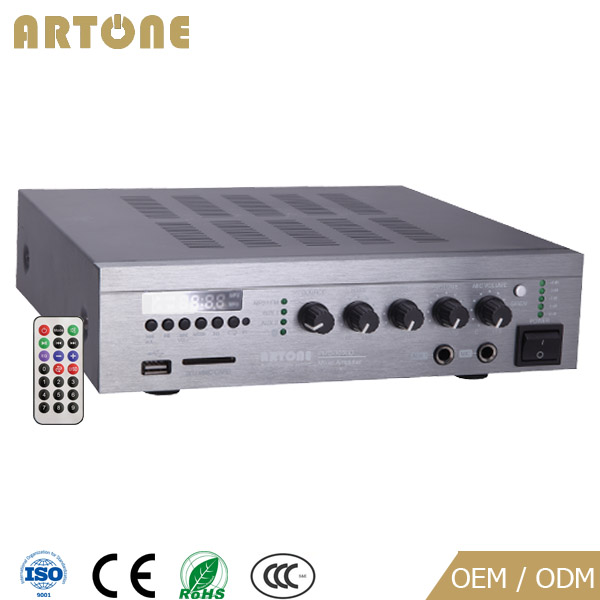

l Remote controller
Specification
Model No. |
PMS-1030D |
Power |
30W |
Speaker Outputs |
4-16Ω, 70V, 100V |
Input Sensitivity |
Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input |
Output Sensitivity & Impedance |
1000mV/470Ω, Unbalanced RCA output |
Frequency Response |
30-20KHz |
S/N Ratio |
Mic: 66 dB | AUX: 80 dB |
THD |
< 1% at 1KHz, 1/3 rated power |
Audio Source |
MP3 (USB/SD), Tuner, Bluetooth, AUX input x 2 |
Protection |
High temperature, overload & short circuit |
Power Supply |
220V~240V 50/60Hz or 110V / DC 12V supply |
Material & Finish |
Aluminum front panel, metal case |
Dimension |
245 x 240 x 70 mm |
Weight |
4.5 kg |
