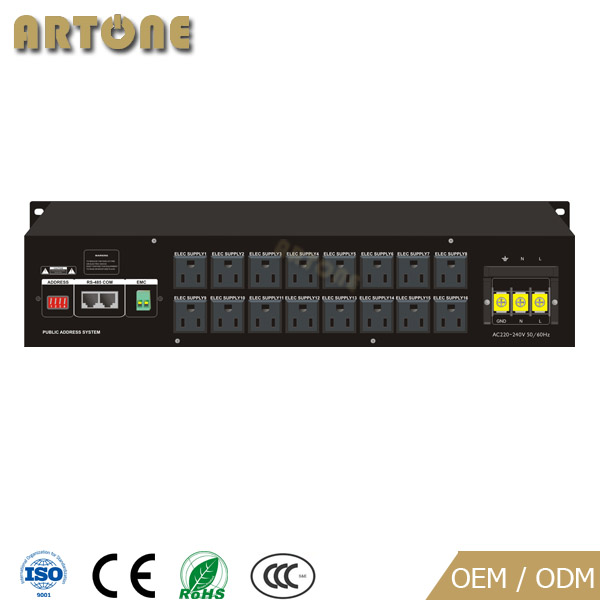

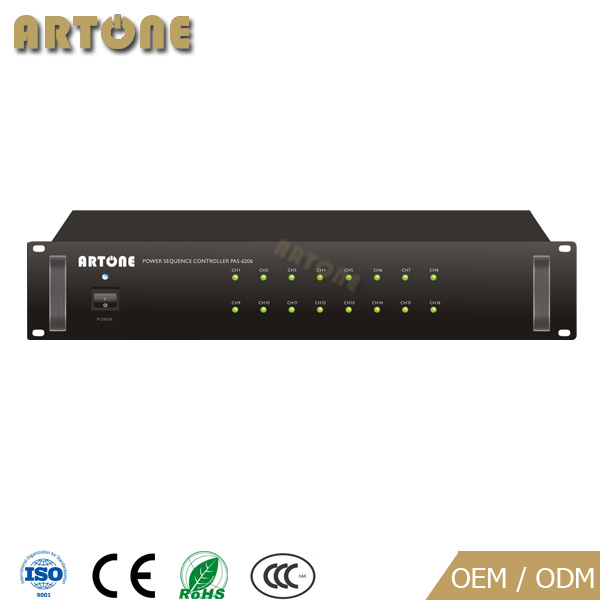

16 Channel Controlled Power Manager for PA System PAS-6206

  • Model:PAS-6206
Details

Features

l  Microcomputer control, each base max volume is 3KVA, total volume is 6KVA;

l  Turn on/off the 16 devices' power orderly, can protect the grid not to be shocked;

l  Safe lock, can manually control under emergency;

l  Access to intelligent central controller, can control the power on/off automatically;

l  Address code support multiple machines work together;

l  After turning off the machine, it'll cut off outputs totally to protect the amplifier and speakers not to be shocked by current;

l  The power input cable access to industrial used pneumatic switch directly;

l  With emergency trigger port(once detect short-circuit active signal, it'll auto-turn on each power orderly; and auto-turn off each power orderly till the signal lost).

Specification

Model No.

PAS-6206

No. of Controlled Power

16 Channels

Single Channel Volume

3KVA

Total Volume

6KVA

ction Interval Time

0.4s~0.5s

Communication Mode

485 Bus

Control Mode

Controlled/Manual

Power Supply

AC220V~240V/50~60Hz

Power Consumption

50W

Protection

AC FUSE (0.5A) ×2

Dimension

485×340×88mm

Weight

7.8Kg
