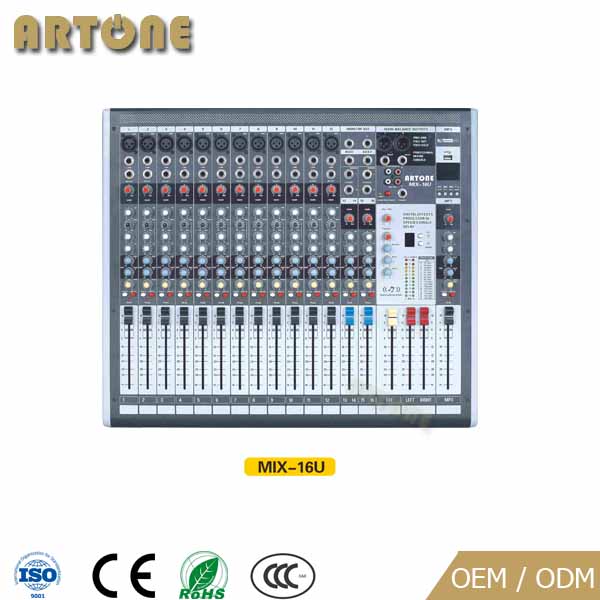

Professional Mixer MIX-16U

  • Model:MIX-16U
  • Power:30W
Details

 Features

l  6812 Balance microphone input and 2 stereo input

l  High quality, low noise microphone input

l  Low-noise preamplifier with strong anti-jamming power

l  High quality +48V phantom power for microphone input

l  Equipped with Signal insertion point offered by high-end

l  mixing console, convenient to connect with externalsignal processor.

l  3-band EQ with swept MF which can be adjusted from 140Hz to 3 KHz, England style

l  2 groups of AUX output, optional for pre fader or post fader

l  With 16 kinds of delay  effect processor

l  Unique double-ended SMT circuit designing, guarantees stable and reliable performance

l  100MM high level analysis fader

l  MP3 player with USB input

Specification

Model No.

MIX-16

Total Harmonic distortion

 <-0.005%

Frequency Response

20Hz-20KHz+1dB /-3dB

Max output level

18dBm (1 KHz, THD=0.5%)

S/N Ratio

 -81 dB

Gain Control

Mono  -51dB~0dB; Stereo  -26dB~0dB

Residual  output noise

<-83dBu

Crosstalk

<-79dBu

Earphone output power

260mW(1KHz,THD=0.5%200Ω)

EQ

LF  80Hz±15dB; MF 250Hz~6KHz±15dB; HF 12KHz±15dB

MIC input

2.4KΩ

Input & output impedance

Mono  input   11 KΩ; Stereo input   100 KΩ

Impedance output

≤75Ω

Power consumption

30W
