PMS-3300 300W 3 Zone pa Bluetooth Mixer Amplifier with USB/SD/FM Tuner

1.Bluetooth Amplifier 2.3 Zone Mixer Amplifier
  • Model:PMS-3300
  • Power:300W
Details

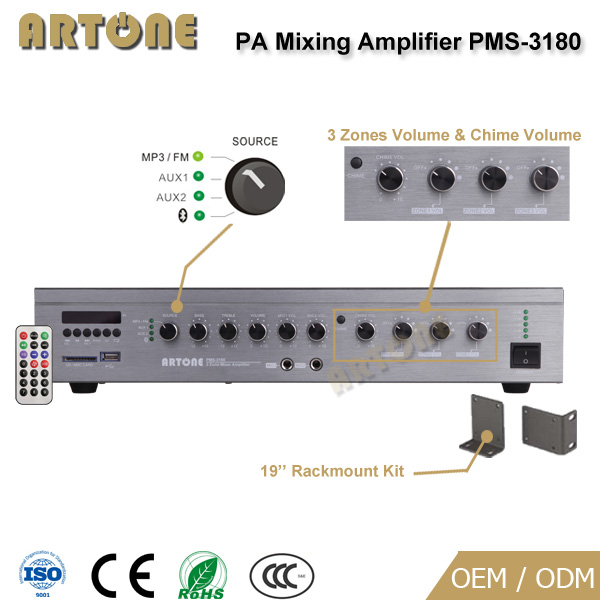

3 zone mixer amplifier PMS-3180 & PMS-3300, is a versatile commercial audio system, which built-in 180W/240W amplifier and as many as 4 audio sources (USB / SD card / FM Tuner / Bluetooth). Independent volume control for 3 separate zone. 2 AUX inputs and 2 MIC 6.3 Jacks. Chime button able to set reminder before paging or speak.

Features

l  Built-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs as audio sources, audio sources switchable from each other;

l  Strong power RMS 180W / 300W, max power at 300W / 500W;

l  3 zone independent volume control;

l  4-16 ohm, 70V, 100V speaker output;

l  Treble, bass, mic and master volume control

l  High quality copper transformer ensures best sound performance;

l  Reminder melody chime button;

l  LED indicator, Shortcircuit, over heat, over load protection;

l  Remote controller

Specification

Model No.

PMS-3300

Power

300W

Speaker Outputs

4-16Ω, 70V, 100V

Input Sensitivity

Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input

Output Sensitivity & Impedance

1000mV/470Ω, Unbalanced RCA output

Frequency Response

30-20KHz

S/N Ratio

Mic: 66 dB | AUX: 80 dB

THD

< 1% at 1KHz, 1/3 rated power

Audio Source

MP3 (USB/SD), Tuner, Bluetooth, AUX input x 2

Protection

High temperature, overload & short circuit

Power Supply

220V~240V 50/60Hz or 110V

Material & Finish

Aluminum front panel, metal case

Dimension

485 x 380 x 80 mm

Weight

12 kg
