Features
l High quality mixer amplifier, built-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs as audio sources;
l Pure copper transformer drives strong power RMS 60W, 120W, 240W, 360W, 480W and 600W ensures best sound performance;
l 4-16 ohm, 70V, 100V speaker output;
l Mic1-3, AUX1-2, MP3, treble, bass, and master volume control;
l RCA audio output;
l VOX mute for MIC1;
l Shortcircuit, over heat, over load protection;
l AC 220-240V power supply;

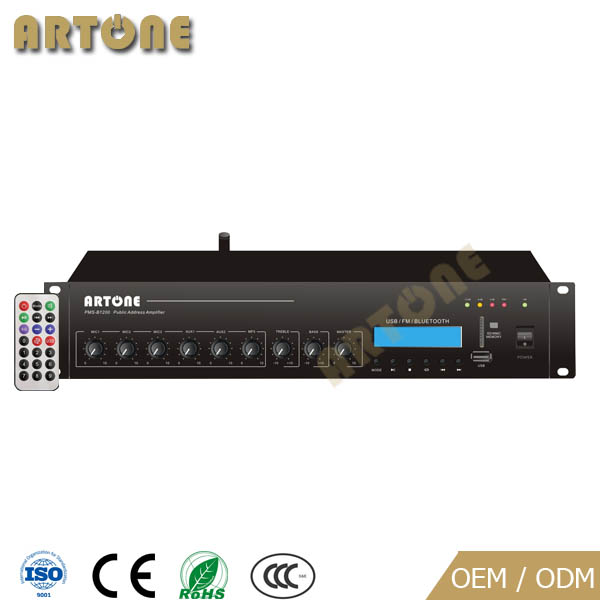

l Remote controller
Specification
|
Model No. |
PMS-B600 |
PMS-B1200 |
PMS-B2400 |
PMS-B3600 |
PMS-B4800 |
PMS-B6000 |
|
Power |
60W |
120W |
240W |
360W |
480W |
600W |
|
Speaker Output |
4-16Ω, 100V |
|||||
|
Sensitivity |
Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input |
|||||
|
Frequency Response |
60-20KHz |
|||||
|
S/N Ratio |
Mic: 66 dB | AUX: 80 dB |
|||||
|
THD |
< 1% at 1KHz, 1/3 rated power |
|||||
|
Audio Source |
MP3 (USB/SD), Tuner, Bluetooth, RCA AUX, 6.35mm MIC input |
|||||
|
Protection |
High temperature, overload & short circuit |
|||||
|
Power Supply |
220V~240V 50/60Hz or 110V |
|||||
|
Material & Finish |
Aluminum front panel, metal case |
|||||
|
Dimension |
485 x 310 x 88 mm |
|||||
|
Weight |
8.5 kg |
9 kg |
12.8 kg |
17 kg |
18.5 kg |
21 kg |
