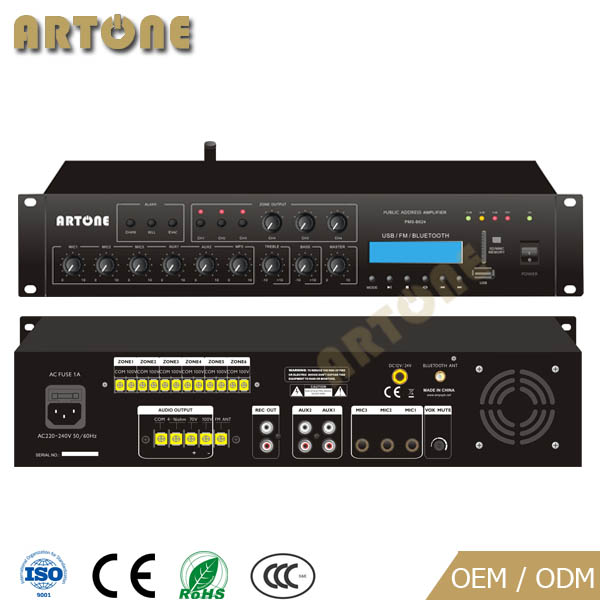

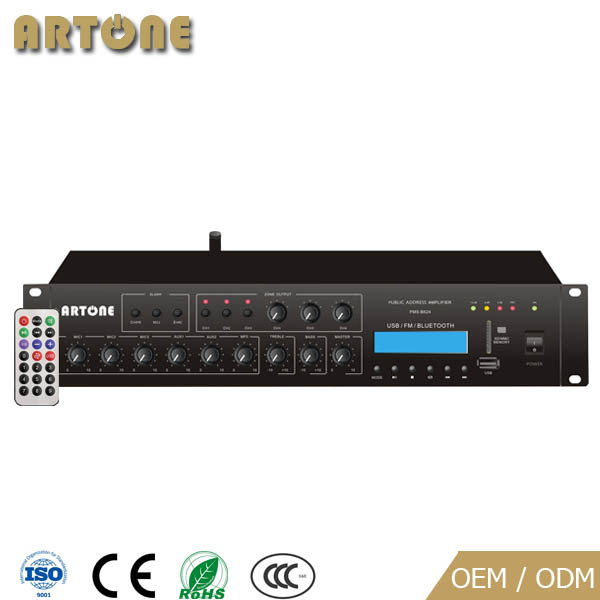

6 Zone Mixer Amplifier with USB/SD/FM Tuner/Bluetooth PMS-B606 PMS-B612 PMS-B624

High quality mixer amplifier, built-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs as audio sources;Pure copper transformer drives strong power RMS 60W, 120W, 240W, 360W, 480W and 600W ensures best sound performance;4-16 ohm, 70V, 100V speaker output;6 zones (3 with switch on/off, 3 with individual volume control);Mic1-3, AUX1-2, MP3, treble, bass, and master volume control;Chime, bell and EVAC reminder;RCA audio output;VOX mute for MIC1, DC trigger for EVAC;Shortcircuit, over heat, over load protection;
  • Model:PMS-B606 PMS-B612 PMS-B624 PMS-B636 PMS-B648 PMS-B660
  • Power:60W / 120W / 240W / 360W / 480W / 600W
  • Function:MP3, USB, SD, BLUETOOTH, 6 ZONES, CHIME
Details

Features

l  High quality mixer amplifier, built-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs as audio sources;

l  Pure copper transformer drives strong power RMS 60W, 120W, 240W, 360W, 480W and 600W ensures best sound performance;

l  4-16 ohm, 70V, 100V speaker output;

l  6 zones (3 with switch on/off, 3 with individual volume control);

l  Mic1-3, AUX1-2, MP3, treble, bass, and master volume control;

l  Chime, bell and EVAC reminder;

l  RCA audio output;

l  VOX mute for MIC1, DC trigger for EVAC;

l  Shortcircuit, over heat, over load protection;

l  AC 220-240V power supply;

l  Remote controller



Specification

Model No.

PMS-B606

PMS-B612

PMS-B624

PMS-B636

PMS-B648

PMS-B660

Power

60W

120W

240W

360W

480W

600W

Speaker Output

4-16Ω, 100V

Sensitivity

Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input

Frequency Response

60-20KHz

S/N Ratio

Mic: 66 dB | AUX: 80 dB

THD

< 1% at 1KHz, 1/3 rated power

Audio Source

MP3 (USB/SD), Tuner, Bluetooth, RCA AUX, 6.35mm MIC input

Protection

High temperature, overload & short circuit

Power Supply

220V~240V 50/60Hz or 110V

Material & Finish

Aluminum front panel, metal case

Dimension

485 x 310 x 88 mm

Weight

9 kg

9.5 kg

13.5 kg

17.5 kg

19 kg

21.5 kg
