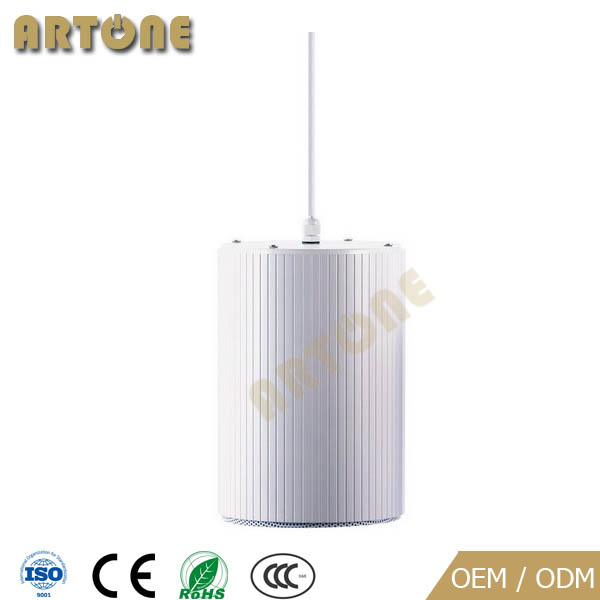

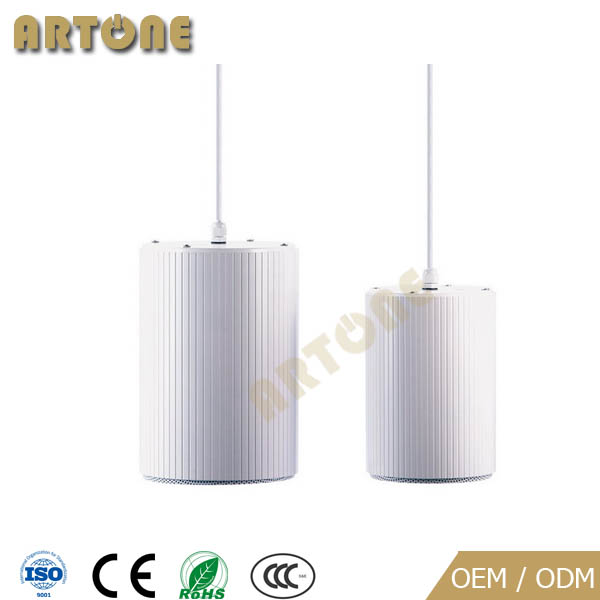

Pendant speaker HS-920 HS-922, designed in strong aluminium body for weather resistant, with 5.25 inch (HS-920) and 6.5 inch (HS-922) speaker driver, rated power 10 Watts (HS-920) and 20 Watts (HS-922), use for commercial audio system or public address system (pa system) of input voltage 100 volt. Power taps at full power, 1/2 power and 1/4 power. Fast installation hanging accessories. Black and white color for option. It is durable and practical and very competitive to satisfy medium or high level architechture sound system.
Features
5.25’’ (HS-920) and 6.5’’ (HS-922) speaker driver;
Rated power 10 Watts (HS-920), and 20 Watts (HS-922), max power 20-40 Watts;
Input voltage 100 Volt;
Sensitivity 91±3 dB (HS-920), 92±3 dB (HS-922);
Frequency Response 120~15KHz (HS-920), and 100~16KHz (HS-922)
Pendant mounting;
Strong aluminium material body;
Dimension ¢138x205mm (HS-920), ¢170x252mm (HS-922)
Weight:2.2kg (HS-920) and 3KG (HS-922)
Specification
Model No. |
HS-920 |
HS-922 |
Rated Power / Max Power |
10W / 20W |
20W / 40W |
Power Taps |
2.5W / 5W / 10W |
5W / 10W / 20W |
Speaker |
5.25’’ speaker driver |
6.5’’ speaker driver |
Input Voltage |
100V Line |
|
Sensitivity |
91±3dB |
92±3dB |
Frequency Response |
120-15KHz |
100-16KHz |
Mounting Method |
Pendant Mounting |
|
Colour |
Black / White |
|
Material |
Aluminium |
|
Dimension |
¢138 x 205 mm |
¢170 x 252 mm |
Weight |
2.2 kg |
3 kg |
