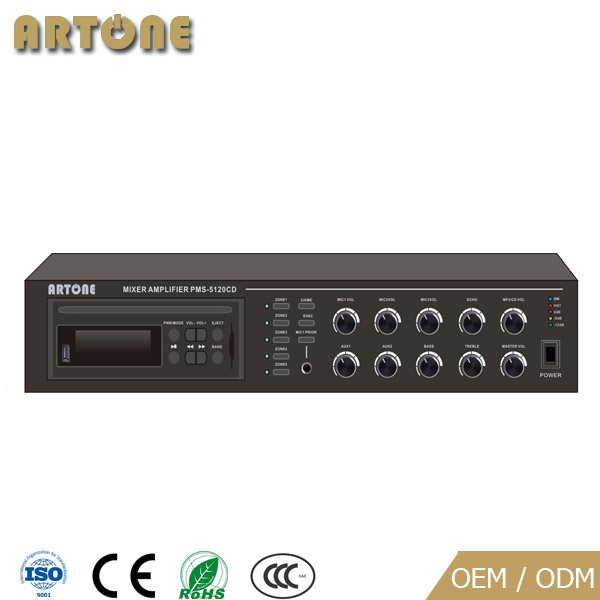

5 Zone PA Mixing Amplifier with CD player PMS-5120CD PMS-5240CD

DVD CD Mixer Amplifier PMS-5120CD (120W) and PMS-5240CD (240W) are 5 zone PA mixer amplifier, with built-in CD/DVD MP3, FM and Bluetooth player, distribute audio to separated 5 zones. 5 zone with switches for ON/OFF. 3 Microphone inputs with echo effect. It is ideal to use in stores, markets, school, mosque or church place for public address paging and background music system.
  • Model:PMS-5120CD PMS-5240CD
  • Power:120W / 240W
  • Function:CD Amplifier, video output, 5 zone mixer amplifier, Echo audio amplifier
Details

DVD CD Mixer Amplifier PMS-5120CD (120W) and PMS-5240CD (240W) are 5 zone PA mixer amplifier, with built-in CD/DVD MP3, FM and Bluetooth player, distribute audio to separated 5 zones. 5 zone with switches for ON/OFF. 3 Microphone inputs with echo effect. It is ideal to use in stores, markets, school, mosque or church place for public address paging and background music system.


Features

lBuilt-in CD / DVD, USB,SD,FM tuner, Bluetooth and 2 external AUX inputs (rear RCA) as audio sources, audio sources switchable from each other;

lStrong power RMS 120W and 240W;

l5 zone mixer amplifier, 5 switch ON/OFF;

l4-16 ohm, 70V, 100V speaker output;

lTreble, bass and master volume control;

lEcho effect for Microphone;

lHigh quality copper transformer ensures best sound performance;

lLED indicator, Shortcircuit, over heat, over load protection;

lAC 220-240V input power supply;

lRemote controller



Specification

Model No.

PMS-5120CD

PMS-5240CD

Power

120W

240W

Speaker Outputs

4-16Ω, 70V, 100V

Input Sensitivity

Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input

Output Sensitivity & Impedance

1000mV/470Ω, Unbalanced RCA output

Frequency Response

50-20KHz

S/N Ratio

Mic: 66 dB | AUX: 80 dB

THD

< 1% at 1KHz, 1/3 rated power

Audio Source

CD/DVD, MP3 (USB/SD), Tuner, Bluetooth, AUX input x 2

Protection

High temperature, overload & short circuit

Power Supply

220V~240V 50/60Hz or 110V

Material & Finish

Aluminum front panel, metal case

Dimension

485 x 320 x 88 mm

Weight

11.5 kg

16.9 kg
