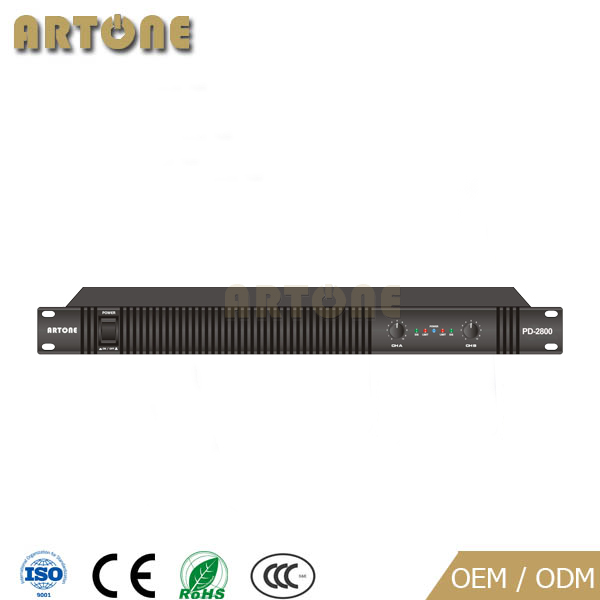

The PD-2200 PD-2500 and PD-2800 series are energy saving star professional audio 2 channel 200W to 1000W Class D 1U rack mountable digital power amplifier for stage show sound system. It is designed in switching power supply and light weight wide use for stage, meeting room, portable show sound system. Besides the very competitive cost for most of the budget audio system, the amplifier generates large power and save energy, gives the best efficiency power to loudspeaker. Full protection with soft start, clip limiter, overheat and shortcircuit makes it reliable in sound reinforcement.
Features：
l Large-capacity switching power amplifier
l Automatic slicer output short circuit, overload, over temperature, soft start and other protection
l Amplifier with soft start, protect the speakers from shock and damage
l After the plate is equipped with dual-channel, single channel, the bridge output conversion
l Balanced inputs
l SPEAKON output connector
l 483MM standard rack structure
l Switching power amplifier section has a separate section of the cooling system
l 1U design, body light, easy to carry
Specification
|
Model No. |
PD-2200 |
PD-2500 |
PD-2800 |
|
Output (8Ω、1kHz) |
2x200W |
2x500W |
2x800W |
|
Output (4Ω、1kHz) |
2x300W |
2x800W |
2x1600W |
|
Bridge(8Ω、1kHz) |
600W |
1800W |
3600W |
|
Frequency Response |
40Hz~20kHz ±3dB |
||
|
Total Distortion |
1%(8Ω、200W) |
1%(8Ω、500W) |
1%(8Ω、800W) |
|
Input Sensitivity |
+4dB * (1.23V) |
||
|
Input Impedance |
10kΩ(Balanced) |
||
|
S/N Ratio |
≥80dB |
||
|
Connector |
Input(CH1-2):XLR Input Connector;Output(CH1-2):SPEAKON Output; Power: AC power supply |
||
|
Indicator Lights |
Power Indicator, Input Indicator, Peak Indicator |
||
|
Power Supply Voltage |
AC110~120V、50/60Hz AC220~240V、50/60Hz(Via inside jumping switch) |
||
|
1/8 Rated Activity Consumed Power |
50W |
100W |
150W |
|
Working Temperature Range |
0~50℃ |
||
|
Working Humidity Range |
Under 90% RH |
||
|
Dimensions |
483 x 44 x 200 (mm) |
||
|
Net Weight |
3.54kg |
||
