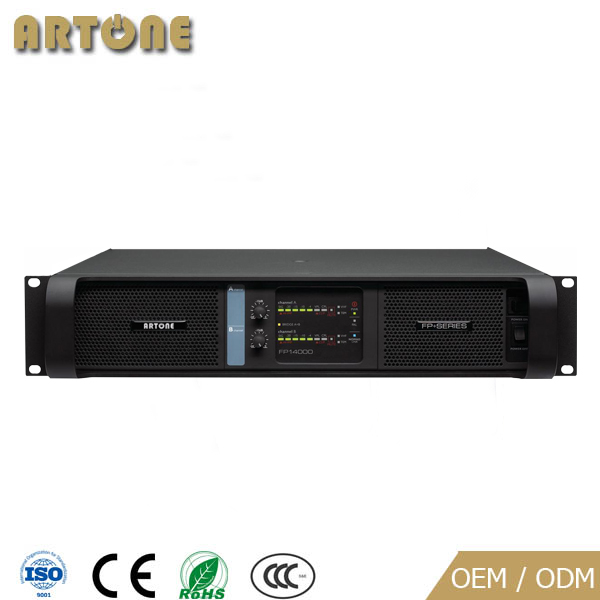

Professional Stage Audio OEM ODM FP Series Class TD 2 Channel 14000W Power Amplifier FP-14000

The FP-14000 is a two channel audio power amplifier, designed in class TD to deliver excellent sound performance, follow Lab.gruppen classical sample, engineers study and focus on make the audio signal goes more efficient while keeps the sound in perfect class AB way. Versatile 2 channel amplifier, adjacent channels bridgable for 2 or 1 channel application. High stable switching power supply solution, enable the amplifier works smooth and gives strong power 2350W x 2 to speakers, total 14000W (bridged connect output power at 4 ohms) in only 2U size, amplifier IC tube stick with heat sink allows the amplifier work in low resistance and well ventilation. Fine workmanship and careful select of electric components also be controlled in strict management.
  • Model:FP-14000
  • Power:1200W x 2 @ 16 ohm / 2350W x 2 @ 8 ohm / 4400W @ 4 ohm / Total 14000W
  • Function:Pro audio large power and light weight FP series 14000W power amplifier FP-14000
Details

The FP-14000 is a two channel audio power amplifier, designed in class TD to deliver excellent sound performance, follow Lab.gruppen classical sample, engineers study and focus on make the audio signal goes more efficient while keeps the sound in perfect class AB way. Versatile 2 channel amplifier, adjacent channels bridgeable for 2 or 1 channel application.

High stable switching power supply solution, enable the amplifier works smooth and gives strong power 2350W x 2 to speakers, total 14000W (bridged connect output power at 4 ohms) in only 2U size, amplifier IC tube stick with heat sink allows the amplifier work in low resistance and well ventilation. Fine workmanship and careful select of electric components also be controlled in strict management.



Features:


  •  Stable quality and high efficient class TD amplifier technology;
  • Large power 2350W x 2. total 14000W power in all output;
  • Regulated switching power supply, and excellent heat sink system;
  • Comprehensive protection with excessive current output, DC, high temperature, high frequency, short circuit, soft start and fuse;
  • 3-pin XLR input for input of each channel;
  • Heavy duty Speakon output or binding post connectors for speaker





Specification:

Model No.

2 Channel Power Amplifier FP-14000

Peak Output Power / Voltage / Current (per ch)

14000W

16 ohm / CH (Max Output Power)

1200W x 2

8 ohm / CH (Max Output Power)

2350W x 2

4 ohm / CH (Max Output Power)

4400W x 2

2 ohm / CH (Max Output Power)

7000W x 2

16 ohm  (Bridged)

4700W

8 ohm  (Bridged)

8800W

4 ohm  (Bridged)

14000W

2 ohm  (Bridged)

Not Recommended

Gain

38dB, VPL 150v

THD (1W)

<0.1%

SNR

>112 dBA

Input Impedance

20K ohm

Output Impedance (@100Hz)

19m Ohm

Peak Voltage Limiter, per channel max output

195,170,140,116,100,80,66,54V

Peak Voltage Limiter (bridged) max output

390,340,280,232,200,160,132,108V

Amp Gain

23,26,29,32,35,38,41,44 dB

Output bridge mode

A+B CH (signal input-A / speaker output A+ and B-)

C+D CH (signal input-C / speaker output C+ and D-)

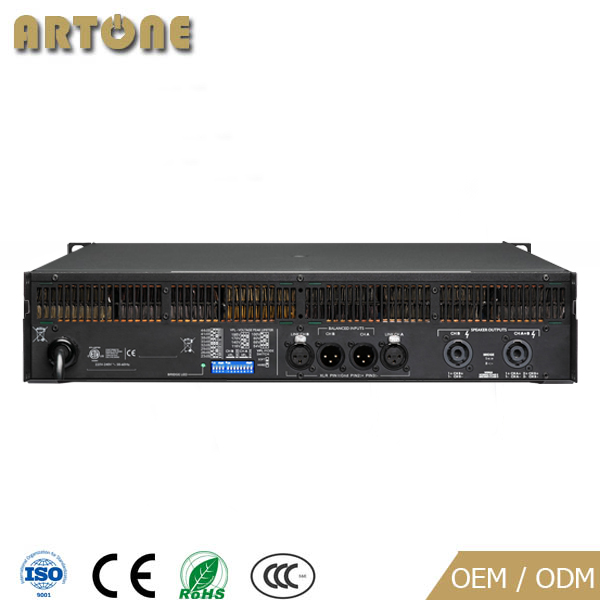

Input Connector

Jack 3-Pin XLR female x 4

Output Connector

Speakon or binding post

Dimension

550 x 575 x 185 mm

Weight

12 KG

-  Specification may be updated without notification, your understanding will be appreciated.
