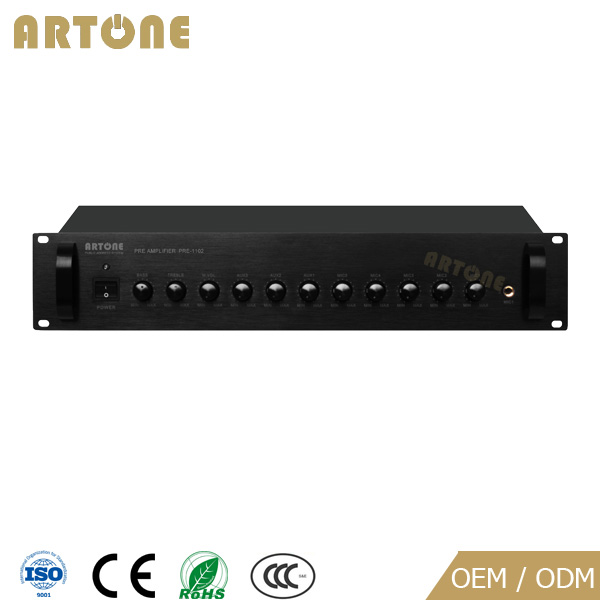

PRE-1102 Public Address Pre-amplifier

Address: Bldg. E, Nanlang Section, Chentian, North Of Baiyun Rd., Baiyun Dist., Guangzhou, Guangdong, China

Tel: +86-20-86262440

Fax:+86-20-62351466

Email:info@ampspk.com

QQ: 2661958752

Skype: artonepro

Wechat linkARTONE

Products

1.Pre-amplifier 2.with 10 audio inputs

Details

Features

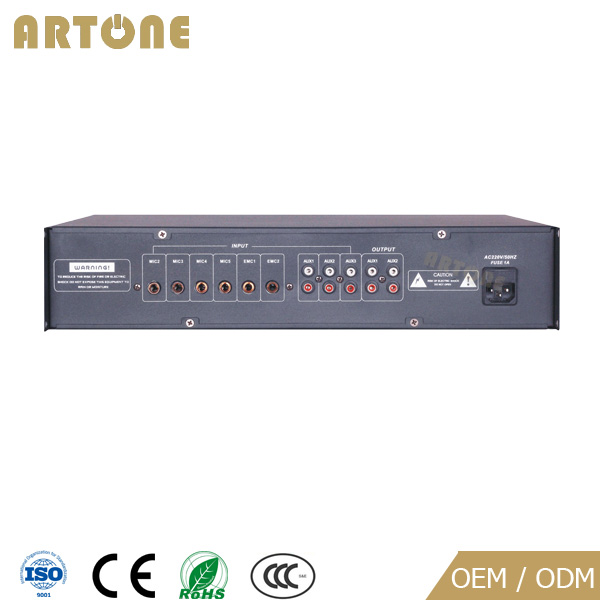

l 10 audio inputs (5 MIC 6.3 Jack inputs, 3 AUX inputs and 2 EMC inputs);

l MIC1 has top priority, can mute other audio inputs;

l EMC inputs are secondary level and prior to MIC2/3/4/5 and AUX1/2/3;

l Independent volume control for treble, bass, MICs, AUXs and different audio inputs;

l Volume of EMC inputs are settled/fixed.

l High quality copper transformer ensures best sound performance;

Specification

Model No.	PRE-1102
Input Sensitivity	Mic: 10mV/600Ω unbalanced 6.3mm jack input \| AUX:250mV/10KΩ RCA input
Output Sensitivity & Impedance	1V/600Ω, Unbalanced RCA output
Frequency Response	60-18KHz
S/N Ratio	Mic: 65 dB \| AUX: 85 dB
THD	< 1% at 1KHz, 1/3 rated power
Volume	Bass: ±10 dB / Treble: ±10 dB
Power Supply	220V~240V 50/60Hz or 110V
Material & Finish	Aluminum front panel, metal case
Dimension	485 x 340 x 88 mm
Weight	7.2 kg
