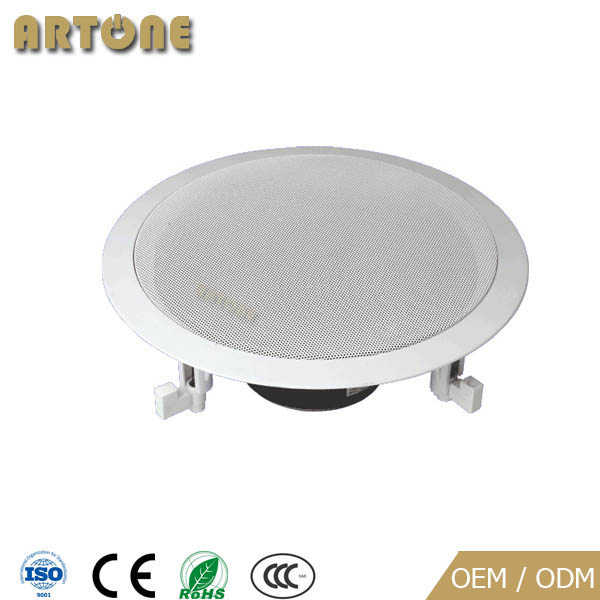

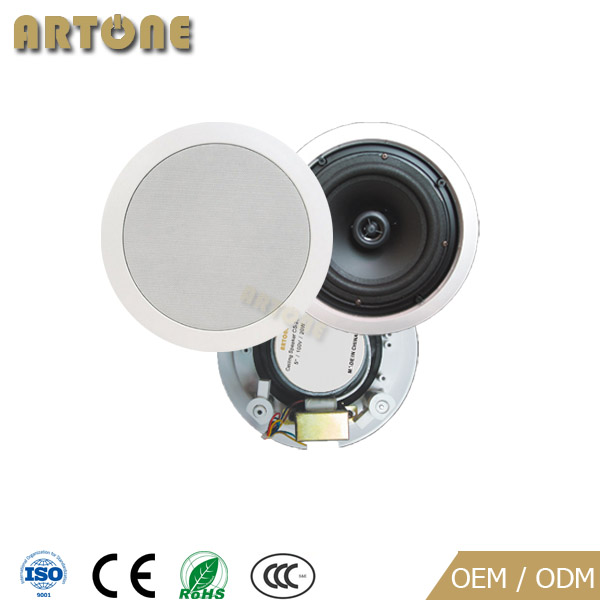

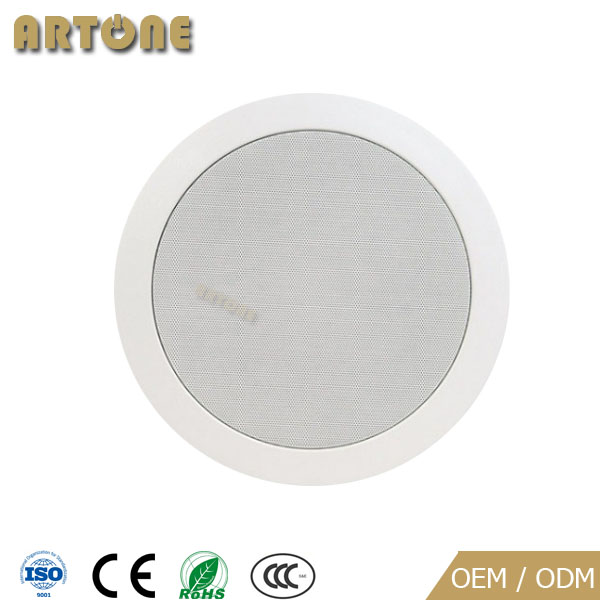

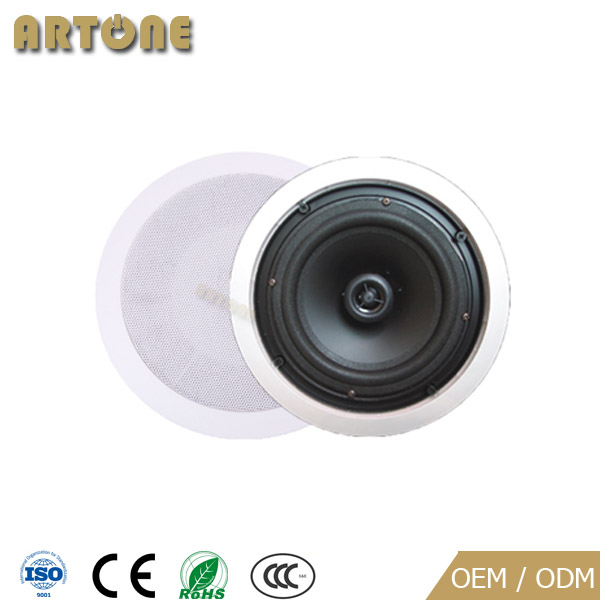

Ceiling mount speaker, designed in ABS material, with coaxial 5 inch, 6 inch and 8 inch speaker, rated power 20W, 30W and 40 Watts, use for commercial audio system or public address system (pa system) of input voltage 100 volt. Fast installation with 4 dog ear clamp. It is durable and practical and very competitive to satisfy sound system at economical budget.

Features

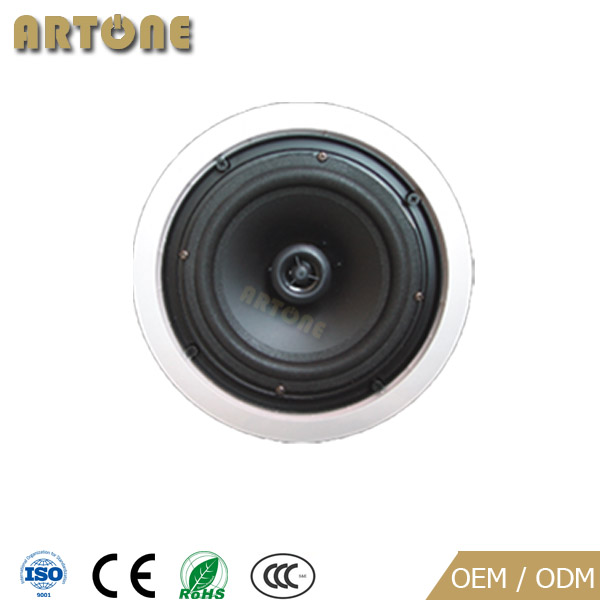

Coaxial 5’’ (CS-252) / 6’’ speaker (CS-263) / 8’’ speaker (CS-284);

Rated power 20 Watts (CS-252), 30 Watts (CS-263), 40 Watts (CS-284);

Input voltage 100 Volt;

Sensitivity 86dB  (CS-252) / 87dB (CS-263) / 88dB (CS-284);

Frequency Response 95~20KHz  (CS-252) / 90~20KHz (CS-263) / 85~20KHz (CS-284)

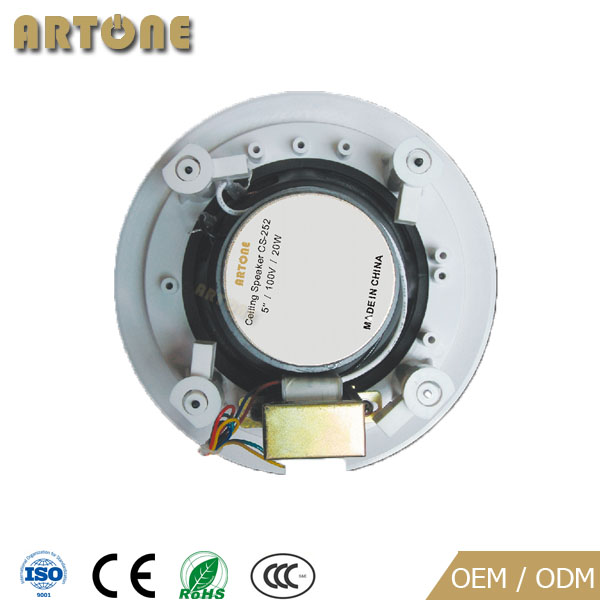

Ceiling mount speaker, dog ear clamp mounting;

ABS material body

Cutout size 170mm  (CS-252) / 200mm (CS-263) / 240mm (CS-284)

Dimension 203 x 80mm (CS-252) / 230 x 90mm (CS-263) / 270 x 105mm (CS-284)

Specification
