Outdoor Music Projector IP66 Horn Speaker PH-930 for Public Address System

Waterproof IP66 outdoor horn speaker for public address system, the music projector PH-930 is 30 watts loudspeaker that work with 70v/100v and 8 ohm PA system, both good for indoor and outdoor speaker system. It delivers high quality vocal sound and background music to broad area, and cover large crowd audience as well.
  • Model:Outdoor Music Projector IP66 Horn Speaker PH-930 for Public Address System
  • Power:rated power 30 Watts, power taps 30/15/7.5/3.8 Watts, 70v/100v/8Ω
  • Function:High sensitivity 102 dB SPL, Waterproof IP66 speaker, Long throw speaker
Details

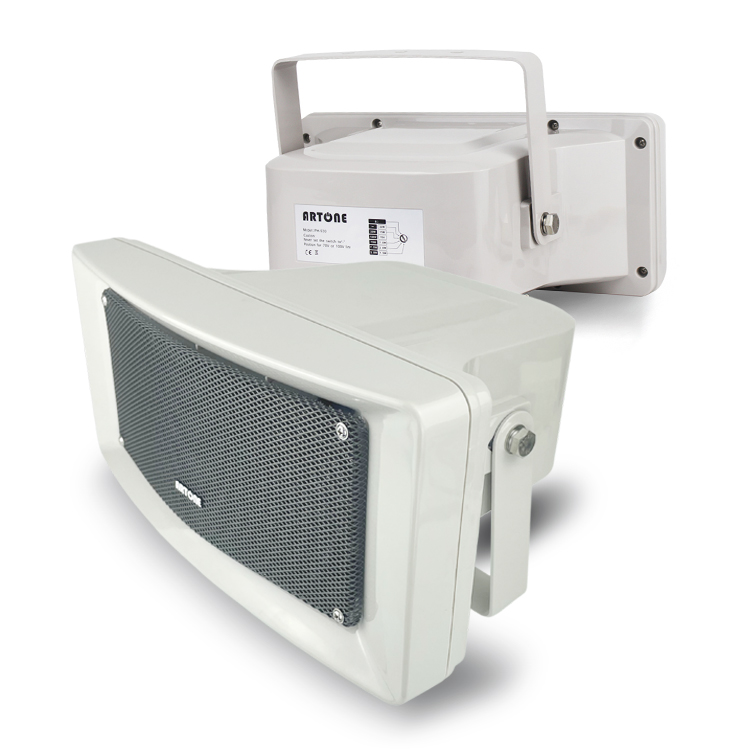

IP66 Outdoor PA Music Projector and Broadcast Horn Speaker PH-930

All weather resistant waterproof horn speaker PH-930, designed in duarable ABS body, built-in 70V/100V transformer and music projector speaker driver to deliver wide frequency response 120~15KHz and reduces line losses of long distance transaction, multiple power tapping 30W/15W/7.5W/3.8W/8Ω switch is helpful to suit different applications, i.e. parking area, playground, public park or garden, train or bus station. Fast installation wall mounting bracket and angle adjustable. The speaker is an ideal choice for indoor/outdoor industrial or commercial sound system. It passed strict test of IP66 for dustproof and water-splash, and practical and very competitive to satisfy wide or open area’s broadcast audio need.


Features

l  Indoor/Outdoor horn speaker rated power 30 Watts, power taps 30/15/7.5/3.8 Watts;

l  Input voltage 70/100 Volt, power tabs at 1/2, 1/4 power or 8Ω;

l  Sensitivity 96±3 dB;

l  Frequency Response 100~10KHz

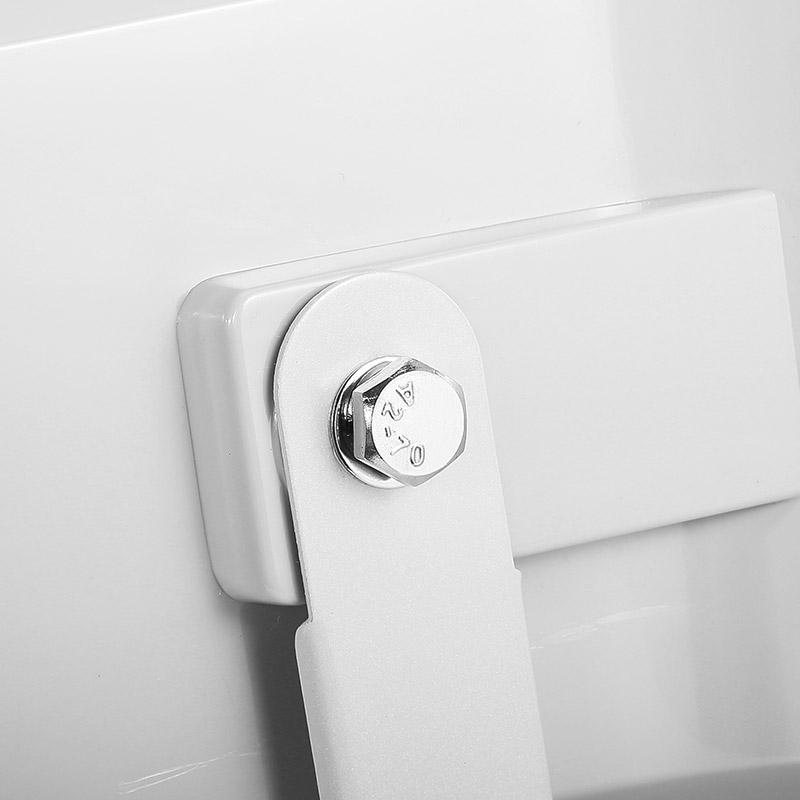

l  Adjustable wall mount speaker with stainless wall mounting parts;

l  Strong ABS material body;

l  Dimension 366x165x272mm

l  Weight:3.2kg


Specification

Model No.

IP66 Music Horn Speaker PH-930

Rated Power & Power Taps

30W/15W/7.5W/3.8W/8Ω

Input Voltage

70/100V Line and power tabs at 1/2, 1/4 power or 8Ω

Sensitivity

102 ±3dB

Frequency Response

120-15KHz

Mounting Method

wall mounting with bracket

Material

Strong ABS plastic

Dimension

366 x 165 x 272 mm

Weight

3.2 kg
