2-1/5" ultra thin-line shallow depth in-ceiling 2-way speaker low profile slim design CS-620

Discreet and low profile design ultra thin line ceiling speaker CS-620 is special made (in China) 100V PA loudspeaker in thin-bezel and multi-tap of 20W/10W/5W/2.5W and 8 ohm for different sound system. 5.25'' woofer and 1'' tweeter with sound reflex hole makes the ABS enclosure speaker giving high quality of sound to cover as much space as it could.
  • Model:100V ultra thin-line shallow depth in-ceiling 2-way speaker low profile slim design CS-620
  • Power:20W/10W/5W/2.5W/8Ω
  • Function:Ultra thin-line speaker, 2-way ceiling speaker, low profile frameless speaker
Details

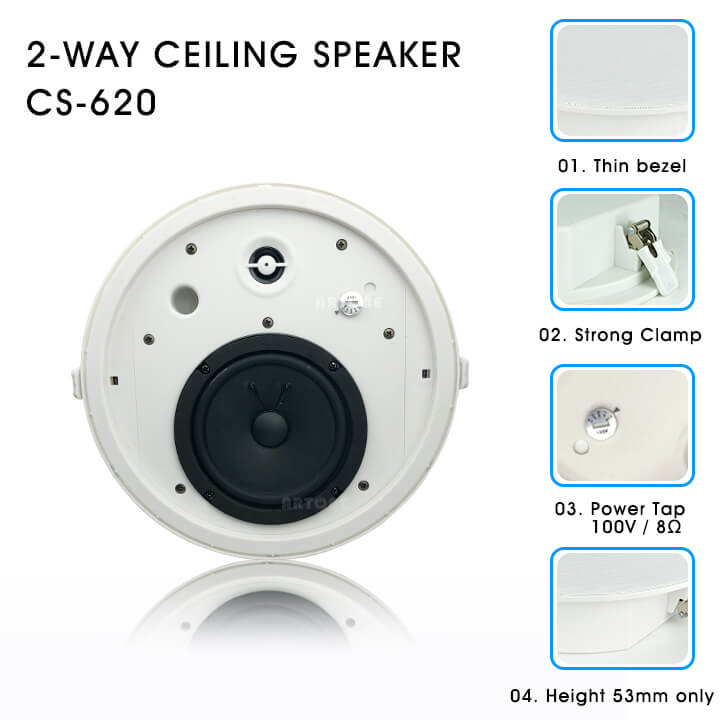

Ultra thin-line shallow depth in-ceiling 2-way speaker with low profile slim design CS-620

China ARTONE ceiling speaker CS-620 is a discreet and low profile design ultra thin 100v loudspeaker, with a shallow depth of 2-1/5'' (53mm), it is ideal for sound system in office buildings, parking lot, coach bus, yachting or re-constructed shallow ceilings and walls.

The speaker features with 2-way 5-1/4'' woofer and 1'' tweeter, giving high definition of sound and handling power at 20W~40W. It also allows power tapping to adjust 20W / 10W / 5W / 2.5W at 100 volt, and switchable to 8Ω. Although CS-620 is made in a slim and ultra compressing way, still has no compromise with sound performance, the sound reflex reinforce the low frequency at proper level. Despite all features that normal commercial PA ceiling speaker for background music or speech, it is able to compare with wall mount cabinet speakers at similar size.


Features:


  • Ultra slim and thin-line design in-ceiling with shallow depth of 2-1/5'' (53mm);
  • 2-way ceiling speaker, 5.25'' woofer and 1'' tweeter;
  • RMS power 20W and max 40W;
  • Power tapping 20W/10W/5W/2.5W at 100V;
  • Compatible 70V/100V and Low-Z 8Ω sound system;
  • Excellent sound quality, covers wide space of room;

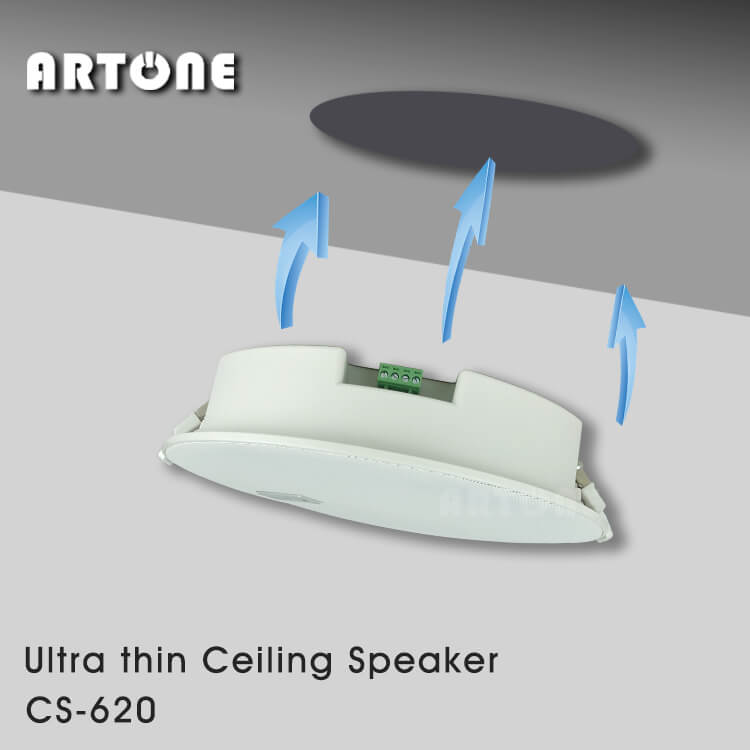

  • Easy installation with strong clamps;


Specification:

Model No.

CS-620

Speaker Driver

5.25’’ woofer + 1’’ tweeter

Power

RMS 20W / Max 40W

Power Tapping

20W/10W/5W/2.5W/8Ω

Input Voltage

100V

Sensitivity (1m/1w)

88 ± 3dB

Frequency Response

100~20KHz

Connector

Phoenix connector 4-pin (in/out)

Material & Finish

ABS enclosure metal grille / White

Cutout Size

242 mm

Dimension

¢266 x 53 mm (Depth)

Weight

1.4 kg
