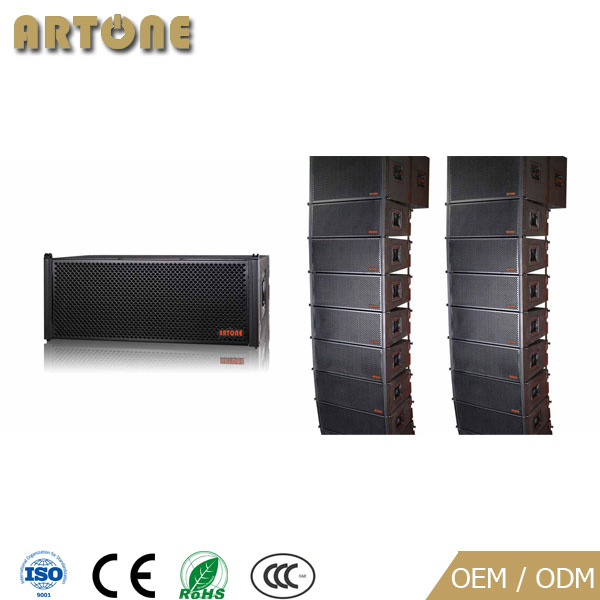

Line Array Speaker AR-2LT

Model:AR-2LT
Power:MF 300W (RMS) 600W (PEAK) HF 100W (RMS) 200W (PEAK)

Details

Details

ARTONE AR SERIES LINE ARRAY SYSTEM caters for sound and fashion through latest technology of audio, acoustic, mechanic in speaker design, hanging structure and sound measurement. Of course an exceptional aesthetic vision can not be spared.
Through serious and deep research, ARTONE proudly introduces its AR SERIES LINE ARRAY & MATRIX ARRAY SPEAKER SYSTEM. The advanced technologies which are widely applied together with special optimization technique results in an excellent performance and high efficiency. To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall prediction and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, ARTONE engineers know it fairly well.

Applications
Medium-large scale venues including stadium, concert hall, auditorium, theatre, Music Halls, Night clubs, Large Discotheques, touring show, rental market etc.

Specification

Model No.	AR-2LT
Frequency Response	150Hz－18kHz ± 3dB
Power handling	MF 300W (RMS) 600W (PEAK) HF 100W (RMS) 200W (PEAK)
Sensitivity	MF 102dB(1W@1M) HF 111dB(1W@1M)
Max@S.P.L.	MF 127dB(PEAK/1M) HF 131dB(PEAK/1M)
MF section	10"(260mm) MID
Nominal impedance	8 ohm
HF section	3"compression driver
Nominal impedance	8 ohm
Dispersion	90°H×40°V
Speaker cables	1(+)1(-)
Input connectors	2×NL4MP speakon
Dimensions	500×436×600mm(W×H×D)
Package dimensions	570×505×670mm/0.08cbm
Enclosure	Birch Plywood
Net weight	36kg
Gross weight	39kg
