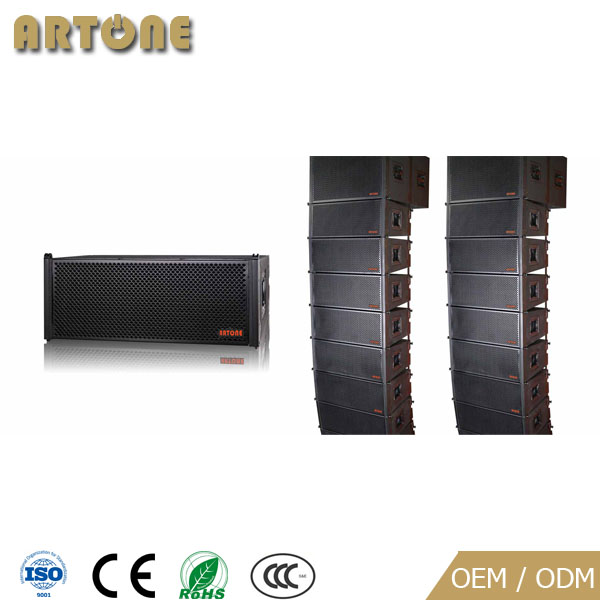

Line Array Speaker AR-112

  • Model:AR-112
  • Power:AR-112
Details

Details

ARTONE AR SERIES LINE ARRAY SYSTEM caters for sound and fashion through latest technology of audio, acoustic, mechanic in speaker design, hanging structure and sound measurement. Of course an exceptional aesthetic vision can not be spared.
Through serious and deep research, ARTONE proudly introduces its AR SERIES LINE ARRAY & MATRIX ARRAY SPEAKER SYSTEM. The advanced technologies which are widely applied together with special optimization technique results in an excellent performance and high efficiency. To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall prediction and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, ARTONE engineers know it fairly well.

Applications
Medium-large scale venues including stadium, concert hall, auditorium, theatre, Music Halls, Night clubs, Large Discotheques, touring show, rental market etc.

Specification

Model No.

AR-112

Frequency Response

65Hz20kHz ± 3dB

Power handling

LF 400W (RMS) 800W (PEAK)

HF 80W (RMS) 160W (PEAK)

Sensitivity

LF 99dB(1W@1M)

HF 111dB(1W@1M)

Max@S.P.L.

LF 125dB(PEAK/1M)

HF 130dB(PEAK/1M)

LF section

12"(310mm) woofer

Nominal impedance

8 ohm

HF section

3"neodymium drive

Nominal impedance

8 ohm

Dispersion

110°H×10°V

Speaker cables

LF 1(+)1(-)  MF/HF 2(+)2(-)

Input connectors

2×NL4MP speakon

Dimensions

343×618×436mm(W×H×D)

Package dimensions

410×690×505mm/0.14cbm

Enclosure

Birch Plywood

Net weight

29 kg

Gross weight

31kg
