Wifi Audio Internet Radio DAB+ Tuner 1U Mixer Class D Power Amplifier PD-1680 with Bluetooth

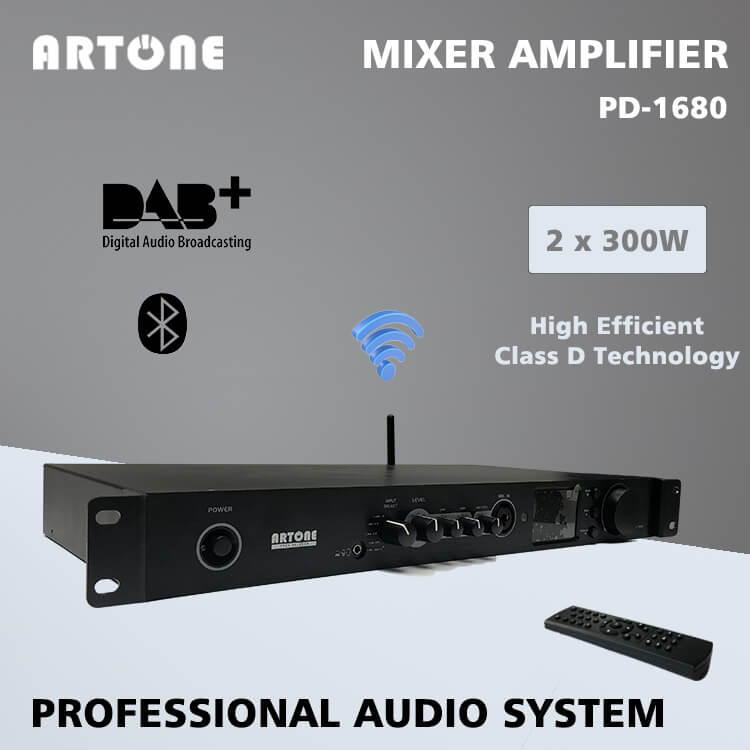

1U class D mixer power amplifier with wifi connecting internet DAB+ radio, the audio booster PD-1680 features powerful wireless DAB and FM tuner for listen local radio station or internet radio. Digital amplifier giving power 300W x 2 to loudspeaker can output high quality sound in small club, cafe shop, restaurants, etc.
  • Model:Wifi Internet DAB Radio 1U Class D Audio Mixer Amplifier PD-1680 with FM Tuner and Bluetooth 5.0
  • Power:300W x 2 / 8 ohm
  • Function:Wifi internet DAB+ radio, 1U class D amplifier, Bluetooth 5.0, FM tuner
Details

Wifi Internet DAB+ Radio Digital 1U Class D Mixer Power Amplifier PD-1680 with Wireless Audio Bluetooth

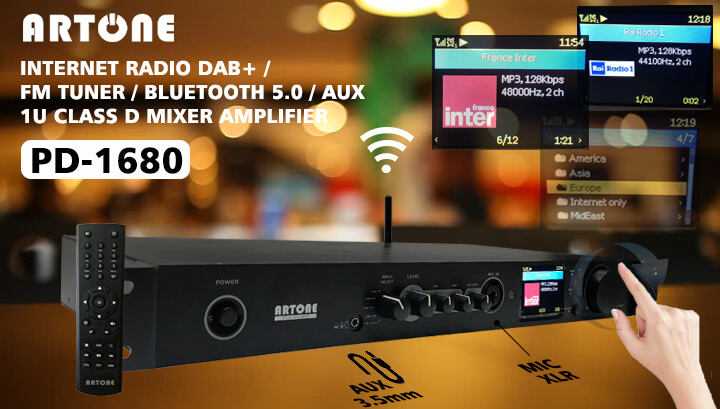

The internet wifi tuner and digital DAB+ radio power amplifier PD-1680 has integarted high definition media player of radio and Bluetooth, 1U class D booster makes it more versatile use for background music or PA sound system, extra 4 external audio inputs are available to switch from front potentiometer, and one 3.5mm jack input link cell phone or portable player.

Wireless Bluetooth 5.0 is adopted on the media player for high quality DLNA music and stable transmission. There's an universal XLR mic jack fit most kind microphone plug, including 6.3mm or XLR plug.

1U digital amplifier PD-1680's internet radio DAB+ player proved stable working in different countries, user is able to select different language (English, French, Spainish, Italian, German, Dutch, Polish, Russian and Chinese) on 2.4 inch color screen, the radio station can switch among America, Europe, Middle East, Asia, Oceania.

The audio signal is visualized with front LED indicator, it clearly shows amplifier working status. The 1U class D amplifier has comprehensive protection circuits, soft start, clip, over temperature, DC protection and so on.



ARTONE 1U digital class D amplifier becomes popular from American and European, mainly because the class D amplifier is able to be designed in compact size, and generate large power. The sound quality is quite good to compare to traditional class AB or Class H amplifiers. ARTONE as a China professional audio manufacturer has perfect solution for the booster amp production in factory.

Thanks to the digital amplification technology, the class D power amplifier PD-1680 is slim design in 1U rackmountable size, giving power at 300W x 2 to 8 ohm loudspeakers. The power even larger that reaches 450W x 2 with 4 ohm speakers, it can drive maximum 800W in bridged mode.



Features:

- Slim and compact 1U rackmount design power amplifier;

- 2.4'' TFT display for media player;

- Language available English, French, Spanish, Italian, German, Dutch, Polish, Russian and Chinese;

- Green tech and energy saving star Class D amplification circuit;

- Power 300W x 2 @ 8 ohm, 450W x 2 @ 4 ohm;

- Built-in internet radio DAB+ media player, FM Tuner and Bluetooth 5.0;

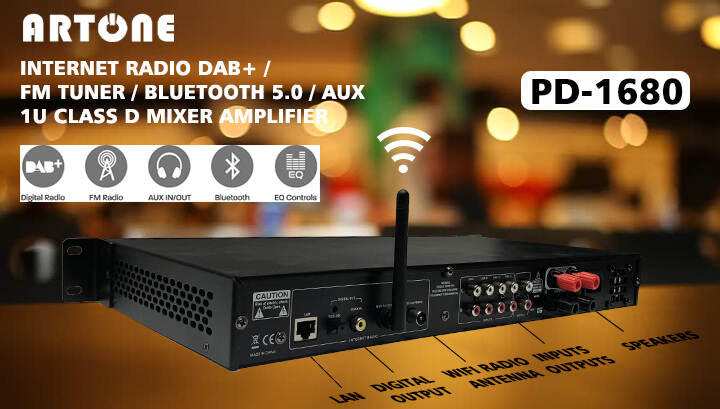

- 3.5mm jack and four RCA AUX inputs for external devices, and RCA, Coaxial, optical audio outputs;

- Multifunction remote controller for audio volume, EQ setting, alarm, etc;

- 1 universal XLR microphone;

- Complete protection for sound amplifier;

- Ideal for night club, fitness store, shopping mall, stage show where high quality sound requires.


Specification

Model No. Digital Internet Radio DAB 1U Class D Power Amplifier PD-1680 with FM Tuner and Bluetooth
Power Stereo (8 ohm) 300W x 2
Power Stereo (4 ohm)
450W x 2
Power Bridged (8 ohm)
800W
Inputs Built-in Wireless Internet Radio DAB FM Local Tuner and Bluetooth, 4 AUX external inputs
Frequency Response 20~20KHz
S/N Ratio 100 dB
Damping Factor > 300 (5 Hz~1KHz)
Input Sensitivity 1v
Output Sensitivity Impedance 1000 mV / 470 ohm, unbalanced RCA input
Dimension 480 x 220 x 44 mm
Weight 3.5 kg


Welcome to send enquiry and contact us for distribution or OEM/ODM cooperation.
