Mini Desktop Public Address Mixer Amplifier PA-E40 PA-E80

The small mini amplifier PA-E40 and PA-E80 comes with built-in audio sources USB, FM tuner and bluetooth player for audio play. Two models for option 40W / 80W, speaker output voltage in 100V/4-16ohm. Treble, bass, master, Mic volume control, 1 microphone jack 6.35mm input and 1 external AUX input RCA. Remote controller allows easier play for music.
  • Model:Small Desktop Mixer Amplifier PA-E40 / PA-E80
  • Power:40W / 80W @ 100V, 4-16 ohm
  • Function:MP3, FM Tuner, Bluetooth Mini Mixer Amplifier
Details

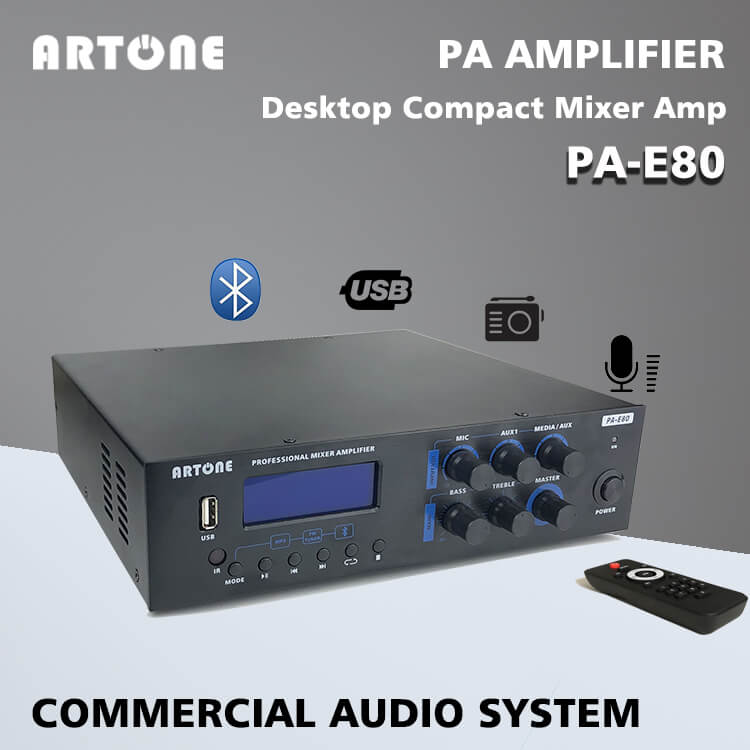

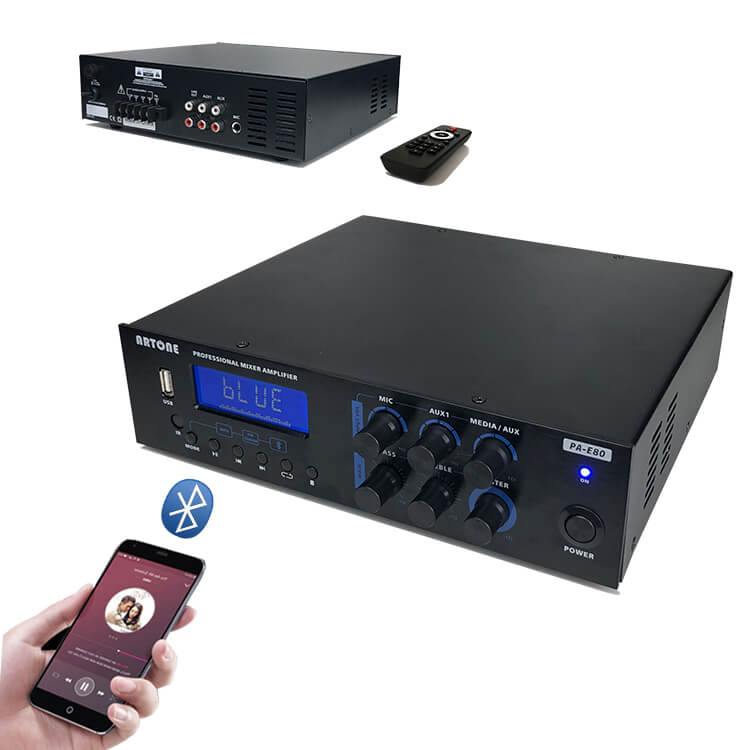

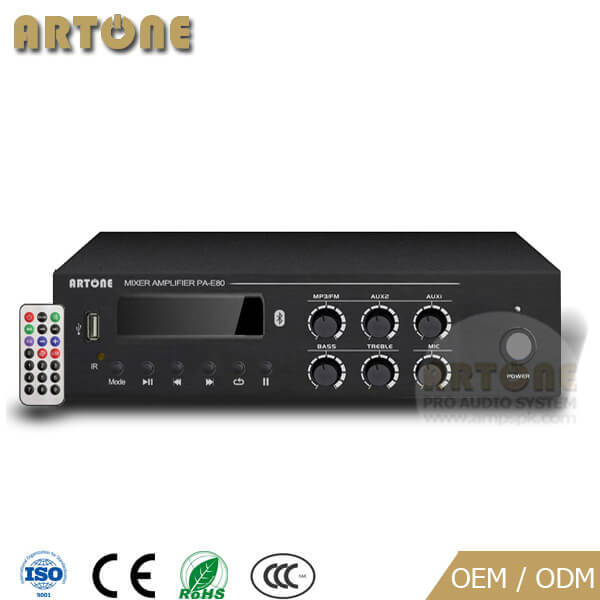

Mini Desktop Public Address Bluetooth Mixer Amplifier PA-E40 PA-E80

The small mini amplifier PA-E40 and PA-E80 is designed in super compact size, it comes with built-in audio sources USB, FM tuner and bluetooth player for audio play. Two models for option 40W / 80W, speaker output voltage in 100V/4-16ohm.

Treble, bass, master, Mic volume control, 1 microphone jack 6.35mm input and 1 external AUX input RCA. Remote controller allows easier play for music.


Features

l  Small amplifier RMS power 40W and 80W @ 100V / 8Ω;

l  Built-in USB, SD card, FM tuner and Bluetooth as audio sources;

l  Bluetooth coverage distance 15 meters;

l  1 wired MIC inputs, 1 AUX inputs;

l  Treble, bass, mic, aux volume control;

l  Shortcircuit, overload, high temperature, clip protection;

l  Best for small shops, stores music system, etc



Specification

Model No.

PA-E40

PA-E80

Rated Power

40W

80W

Speaker Output

100V / 8Ω

Input Sensitivity (1m/1w)

Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input

Frequency Response

60-18KHz

S/N Ratio

Mic: 66 dB | AUX: 80 dB

Material & Finish

Alu panel & Black color

Dimension (mm)

220 x 200 x 66 mm

Weight (kg)

4.5 kg

5.8 kg


Applications



Welcome to contact us for ARTONE audio amplifiers or other sound devices distribution, or OEM/ODM cooperation.
