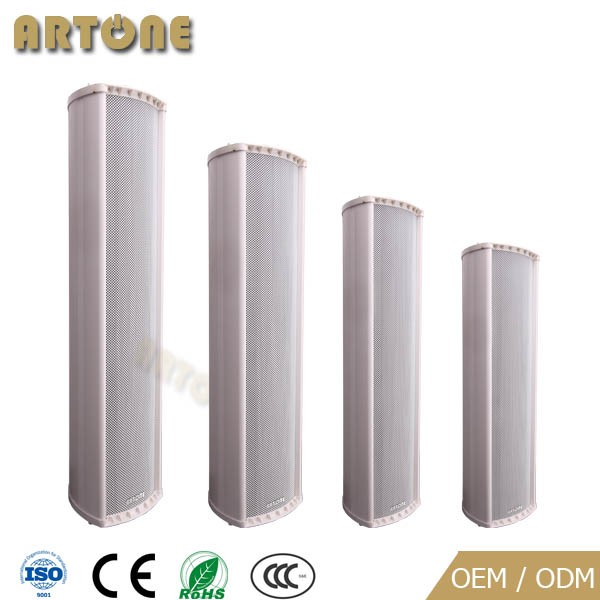

Column Speaker TZ-906 TZ-912 TZ-918 TZ-924

1,6.5’’x1+1’’ horn(TZ-906) / 6.5’’x2+1’’ horn (TZ-912) / 6.5’’x3+1’’ horn (TZ-918) / 6.5’’x4+1’’ horn (TZ-924) 2,70V/100V Line
  • Model:TZ-906 TZ-912 TZ-918 TZ-924
  • Power:60W/120W/180W/240W
Details

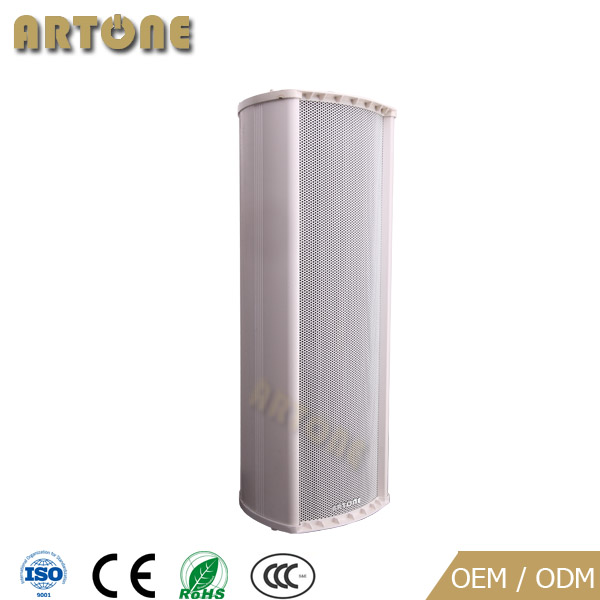

Waterproof column speaker, designed in fashion style and made of aluminium material for outdoor/indoor use, built-in 70V/100V transformer. The column speakers use with 6.5’’ woofer x 1/2/3/4 pieces and one horn speaker, rated power 60W, 80W, 100W and 120 Watts, use for commercial audio system or public address system (pa system) of input voltage 70/100 volt. Fast installation with strong mounting bracket. It is durable and practical and very competitive to satisfy various application of sound system.

Features

l  6.5’’x1+1’’ horn(TZ-906) / 6.5’’x2+1’’ horn (TZ-912) / 6.5’’x3+1’’ horn (TZ-918) / 6.5’’x4+1’’ horn (TZ-924);

l  Rated power 60 Watts (TZ-906), 120 Watts (TZ-912), 180 Watts (TZ-918) , 240 Watts (TZ-924);

l  Input voltage 70/100 Volt;

l  Sensitivity 88dB  (TZ-906) / 89dB (TZ-912) / 90dB (TZ-918) / 91dB (TZ-924);

l  Frequency Response 140~20KHz  (TZ-906) / 130~20KHz (TZ-912) / 120~20KHz (TZ-918) / 100~20KHz (TZ-924)

l  Mounting speaker, strong mounting bracket;

l  Aluminium material body, white color;

l  Dimension 430x250x230mm (TZ-906) / 665x250x230mm (TZ-912) / 905x250x230mm (TZ-918) / 1305x250x230mm (TZ-924)

Specification

Model No.

TZ-906

TZ-912

TZ-918

TZ-924

Rated Power

60W

120W

180W

240W

Speaker

6.5’’wooferx1+1’’horn

6.5’’wooferx2+1’’horn

6.5’’wooferx3+1’’horn

6.5’’wooferx4+1’’horn

Input Voltage

70V/100V Line

Sensitivity

88 dB

89 dB

90 dB

91 dB

Frequency Response

140-20KHz

130-20KHz

120-20KHz

100-20KHz

Mounting Method

Mounting bracket

Color

White

Dimension

430x250x230mm

665x250x230mm

905x250x230mm

1305x250x230mm

Weight

8.8 kg

11.2 kg

14 kg

16.1 kg
