Model No.

PRA-S2200

PRA-S2350

PRA-S2450

PRA-S2650

PRA-S2850

Output (8Ω)

2x200W

2x350W

2x450W

2x650W

2x850W

Output (4Ω)

2x300W

2x525W

2x675W

2x1000W

2x1275W

Frequency Response

 20Hz~20kHz(±0.5dB)

THD+N

<0.02%@8Ω 1kHz

S/N Rate

>100dB(A Weight)

Slew Rate

20V/µ S

Damping Factor

>200@ 8Ω

Crosstalk

>60dB @ 8Ω 1kHz

Input Impedance

20kΩ(Balance)/ 10kΩ(Unalance)

Input Sensitivity

0.775V/1V/1.4V

Protect

DC, Short Circuit, Over Heat and Soft-Start Protection

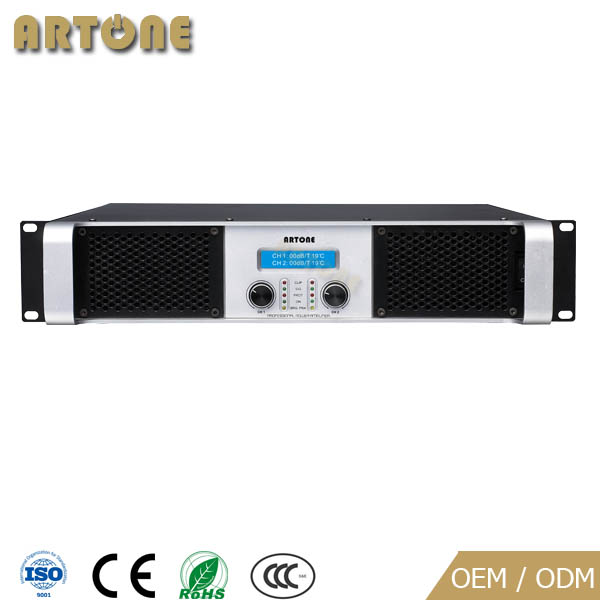

Front Panel CNT

Power Switch, CHA, CHB Volume

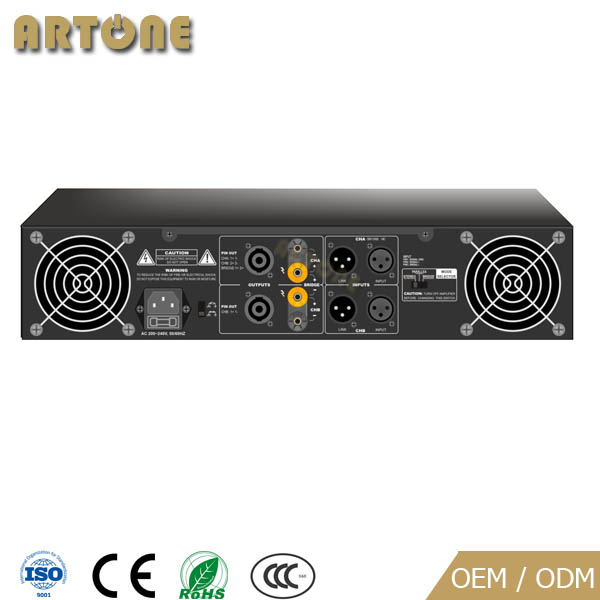

Rear Panel CNT

Mode, Sensitivity

Size

2U(48.2cm/Lx46.5cm/Dx8.8cm/H)

Packing Dimension

570mmx550mmx145mm

Weight

16.00 Kg

18.00 Kg

21.00 Kg

23.00 Kg

26.00 Kg
