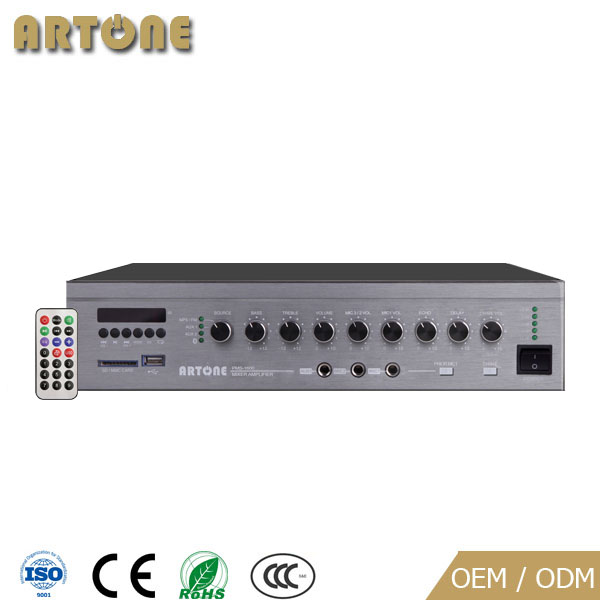

PMS-1600 (60W) and PMS-12000 (120W) are compact design PA mixer amplifier, with built-in MP3, FM and Bluetooth player, 3 microphones has echo, delay effect adjustable. It is ideal to use in stores, markets, school, mosque or church place for public address paging and background music system.
Features
l Medium size design, built-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs (front 6.3 jack and rear RCA) as audio sources, audio sources switchable from each other;
l Strong power RMS 60W and 120W;
l 4-16 ohm, 70V, 100V speaker output;
l Treble, bass, mic, echo, delay, chime and master volume control;
l Mic1 priority select;
l High quality copper transformer ensures best sound performance;
l Reminder melody chime button;
l LED indicator, Shortcircuit, over heat, over load protection;
l AC 220-240V input power supply;
l Remote controller
Specification
|
Model No. |
PMS-1600 |
PMS-12000 |
|
Power |
60W |
120W |
|
Speaker Outputs |
4-16Ω, 70V, 100V |
|
|
Input Sensitivity |
Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input |
|
|
Output Sensitivity & Impedance |
1000mV/470Ω, Unbalanced RCA output |
|
|
Frequency Response |
30-20KHz |
|
|
S/N Ratio |
Mic: 66 dB | AUX: 80 dB |
|
|
THD |
< 1% at 1KHz, 1/3 rated power |
|
|
Audio Source |
MP3 (USB/SD), Tuner, Bluetooth, AUX input x 2 |
|
|
Protection |
High temperature, overload & short circuit |
|
|
Power Supply |
220V~240V 50/60Hz or 110V |
|
|
Material & Finish |
Aluminum front panel, metal case |
|
|
Dimension |
310 x 240 x 70 mm |
|
|
Weight |
6.8 kg |
8.5 kg |
