1U Class-AB 120W Mixer Amplifier for Public Address Sound System PMA-1U120

Mixer amplifier PMA-1U120 is 70v/100v commercial sound system, made in Class-D high efficient power booster. It is designed in 1U size easy to carry and install into 19'' rack. There are 3 XLR/Jack 6.3mm mic inputs and 2 AUX. With 3 trigger of Siren, Chime and EMC. Each mic input has Phantom power available. Mic1 has priority than other music/audio. Perfect to use in restaurants, shops, stores, cafeteria, warehouse, fitness area, office buildings, etc.
  • Model:PMA-1U060, PMA-1U120, PMA-1U240
  • Power:60W, 120W, 240W (70V/100V/4~16Ω)
  • Function:1U Amplifier, Class-D Mixing Amplifier, XLR mic with Phantom Power, Emergency Trigger
Details

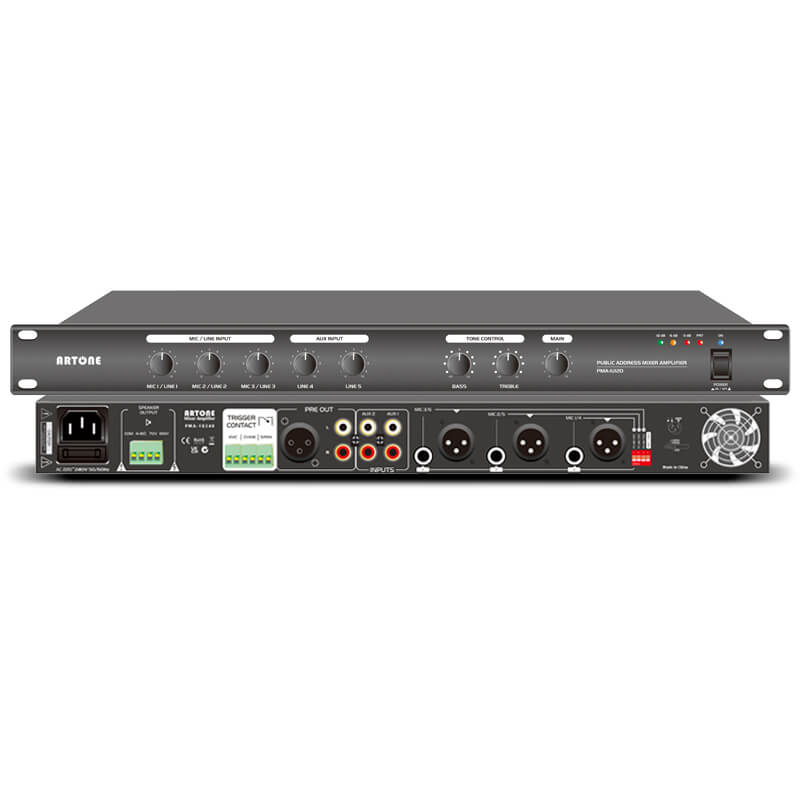

1U Public Address System 100V Mixer Amplifier 120W with XLR Inputs PMA-1U120

The ARTONE public address mixing amplifier PMA-1U120 is a 120w commercial audio system, using stable Class-AB technology to elevate stability of power processing, while keeping perfect sound at the same time.
Thanks for the amplifier tranformer solution, the mixer amplifier PMA-1U120 increase power output to 120W for 70V/100V sound system, and having it in small and compact 1U rack height (44mm) only, this makes the booster in lightweight and easy to carry or place to where for installation.

PMA-1U120 tested work super stable under the 100V public address system with various ceiling speakers, wall speakers, horn speakers, monitor speakers, column speakers, pendant speakers, projector speakers and garden speakers. It is adopting high quality transformer for power supply, which can handle different working/using condition in different regions.

3 XLR/Jack 6.3mm inputs available for DIP phantom power select, there are 2 AUX input RCA allowed external audio connected. The shortcircuit trigger is good for emergency notification, there are 3 triggers inputs to active EMC, CHIME and SIREN signal.



Features:


  • Class-AB mixing amplifier PMA-1U120 for 70v/100v/4-16ohm public address system;
  • Compact and slim 1U height mixer amplifier for 19'' rack mount installation;
  • Output 120W power with euroblock connector terminal;
  • 3 XLR Mic/Line inputs with Phantom power DIP switch;
  • Mic1 priority and VOX setting at back panel;
  • 2 AUX inputs and volume adjust knob in front panel;
  • EMC/Chime/Siren trigger for external alarm or evacuation devices;
  • Variable speed fan for cooling and heatsink in good condition;
  • Protective circuit of shortcircuit, overheat, overload




Speficiation

Model 120W Public Address Mixing Amplifier PMA-1U120
Output Power 120W
Line Voltage 70V / 100V / 4~16 ohm
Input 3 XLR/Jack 6.3mm, AUX input RCA x 2, Trigger x 3
Output XLR / RCA
Frequency Response 20~20KHz
S/N Ratio 75 dB
Distortion < 0.5% at 1KHz
Measurement 483 x 350 x 44 mm
Weight 10 kg
