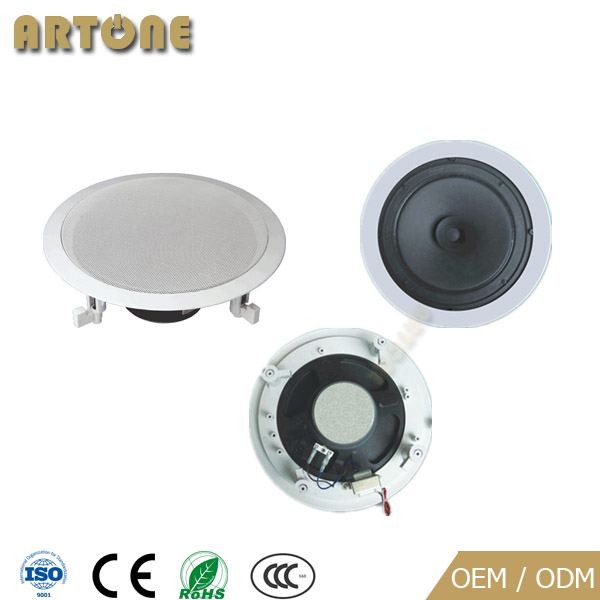

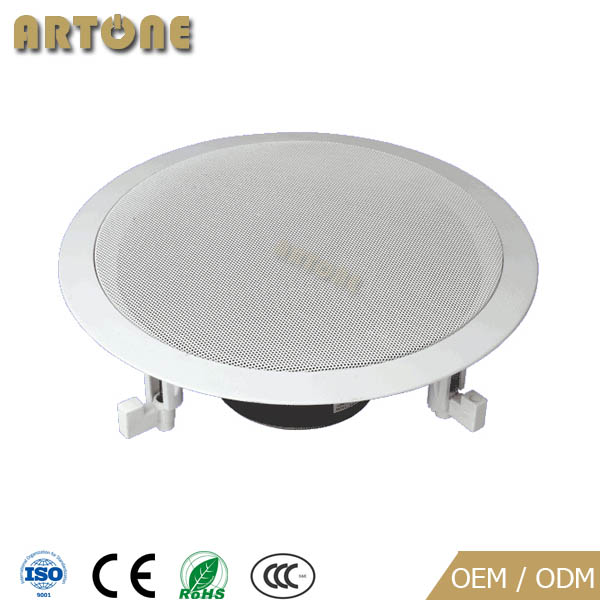

Ceiling Speaker CS-356 CS-366 CS-381

1.full range 5.25 inch, 6.5 inch and 8 inch speaker 2. ABS material
  • Model: CS-356 CS-366 CS-381
  • Power:6W/8W/10W
Details

Ceiling mount speaker, designed in ABS material, with 5.25 inch, 6.5 inch and 8 inch full range speaker, rated power 6W to 10 Watts, use for commercial audio system or public address system (pa system) of input voltage 100 volt. Fast installation with 4 dog ear clamp. It is durable and practical and very competitive to satisfy sound system at economical budget.

Features

Full range 5.25’’ (CS-356) / 6.5’’ speaker (CS-366) / 8’’ speaker (CS-381);

Rated power 6 Watts (CS-356), 8 Watts (CS-366), 10 Watts (CS-381);

Input voltage 100 Volt;

Sensitivity 88dB  (CS-356) / 89dB (CS-366) / 90dB (CS-381);

Frequency Response 110~18KHz  (CS-356) / 100~18KHz (CS-366) / 90~18KHz (CS-381)

Ceiling mount speaker, dog ear clamp mounting;

ABS material body

Cutout size 170mm  (CS-356) / 200mm (CS-366) / 240mm (CS-381)

Dimension 203 x 70mm (CS-356) / 230 x 80mm (CS-366) / 270 x 90mm (CS-381)

Specification

Model No.

CS-356

CS-366

CS-381

Rated Power / Max Power

6W / 10W

8W / 15W

10W / 18W

Speaker

Full range 5.25’’ speaker

Full range 6.5’’ speaker

Full range 8’’ speaker

Input Voltage

100V Line

Sensitivity

88 dB

89 dB

90 dB

Frequency Response

110-18KHz

100-18KHz

90-18KHz

Mounting Method

Dog ear clamp

Cutout Size

170 mm

200 mm

240 mm

Dimension

203 x 70 mm

230 x 80 mm

270 x 90 mm
