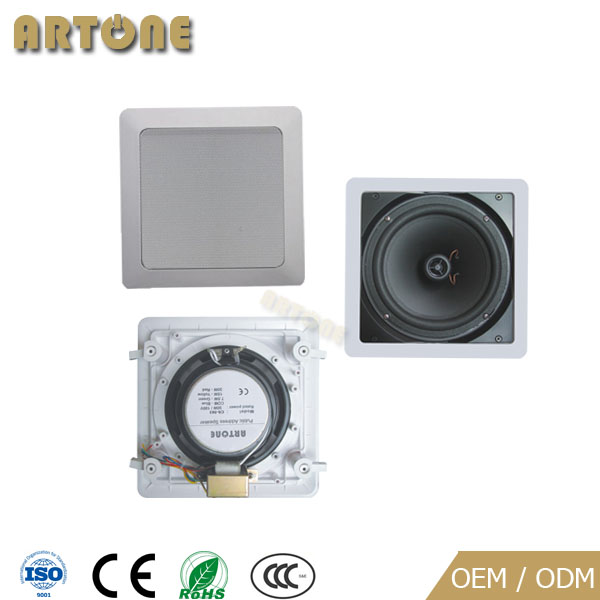

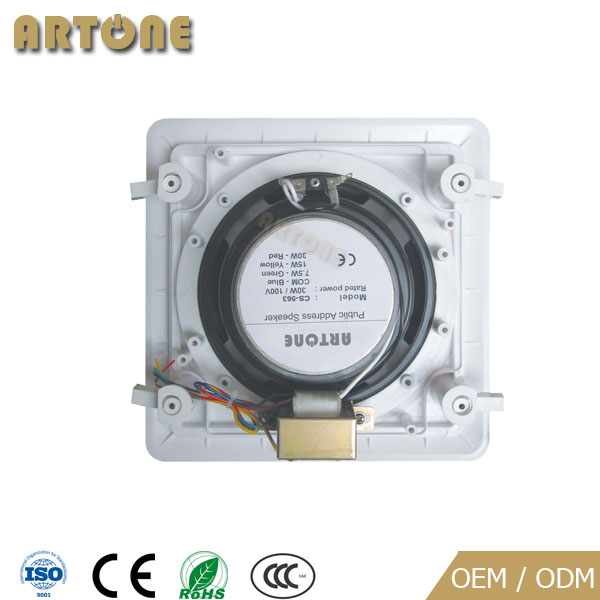

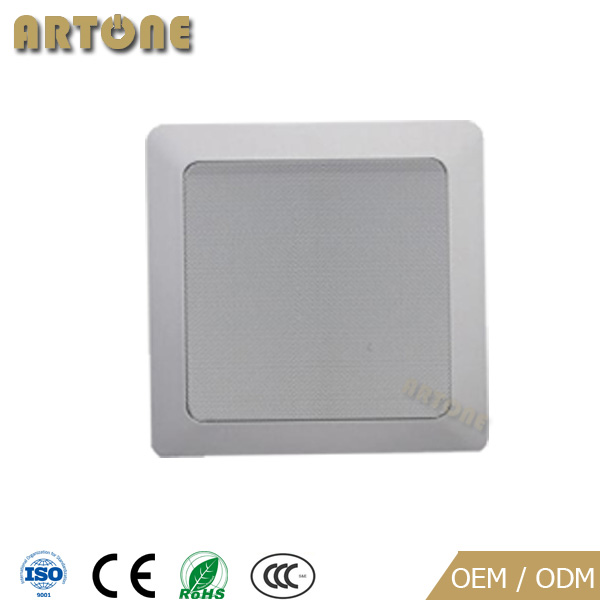

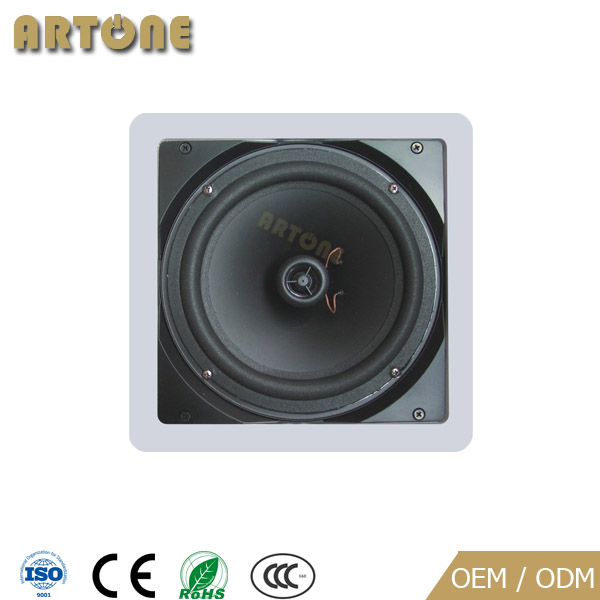

Ceiling Speaker CS-552 CS-563 CS-584

1. coaxial 5 inch, 6 inch and 8 inch speaker 2. ABS body and square shape
  • Model:CS-552 CS-563 CS-584
  • Power:20W/30W/40W
Details

Ceiling mount speaker, designed in ABS body and square shape, with coaxial 5 inch, 6 inch and 8 inch speaker, rated power 20W, 30W and 40 Watts, used for commercial audio system or public address system (pa system) of input voltage 100 volt. Fast installation with 4 dog ear clamp. It is durable and practical and very competitive to satisfy middle or high level sound system.

Features

5’’ (CS-552) / 6’’ speaker (CS-563) / 8’’ coaxial speaker (CS-584);

Rated power 20 Watts (CS-552), 30 Watts (CS-563), 40 Watts (CS-584);

Input voltage 100 Volt;

Sensitivity 88dB  (CS-552) / 89dB (CS-563) / 90dB (CS-584);

Frequency Response 95~20KHz  (CS-552) / 90~20KHz (CS-563) / 85~20KHz (CS-584)

Ceiling mount speaker, dog ear clamp mounting;

ABS material body;

Cutout size 148x148mm  (CS-552) / 190x190mm (CS-563) / 225x225mm (CS-584)

Dimension 190x190x80mm (CS-552) / 220x220x95mm (CS-563) / 255x255x100mm (CS-584)

Specification

Model No.

CS-552

CS-563

CS-584

Rated Power / Max Power

20W / 30W

30W / 45W

40W / 60W

Speaker

Coaxial 5’’ speaker

Coaxial 6’’ speaker

Coaxial 8’’ speaker

Input Voltage

100V Line

Sensitivity

88 dB

89 dB

90 dB

Frequency Response

95-20KHz

90-20KHz

85-20KHz

Mounting Method

Dog ear clamp

Cutout Size

148x148 mm

190x190 mm

225x225 mm

Dimension

190x190x80 mm

220x220x95 mm

255x255x100 mm
