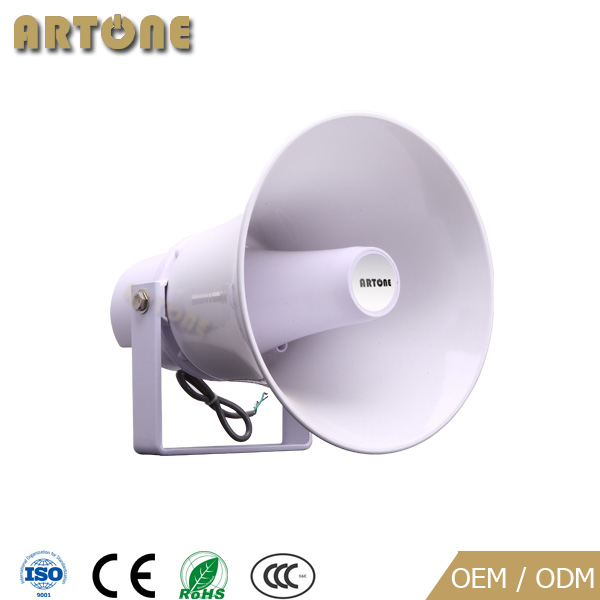

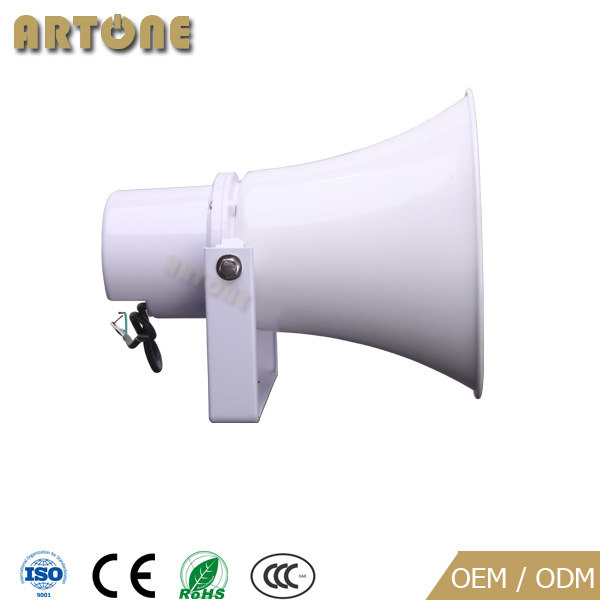

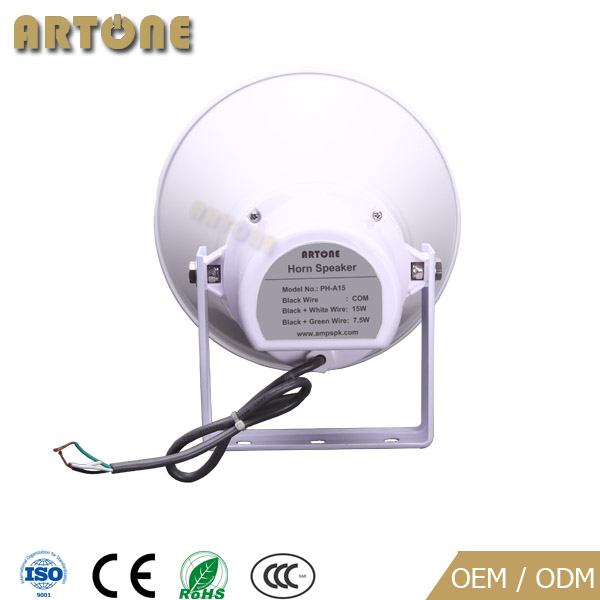

All weather resistant waterproof horn speaker PH-A15 PH-A30 PH-A50, designed in duarable aluminium body, built-in 70V/100V transformer and horn speaker driver to deliver wide frequency response 350~7KHz and reduces line losses of long distance sound transaction, rated power at 15/30/50W to suit different applications, i.e. parking area, playground, public park or garden, train or bus station. Fast installation wall mounting bracket and angle adjustable. The speaker is an ideal choice for indoor/outdoor industrial or commercial or public address sound system. It is durable and practical and very competitive to satisfy wide or open area’s architechtural audio need.
Features
Indoor/Outdoor horn speaker rated power 15/30/50 Watts;
Input voltage 70V/100 Volt;
Sensitivity 106dB/107dB/108dB;
Frequency Response 450~5KHz/380~6KHz/350~7KHz
Adjustable wall mount horn speaker with stainless wall mounting parts;
Strong aluminium material body;
Dimension ¢200x230mm/¢246x292mm/¢325x350mm
Weight:1.4kg/2.2kg/3.5kg
Specification
Model No. |
PH-A15 |
PH-A30 |
PH-A50 |
Rated Power |
15W |
30W |
50W |
Power Taps |
15W/7.5W/3.8W/8Ω |
30W/15W/7.5W/8Ω |
50W/25W/12.5W/8Ω |
Input Voltage |
70V/100V Line or 8Ω |
||
Sensitivity |
106 dB |
107 dB |
108 dB |
Frequency Response |
450~5KHz |
380~6KHz |
350~7KHz |
Mounting Method |
Wall mounting bracket |
||
Dimension |
¢200x230mm |
¢246x292mm |
¢325x350mm |
Weight |
1.4kg |
2.2kg |
3.5kg |
