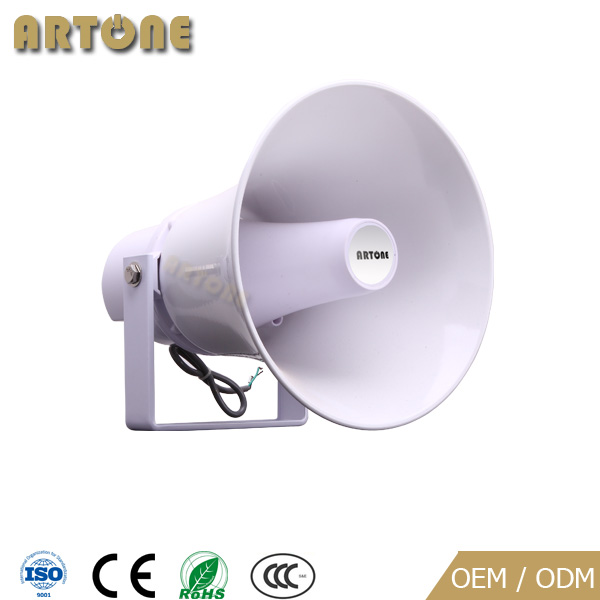

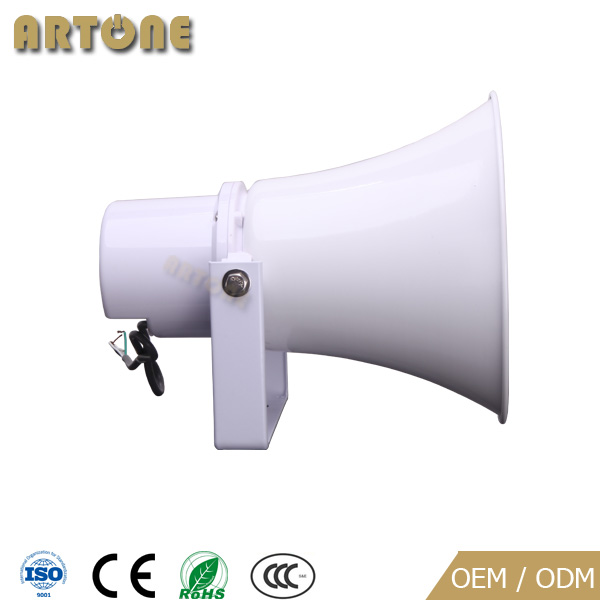

All weather resistant waterproof horn speaker PH-B10 PH-B15 PH-B30, designed in duarable ABS body, built-in 70V/100V transformer and horn speaker driver to deliver wide frequency response 300~8KHz and reduces line losses of long distance sound transaction, rated power at 10/15/30W to suit different applications, i.e. parking area, playground, public park or garden, train or bus station. Fast installation wall mounting bracket and angle adjustable. The speaker is an ideal choice for indoor/outdoor industrial or commercial or public address sound system. It is durable and practical and very competitive to satisfy wide or open area’s architechtural audio need.
Features
Indoor/Outdoor horn speaker rated power 10/15/30 Watts;
Input voltage 70V/100 Volt;
Sensitivity 96dB/102dB/106dB;
Frequency Response 400~8KHz/350~8KHz/300~8KHz
Adjustable wall mount horn speaker with stainless wall mounting parts;
Strong ABS material body;
Dimension ¢140x190mm/¢200x230mm/¢246x292mm
Weight:1.2kg/1.5kg/2.3kg
Specification
Model No. |
PH-B10 |
PH-B15 |
PH-B30 |
Rated Power |
10W |
15W |
30W |
Power Taps |
10W/5W/2.5W/8Ω |
15W/7.5W/3.8W/8Ω |
30W/15W/7.5W/8Ω |
Input Voltage |
70V/100V Line or 8Ω |
||
Sensitivity |
96 dB |
102 dB |
106 dB |
Frequency Response |
400~8KHz |
350~8KHz |
300~8KHz |
Mounting Method |
Wall mounting bracket |
||
Dimension |
¢140x190mm |
¢200x230mm |
¢246x292mm |
Weight |
1.2kg |
1.5kg |
2.3kg |
