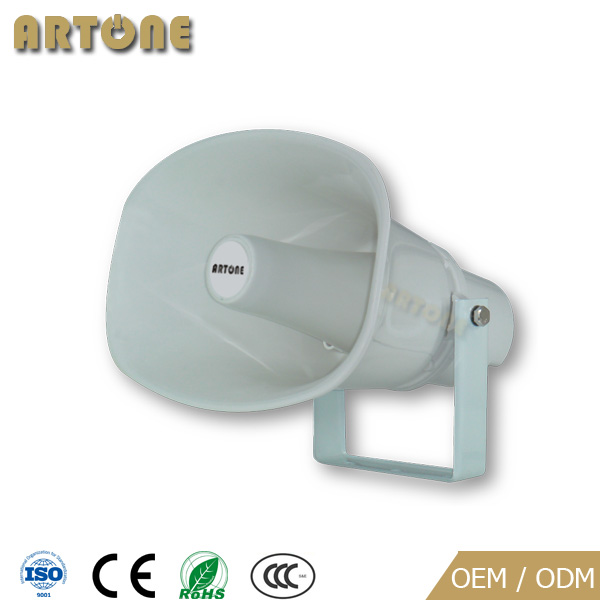

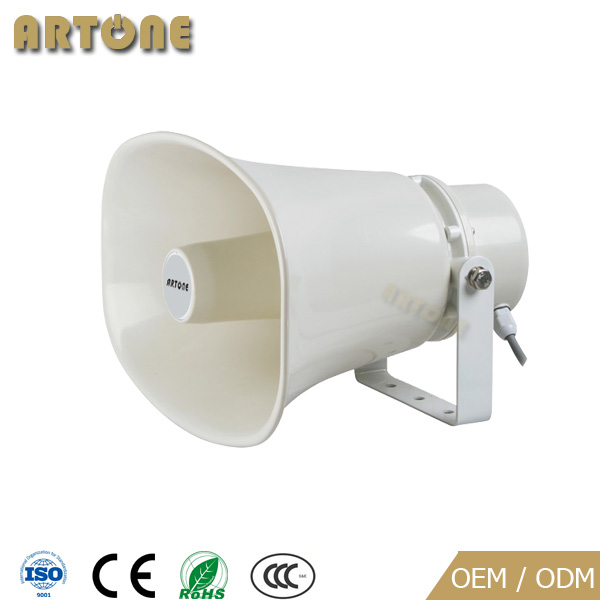

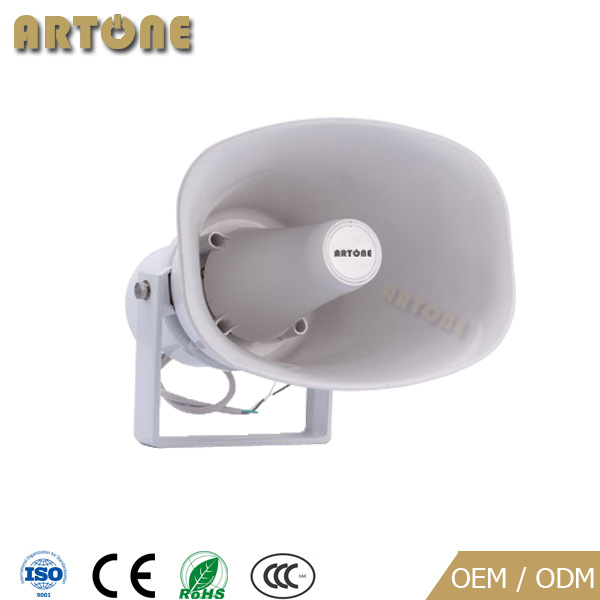

Horn Speaker PH-C15 PH-C30

1.built-in 70V/100V transformer 2.ABS body
  • Model:PH-C15 PH-C30
  • Power:15/30 Watts
Details

All weather resistant waterproof horn speaker PH-C15 PH-C30, designed in duarable ABS body, built-in 70V/100V transformer and horn speaker driver to deliver wide frequency response 300~8KHz and reduces line losses of long distance sound transaction, rated power at 15/30W to suit different applications, i.e. parking area, playground, public park or garden, train or bus station. Fast installation wall mounting bracket and angle adjustable. The speaker is an ideal choice for indoor/outdoor industrial or commercial or public address sound system. It is durable and practical and very competitive to satisfy wide or open area’s architechtural audio need.

Features

Indoor/Outdoor horn speaker rated power 15/30 Watts;

Input voltage 70V/100 Volt;

Sensitivity 105dB/106dB;

Frequency Response 310~8KHz / 300~8KHz;

Adjustable wall mount horn speaker with stainless wall mounting parts;

Strong ABS material body;

Dimension 228x149X232mm/325x185x300mm;

Weight: 1.6kg/2.4kg

Specification

Model No.

PH-C15

PH-C30

Rated Power

15W

30W

Power Taps

15W/7.5W/3.8W/8Ω

30W/15W/7.5W/8Ω

Input Voltage

70V/100V Line or 8Ω

Sensitivity

105 dB

106 dB

Frequency Response

310~8KHz

300~8KHz

Mounting Method

Wall mounting bracket

Dimension

228x149X232mm

325x185x300mm

Weight

1.6kg

2.4kg
