Half Rack-mount 100V Mini RS232 Control Class-D Mixer Amplifier PMS-160D

Mini design Class D amplifier PMS-160D is a 9.5'' half-rack mounting 60W mixing amp, integrated audio source of USB, TF card, Bluetooth and FM tuner (option). The PMS-160D amplifier adopt high efficient digital solution for small and medium sound system.

The digital mixer amplifier output 60W power at 70/100V line able to parallel connect ceiling speakers, wall mount speakers, column speakers, pendant speakers, projector speakers or garden landscape speakers for most of commercial sound system, like shops/stores, cafe/wine bar, classroom/multimedia room or conference room.

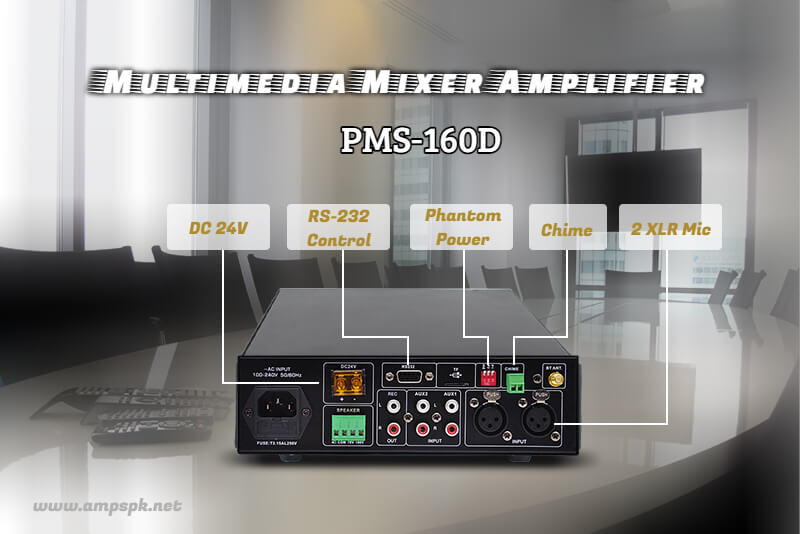

In addition to above features, that mini mixer amplifier has 2 XLR microphone inputs and allows 48V phantom power to drive condensor mics. There's chime trigger available for receiving voltage to activate signal. Special function of RS-232 control is included for communication with multimedia center, receive protocol commander from central control system, makes class or meeting room more intelligent.

Thanks to the digital technology, allows our engineer makes the mini tabletop amplifier in small and compact size. ARTONE mixing amplifier PMS-160D can be conveniently put on the desk or table at discreet place.

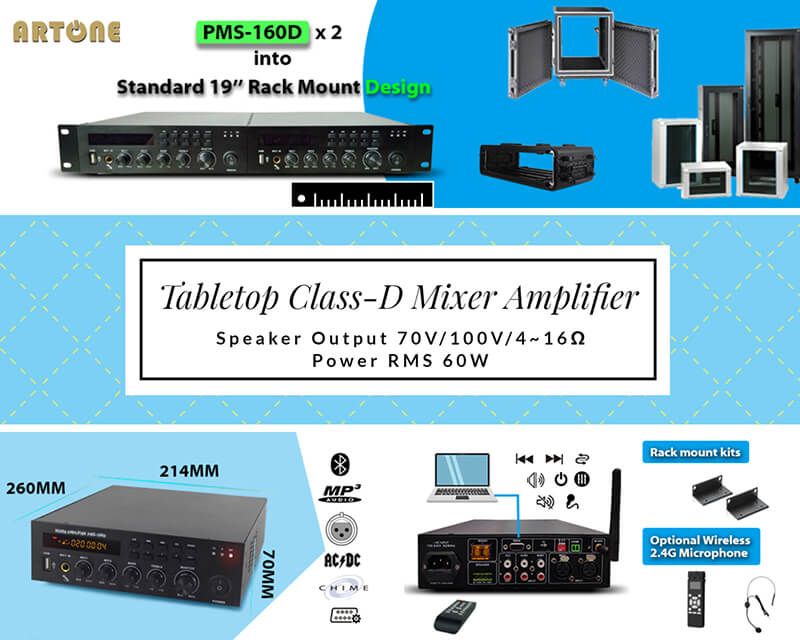

Given that half 19'' rack mount width, the 9.5'' mixer amplifier is able to be combined into a full rack mount device with another amp PMS-160D, the combo audio amplifier can bring more possibility to the whole sound system.

Features:

- Small and compact 9.5'' half rack-mount mini desktop PA mixer amplifier;

- Digital Class-D mixing amplifier output power 60W @ 100V;

- Light weight, and quite working;

- Built-in USB, TF card slot, Bluetooth, or radio tuner;

- XLR mic inputs and 1 Jack 6.3mm microphone at front;

- Hi/Lo-Z application for 70V/100V or  4-8 ohm audio system;

- Preset EQ include Pop, Rock, Jazz, Classical;

- Treble, bass, master volume control, and Mic1&2 control;

- Phantom power 48V for 2 XLR mic at back of amplifier;

- RS-232 control allows multimedia classroom or conference smart system have better integration with Audio/video;

- Backup with DC 24V input for vehicles and portable battery application;

- Standalone mixer amplifier for background music, or combo installed into standard 19'' rack;

- Optional use of adding wireless microphone in 2.4G frequency, ideal for small area tutorial, teaching, religious praying or movable paging.

Specification
