Ceiling Speaker CS-252D CS-263D CS-284D

Date: 2014-05-26   Clicked: 5062

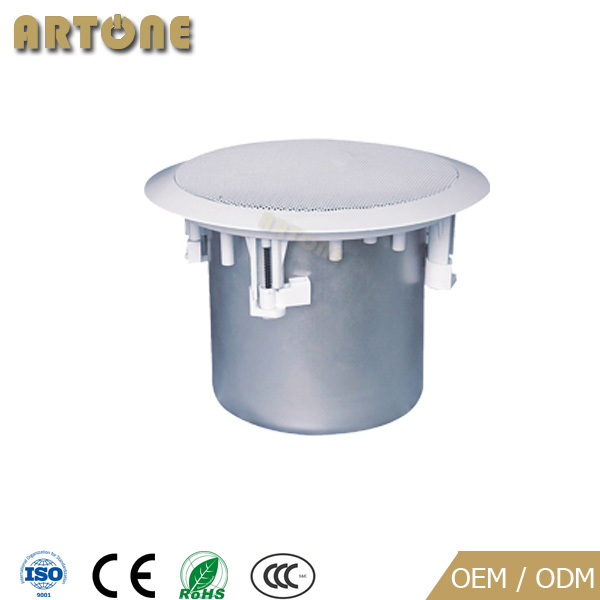

Ceiling mount speaker, designed in ABS body with back enclosure (fire dome), with coaxial 5 inch, 6 inch and 8 inch speaker, rated power 20W, 30W and 40 Watts, use for commercial audio system or public address system (pa system) of switchable input voltage 100 volt or 8Ω, power tabs 1/2 and 1/4 . Fast installation with 4 dog ear clamp. It is durable and practical and very competitive to satisfy middle or high level sound system.

Features

5’’ (CS-252D) / 6’’ speaker (CS-263D) / 8’’ coaxial speaker (CS-284D);

Rated power 20 Watts (CS-252D), 30 Watts (CS-263D), 40 Watts (CS-284D);

Input voltage 100 Volt / 8Ω, with power tabs select at 1/2 power, 1/4 power;

Sensitivity 88dB  (CS-252D) / 89dB (CS-263D) / 90dB (CS-284D);

Frequency Response 90~20KHz  (CS-252D) / 85~20KHz (CS-263D) / 80~20KHz (CS-284D)

Ceiling mount speaker, dog ear clamp mounting;

ABS material body with metal fire dome;

Cutout size 170mm  (CS-252D) / 200mm (CS-263D) / 240mm (CS-284D)

Dimension 203 x 145mm (CS-252D) / 230 x 150mm (CS-263D) / 270 x 185mm (CS-284D)

Specification

Model No.

CS-252D

CS-263D

CS-284D

Rated Power / Max Power

20W / 30W

30W / 45W

40W / 60W

Speaker

Coaxial 5’’ speaker

Coaxial 6’’ speaker

Coaxial 8’’ speaker

Input Voltage & Power Tabs

5W/10W/20W@100V / 8Ω

7.5W/15W/30W@100V / 8Ω

10W/20W/40W@100V / 8Ω

Sensitivity

88 dB

89 dB

90 dB

Frequency Response

90-20KHz

85-20KHz

80-20KHz

Mounting Method

Dog ear clamp

Cutout Size

170 mm

200 mm

240 mm

Dimension

203 x 145 mm

230 x 150 mm

270 x 185 mm
