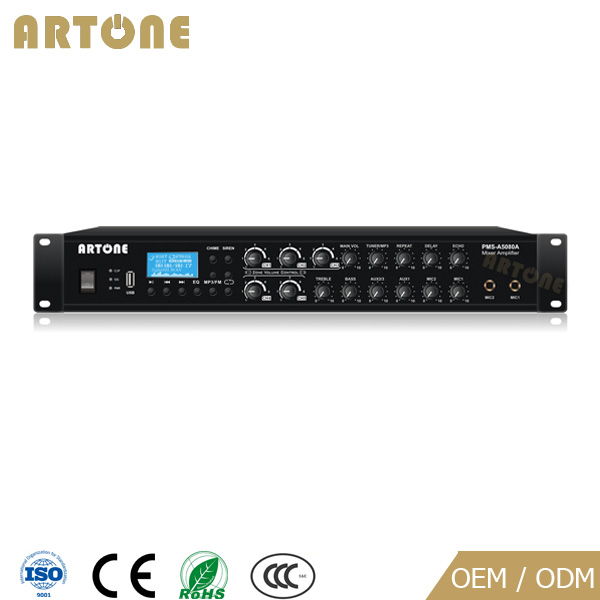

5 Zone Mixer Amplifier with USB PMS-A5080A

Date: 2014-03-13   Clicked: 5027

5 Zone Mixer Amplifier PMS-A5080A & PMS-A5120A & PMS-A5180A & PMS-A5240A, is a slim design commercial mixer amplifier, which built-in 80W/120W/180W/240W amplifier and 2 audio sources (USB and FM Tuner). Master volume, zone volume and tone control for power output. 3 AUX inputs, 2 MIC 6.3 Jack (MIC1 has top priority) and 1 audio output. Chime and siren for reminder before speak or urgent emergency.

Features

l  Built-in USB, FM tuner and 3 external AUX inputs as audio sources;

l  Strong power RMS 80W / 120W / 180W / 240W;

l  Volume and tone (treble & bass) control for MP3/Tuner, AUX and MICs;

l  Zone1~Zone5 volume control independently;

l  LCD display of MP3 music name, time and EQ (5 modes);

l  Chime and siren button for reminder;

l  4-16 ohm, 70V, 100V speaker output;

l  High quality copper transformer ensures best sound performance;

l  Shortcircuit, over heat, over load protection;

l  Remote controller

Specification

Model No.

PMS-A5080A

PMS-A5120A

PMS-A5180A

PMS-A5240A

Power

80W

120W

180W

240W

Speaker Outputs

4-16Ω, 70V100V

Input Sensitivity

Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:250mV/15KΩ RCA input

Tuner Frequency

FM:87.5~108MHz

Frequency Response

90-16KHz

S/N Ratio

Mic: 66 dB | AUX: 75 dB

THD

< 1% at 1KHz, 1/3 rated power

Audio Source

MP3 (USB), Tuner (FM), AUX input x 3

Protection

High temperature, overload & short circuit

Power Supply

220V~240V 50/60Hz or 110V

Material & Finish

Aluminum front panel, metal case

Dimension

486 x 310 x 70 mm

Weight

5.9 kg

7.3 kg

8.6 kg

9.2 kg
