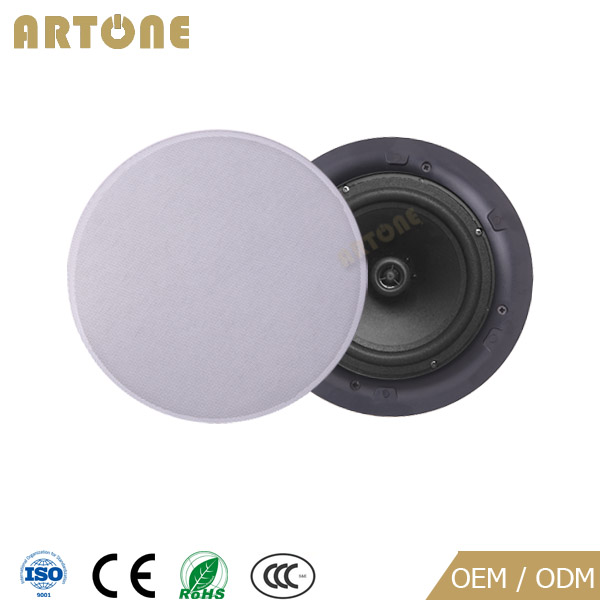

frameless Ceiling Speaker CS-242Z series

Ceiling mount speaker, frameless designed in ABS material, with coaxial 4 inch, 5 inch and 6 inch speaker, rated power 20W, 30W and 40 Watts, use for commercial audio system or public address system (pa system) of input voltage 100 volt. Fast installation with 4 dog ear clamp. It is durable and practical and very competitive to satisfy sound system at economical budget.

Features

Coaxial 4’’ (CS-242Z) / 5’’ speaker (CS-253Z) / 6’’ speaker (CS-264Z);

Rated power 20 Watts (CS-242Z), 30 Watts (CS-253Z), 40 Watts (CS-264Z);

Input voltage 100 Volt;

Sensitivity 86dB  (CS-242Z) / 87dB (CS-253Z) / 88dB (CS-264Z);

Frequency Response 95~20KHz  (CS-242Z) / 90~20KHz (CS-253Z) / 85~20KHz (CS-264Z)

Ceiling mount speaker, dog ear clamp mounting;

ABS material body

Cutout size 160mm  (CS-242Z) / 180mm (CS-253Z) / 200mm (CS-264Z)

Dimension 180 x 80mm (CS-242Z) / 203 x 85mm (CS-253Z) / 232 x 90mm (CS-264Z)
