Background music audio system wall speaker BS-120 for pubs and shops

Date: 2018-03-10   Clicked: 6602

Background music audio system for pubs and shops

The ARTONE audio products are widely used in many commercial sound system and home audio system, from small shops to large mall, ceiling speakers, wall mount speakers, pendant speakers or outdoor column speaker and garden speakers are installed for the sound systems.

Blew is an example, using small wall mount satellite speaker BS-120 for a cake shop, which has budget cost for the needs. Yet it comes to a surprising result of the sound performance, the shop owner was delighted by choosing the right supplier for his audio system.

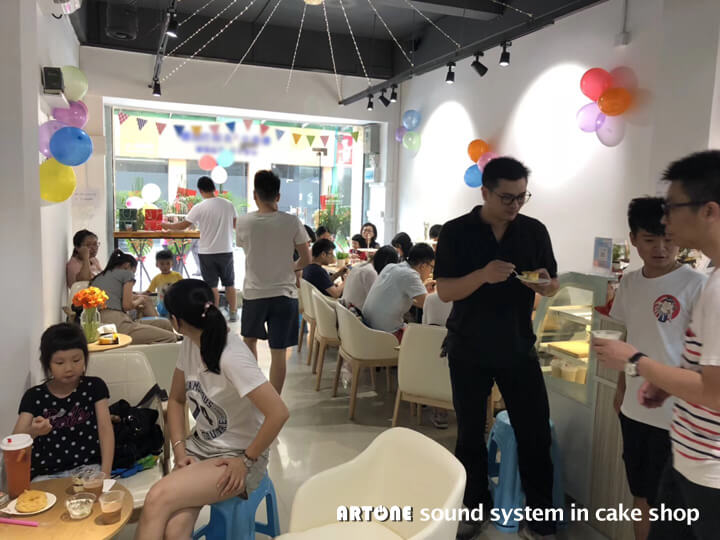

It is a small cake shop, installed 4 wall mount speaker BS-120 for its sound system, black and white color to ambient to different decoration surroundings. One desktop mixer amplifier PMS-1060D and wired microphone MIC-66 for music play and party announcing system to the pubs and shops.

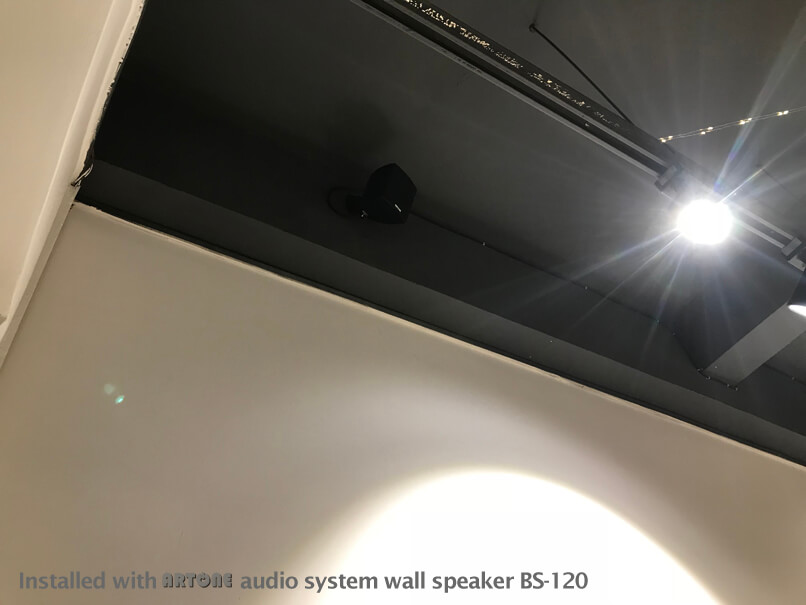

The speaker for that shop is BS-120, which can be installed on the wall, with swiveling bracket, it can give 20W louder sound to different directions. Either 70V/100V or 8 ohm line is able to compatible with the system.

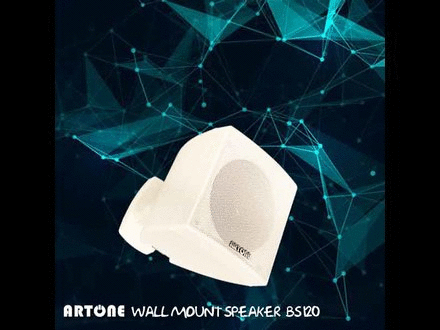

Wall mount speaker BS-120, designed in ABS body, with a 2-way coaxial 3.5 inch speaker, rated power 40 Watts, use for home audio system or public address system (pa system) of input voltage 70/100 volt and power tabs at 1/2, 1/4 power or 8Ω. Fast installation wall mounting bracket and angle adjustable. The speaker also can be used in home theater system. It is durable and practical and very competitive to satisfy medium or high level architectural sound system.


Features

• 2-way coaxial 3.5’’ speaker;

• Rated power 20 Watts, max power 40 Watts;

• Input voltage 70/100 Volt, power tabs at 1/2, 1/4 power or 8Ω;

• Sensitivity 86±3 dB;

• Frequency Response 90~20KHz

• Adjustable wall mount speaker with wall mounting parts;

• Strong ABS material body;

• Dimension 128x128x131mm

• Weight:1.5kg


Specification

Model No. BS-120
Rated Power / Max Power 20W / 40W
Speaker 2-way coaxial 3.5’’ speaker
Input Voltage 70/100V Line and power tabs at 1/2, 1/4 power or 8Ω
Sensitivity 86±3dB
Frequency Response 90-20KHz
Mounting Method Onwall mounting speaker
Colour White / Black
Dimension 128 x 128 x 131 mm
Weight 1.5 kg


Please contact us if interested in any of our products, ARTONE audio welcome you to inquiry and cooperate with us. Thank you!
