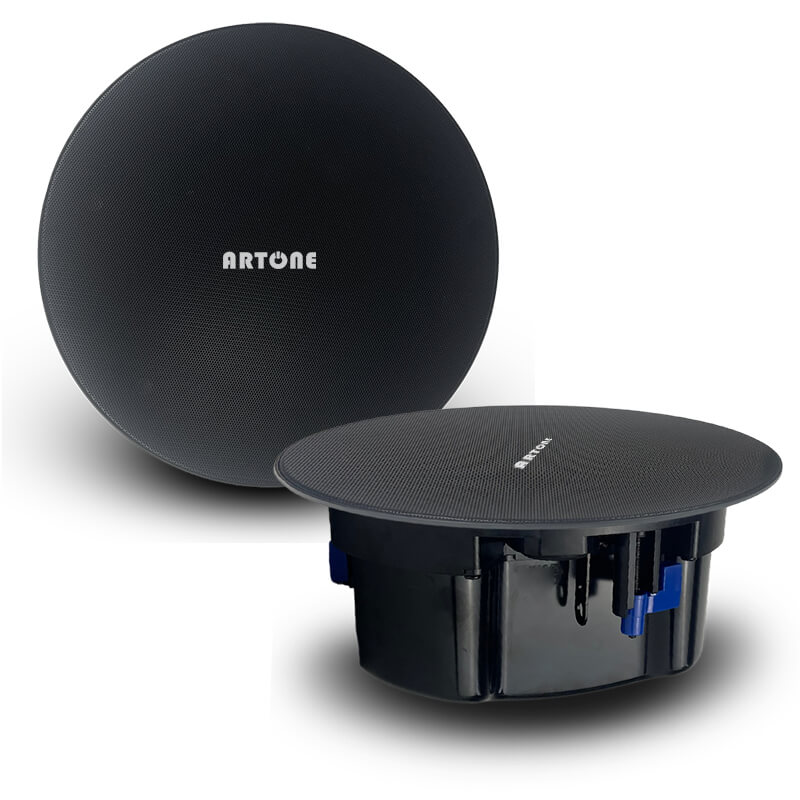

Multi-purpose Commercial Frameless Ceiling Speaker for Public Address and Fire Alarm Sound System CS-40H / CS-60H

The ceiling speaker CS-40H is high quality 2-way PA system with low profile design to apply as many commercial environment as possible. It is compatible with 70V/100V public address needs and low impedance 8 ohm for multimedia or meeting room applications.

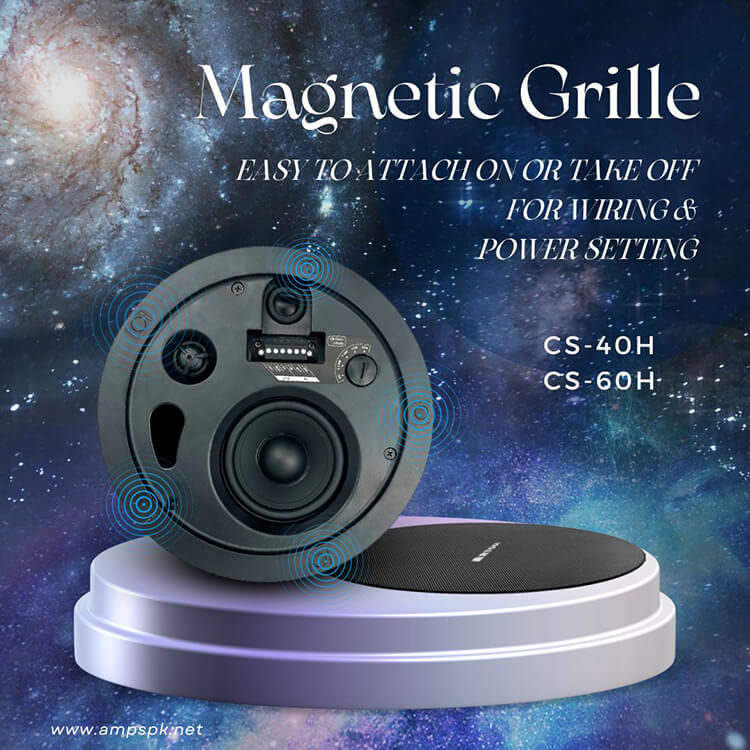

Fashion look of frameless grille, and magnetic attach to speaker makes CS-40H elegant ambient to entire decoration, and allows installer having convenient wiring or power/impedance adjustment work.

4'' full range speaker and 1'' tweeter produces nominal power at 30W, 15W/7.5W/3.75W is selectable from front of CS-40H's power tapping switch. Its handling power goes to max 80W. Special design scheme can prevent or avoid damage to speaker when connected incorrect, friendly to people DIY or amatuer in installation of sound system.

Features:

• - Excellent sound quality with 2-way speaker for public address system and commercial audio;
• - 4-inch full range woofer and 1-inch tweeter gives perfect audio reproduction and good for background music or speech;
• - Wide sound coverage 100°~110° and high SPL (sound pressure level) 88~108 dB;
• - High power 30W with handling power up to 80W, power tapping 30w/15w/7.5w/3.75w;
• - Compatible with 70v/100v and low impedance 8 ohm system;
• - Frameless magnetic speaker grille attach to surface;
• - 6-pin speaker cable connector at front side, easy for parallel and loop connection;
• - Special scheme design for protection of speaker wiring;
• - Plastic rear cover of ceiling speaker prevent damaged in long use, and increase bass with sound reflex;

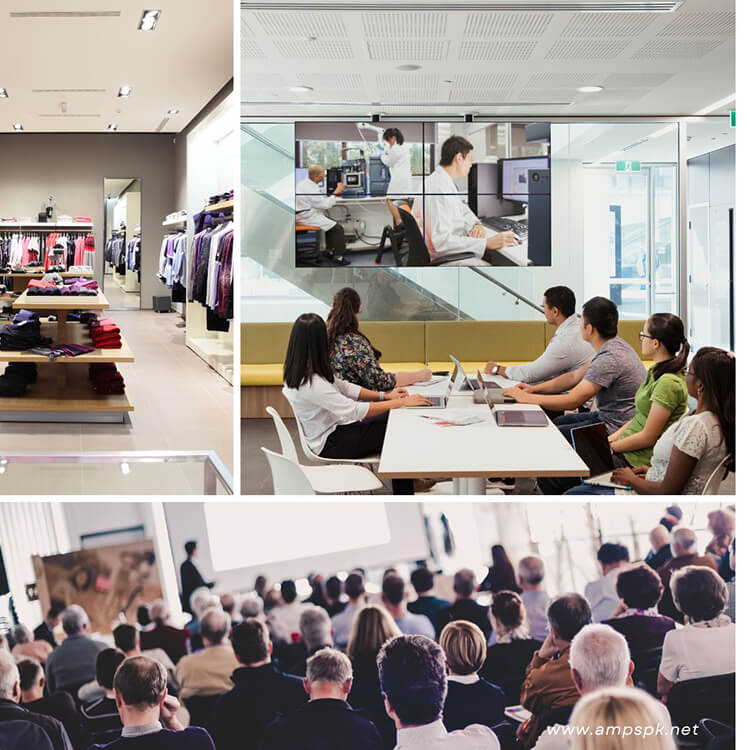

• - Ideal for school and classroom, restaurants and shops, building emergency EVAC system, fitness or gym stores, etc.
